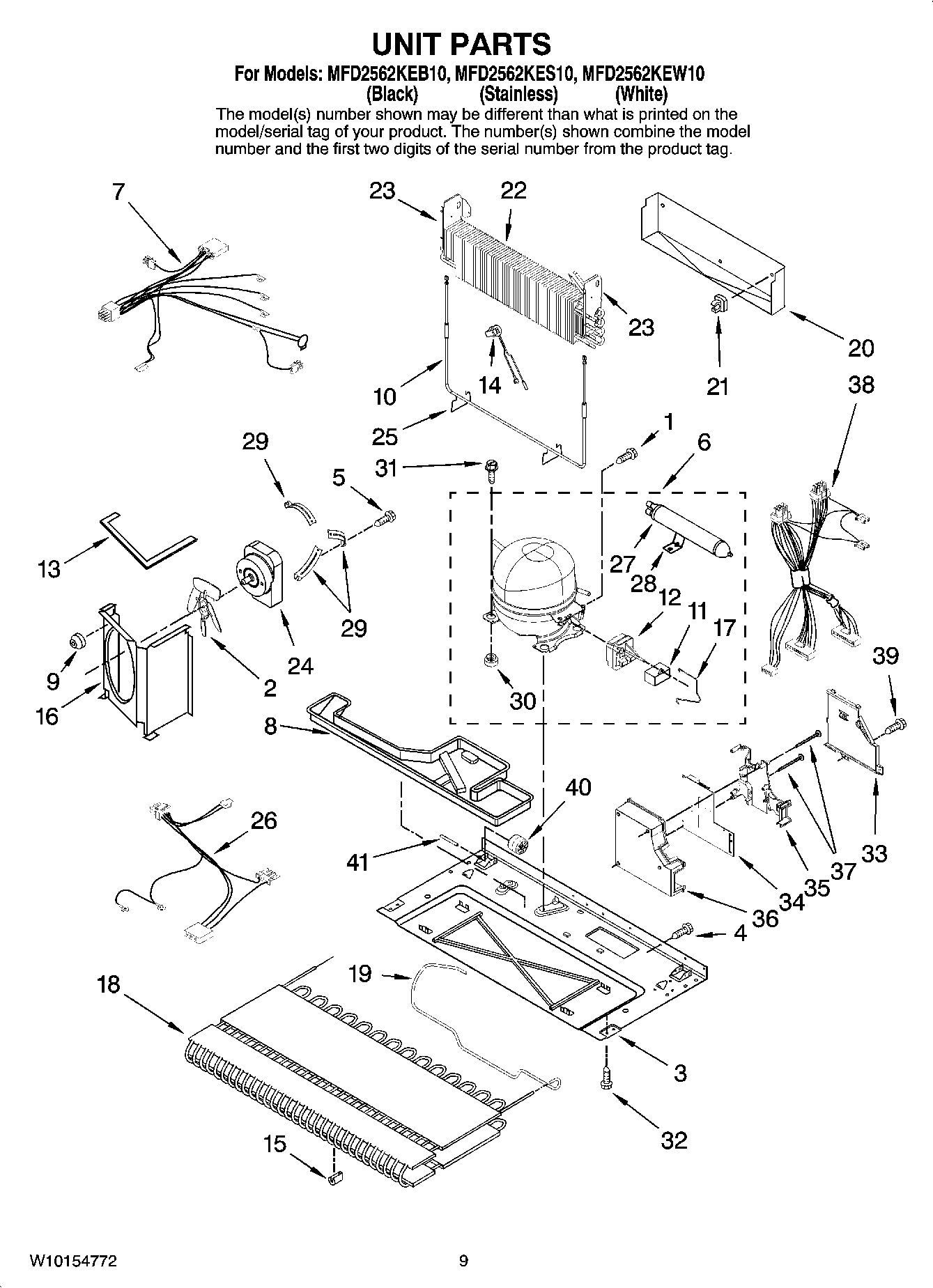

MFD2562KEB10 05 – UNIT PARTS

Products

Position	Product
1	MAY 67006433
2	W10156818 Whirlpool Refrigerator Fan Blade
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	W10160407 Whirlpool Refrigerator Compressor
7	MAY 67005574
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Capacitor
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	MAY 61003810
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Shroud, Condenser
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67004700
20	MAY 67002490
21	MAY 10623002
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	MAY 67001083
23	MAY 67001084
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	HARNESS, MC
27	DRIER
28	MAY 10547003
29	MAY 67004953
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	MAY 67006432
32	Screw (4)
33	MAY 67005421
34	MAY 12782025
35	MAY 67005418
36	MAY 67004969
37	MAY 67006550
38	67005419 Whirlpool Refrigerator HV Board Harness
39	MAY 67006615
41	Valve, Access (5/8``)
41	VALVE, ACCESS (1/4``)
41	Valve, Access (3/4``)
41	67006434 Whirlpool Axle Pin
41	Valve, Access (1/2``)
41	VALVE, ACCESS (3/8``)
41	Valve, Access (5/16``)
41	MAY 876764
