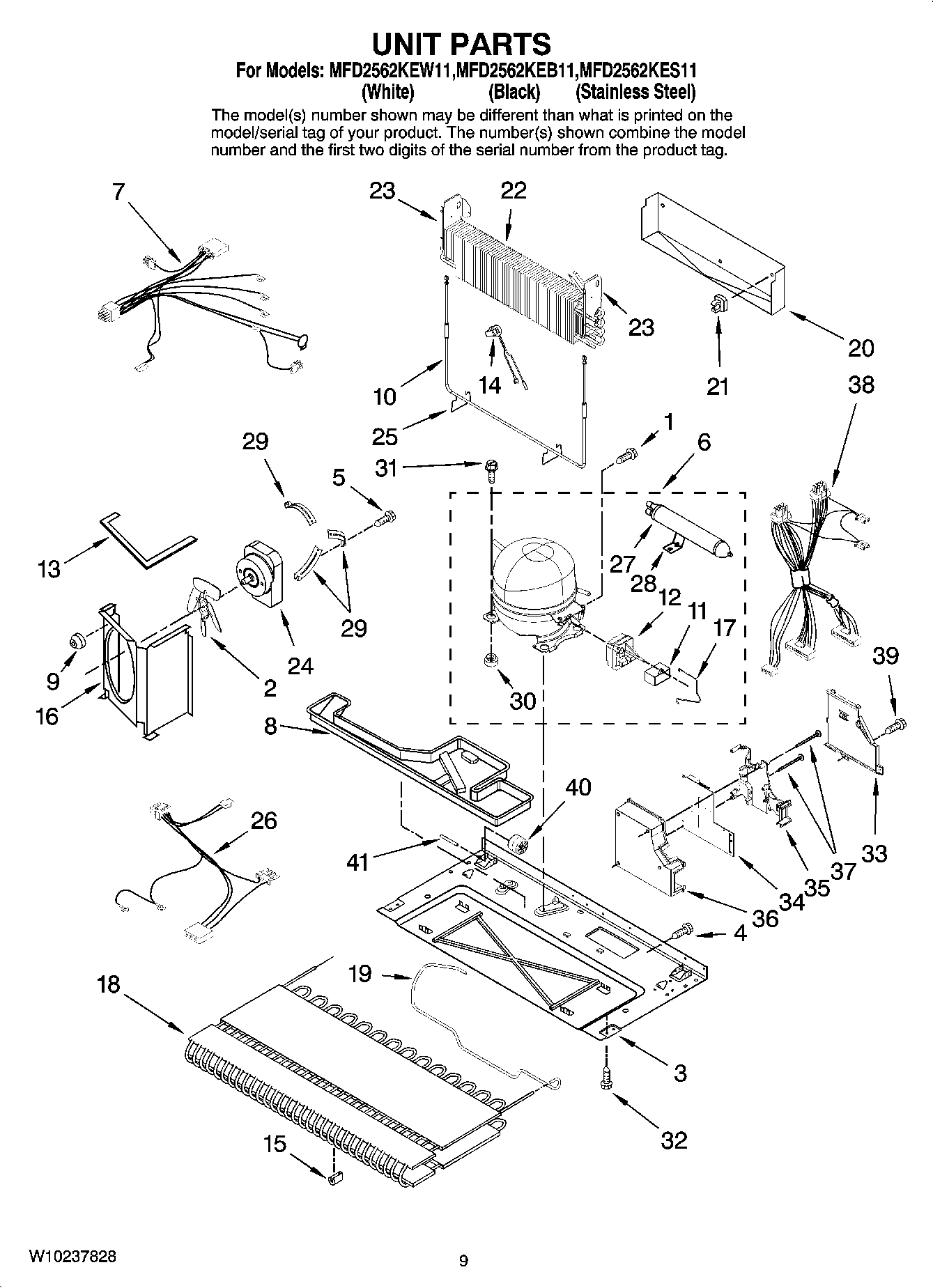

MFD2562KEB11 05 – UNIT PARTSadmin2025-04-26T09:08:54+00:00MFD2562KEB11 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | MAY 876764 |
| 1 | MAY 67006433 |
| 2 | MAY W10156818 |
| 3 | MAY 12457109 |
| 4 | Screw (10) |
| 5 | WP67004954 Whirlpool Refrigerator Screw |
| 6 | COMPRESSOR-TPG1370YXA(BM) |
| 7 | HARNESS, EVAP HEATER |
| 8 | Drain Pan |
| 9 | GROMMET, BRACKET |
| 10 | WP67002493 Whirlpool Refrigerator Defrost Heater |
| 11 | Capacitor |
| 12 | OVERLOAD/RELAY W/CAPACITOR |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | Thermostat |
| 15 | 67005680 Whirlpool Refrigerator Condenser Grommet |
| 16 | Shroud, Condenser |
| 17 | MAY 67007052 |
| 18 | MAY W10135026 |
| 19 | MAY W10183707 |
| 20 | MAY 67002490 |
| 21 | MAY 10623002 |
| 22 | 12002041 Whirlpool Refrigerator Evaporator Replacement Kit |
| 23 | MAY 67001083 |
| 23 | MAY 67001084 |
| 24 | MAY 67004432 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY 13060202 |
| 27 | Drier |
| 28 | MAY 10547003 |
| 29 | MAY 67004953 |
| 30 | MAY W10169124 |
| 31 | MAY 67006432 |
| 32 | Screw (4) |
| 33 | MAY 67005421 |
| 34 | Board, HV Control (Inc. Inst. Sheet) |
| 35 | MAY 67005418 |
| 36 | MAY 67004969 |
| 37 | MAY 67006550 |
| 38 | Harness, HV |
| 39 | MAY 67006615 |
| 40 | WP67005149 Whirlpool Roller |
| 41 | 67006434 Whirlpool Axle Pin |
