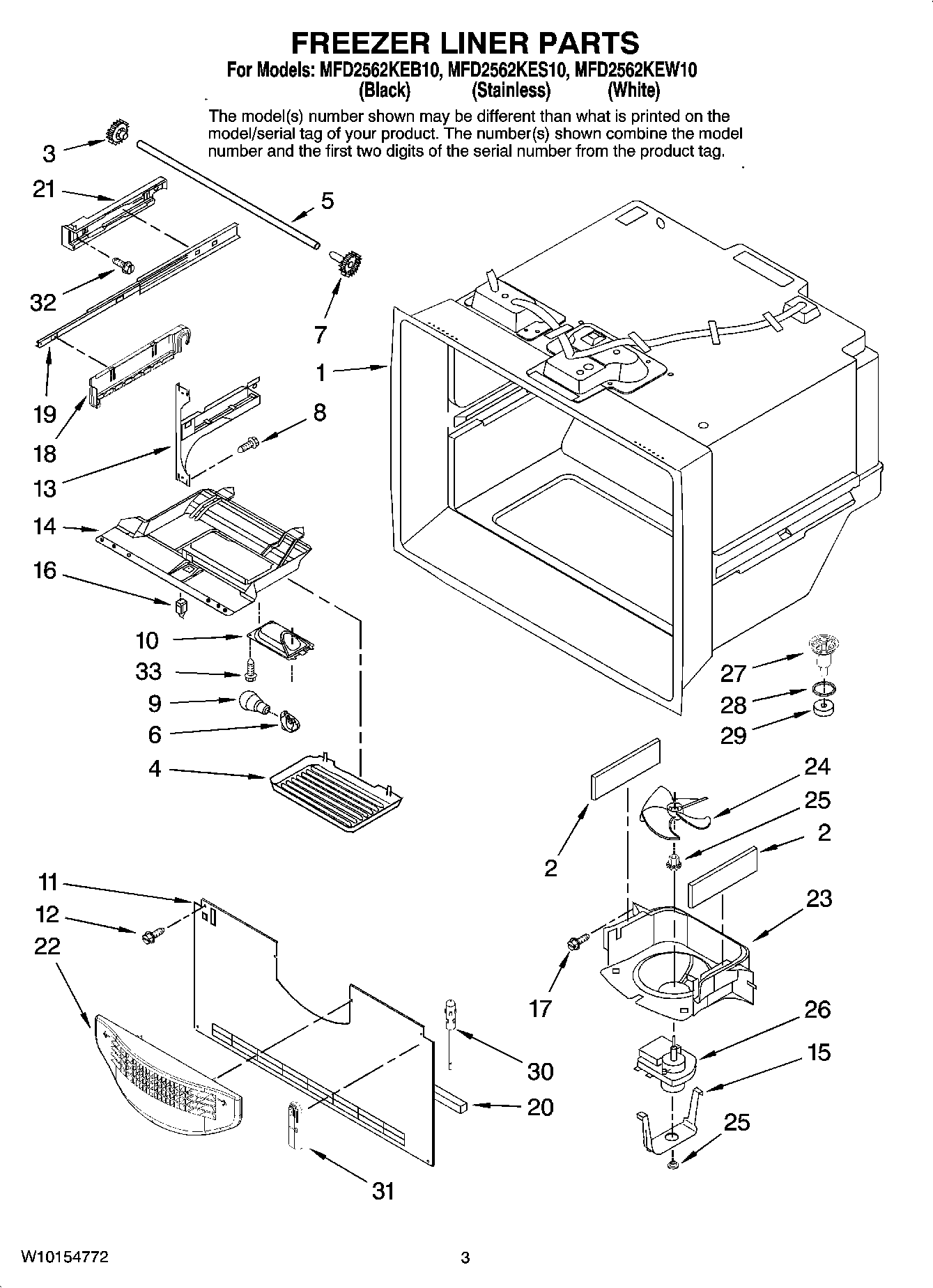

MFD2562KES10 02 – FREEZER LINER PARTS

MFD2562KES10 02 – FREEZER LINER PARTS

Written by

in

MFD2562KES10 02 – FREEZER LINER PARTS

Products

PositionProduct
2W10856123 Whirlpool Refrigerator Gasket
4MAY 67003905
5W11028221 Whirlpool Refrigerator Shaft
6Socket, Light (2)
712002497 Whirlpool Refrigerator Drawer Gear Kit
8Screw (8)
10MAY 67001035
11MAY 67005873
12Screw (10)
13BRACKET, DRAWER SLIDE (LT)
13BRACKET, DRAWER SLIDE (RT)
1467003906 Whirlpool Refrigerator Control Module
15MAY 67005633
16MAY 67005653
17WP98165 Whirlpool Screw
18WPW10280608 Whirlpool Refrigerator Bracket
18WPW10280613 Whirlpool Refrigerator Bracket
20W11159728 Whirlpool Refrigerator Gasket
21ADAPTER, SIDE (RT)
21ADAPTER, SIDE (LT)
22MAY 13024802
24MAY 12217201
25WP67002780 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27MAY D7753903
28MAY M0500703
29Gasket
3012002355 Whirlpool Refrigerator Thermistor Kit
31WP67003924 Whirlpool Refrigerator Cover
32Screw (6)
33MAY 67006094
