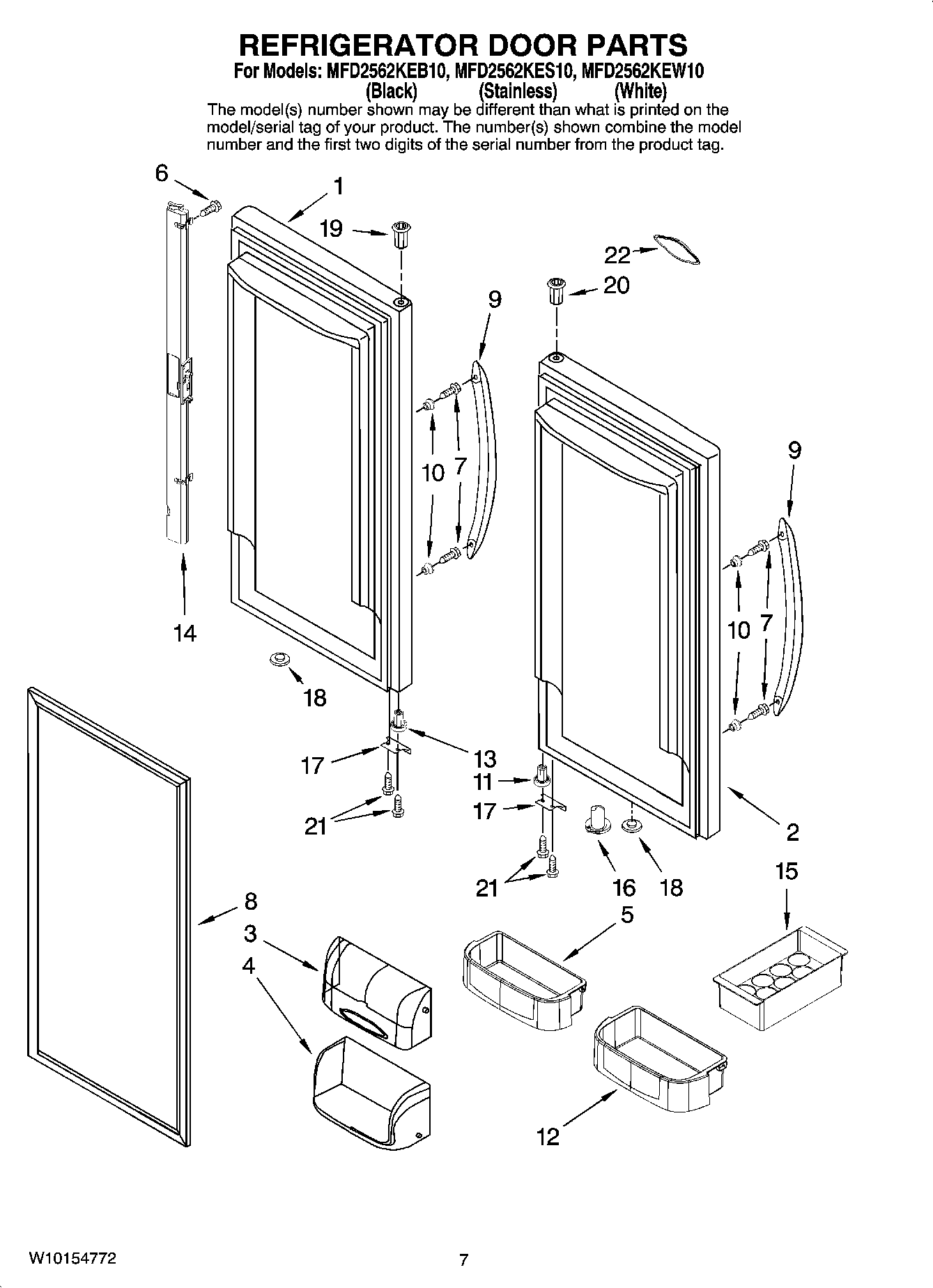

MFD2562KES10 04 – REFRIGERATOR DOOR PARTS

MFD2562KES10 04 – REFRIGERATOR DOOR PARTS

Written by

in

MFD2562KES10 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13024022B
1Door, Left (Stainless Steel)
1MAY 13024022W
2Door, Right (Stainless Steel)
2MAY 13024021W
2MAY 13024021B
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004040 Whirlpool Refrigerator Bucket Door
6MAY 67006786
7WP3387230 Whirlpool Screw
8MAY 12723206B
8Gasket, Door (2) (White)
913004701W Whirlpool Refrigerator Handle
9WP13004701B Whirlpool Refrigerator Handle
9W11690159 Whirlpool Handle
10WP67006113 Whirlpool Stud Bolt
11WP67002731 Whirlpool Refrigerator Door Bushing
1112028601W Whirlpool Refrigerator Hinge Bushing
12Bin, Shelf (2) (Gallon)
1367002722 Whirlpool Refrigerator White Door Bushing
13WP67002721 Whirlpool Refrigerator Door Bushing
14RAIL-MULLN WHITE
14WP12722803B Whirlpool Door Guide
15MAY 67215-2
16WP67003638 Whirlpool Closing Cam
16WP67003639 Whirlpool Refrigerator Closer
17W11708403 Whirlpool Door Stop
1810712401 Whirlpool Refrigerator Vent Plug (White)
1867004838 Whirlpool Refrigerator Button Vent Plug
19BUSHING, DOOR UPPER LEFT (WHITE)
19BUSHING, DOOR (BLK)
20WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2067004978 Whirlpool Refrigerator Black Door Bushing
21WP98165 Whirlpool Screw
222324038 Whirlpool Refrigerator Nameplate
