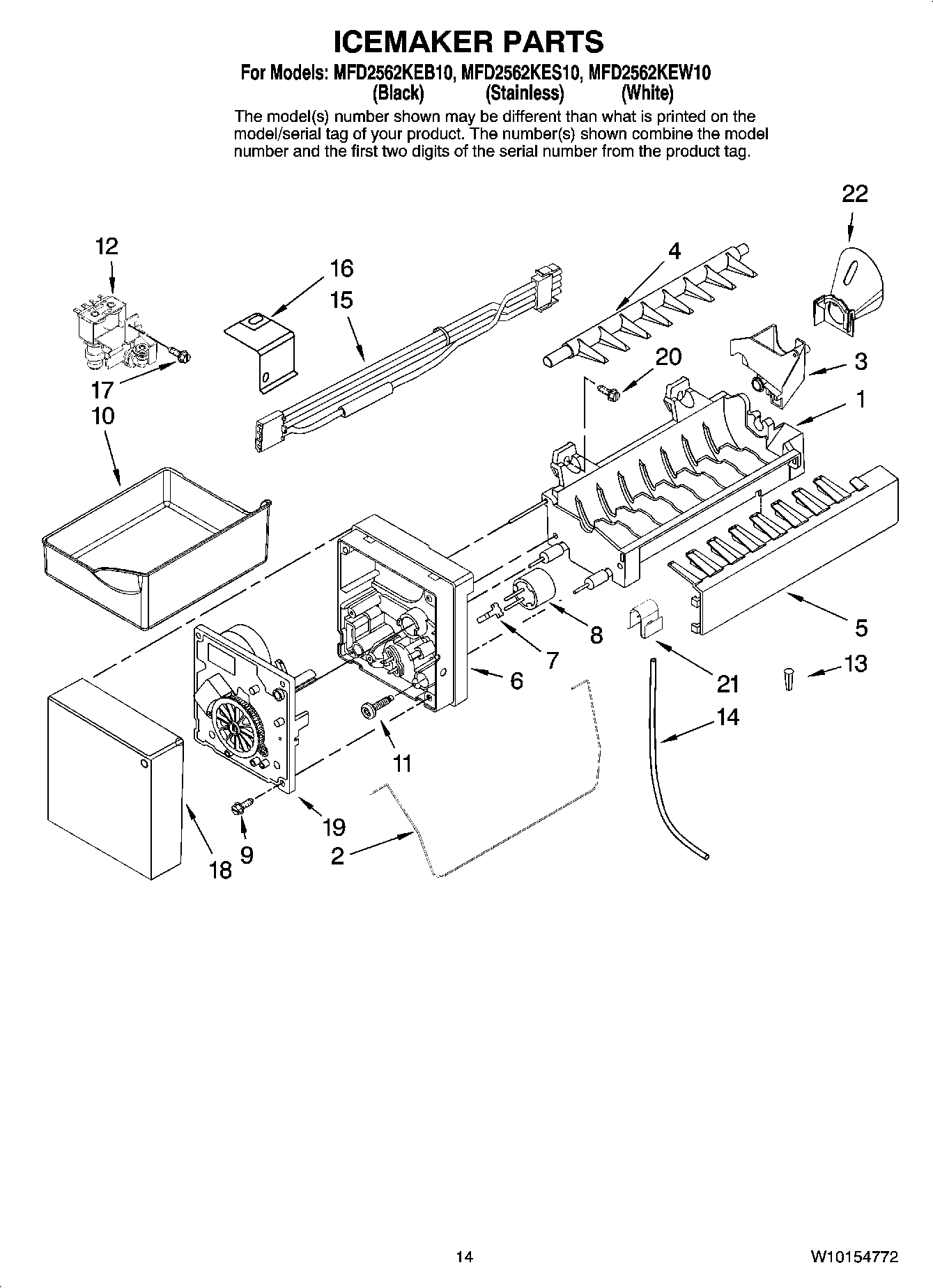

MFD2562KES10 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY YCH527
NI	MAY 876029
NI	PAINT, SPRAY (WHITE PRIMER)
NI	MAY 1117510
NI	SEALER, GUM (4 FEET)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	MAY 479502
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	MAY 505587
NI	MAY 542638
NI	MAY 542639
NI	MAY 606755
NI	Kit, Evaporator Repair (Aluminum Epoxy)
NI	MAY 833938
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	CLEANER, STAINLESS STEEL
NI	MAY 70061-2
NI	W11033771 Whirlpool Refrigerator Coupling
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	MAY 503695
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
1	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
2	ARM-SHUT
3	Cup, Fill
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	MAY 2194712
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	SCREW
10	WP67001255 Whirlpool Ice Bucket
11	MAY 8533917
12	WP67006531 Whirlpool Water Inlet Valve
13	MAY A3223101
14	Tubing, Plastic
15	HARNESS, ICEMAKER
16	WP2256087 Whirlpool Refrigerator Bracket
17	MAY 67006662
18	WPW10289690 Whirlpool Ice Maker Cover
20	WP98165 Whirlpool Screw
21	WP628379 Whirlpool Refrigerator Clip
22	MAY 67005603
100	Icemaker Assembly
