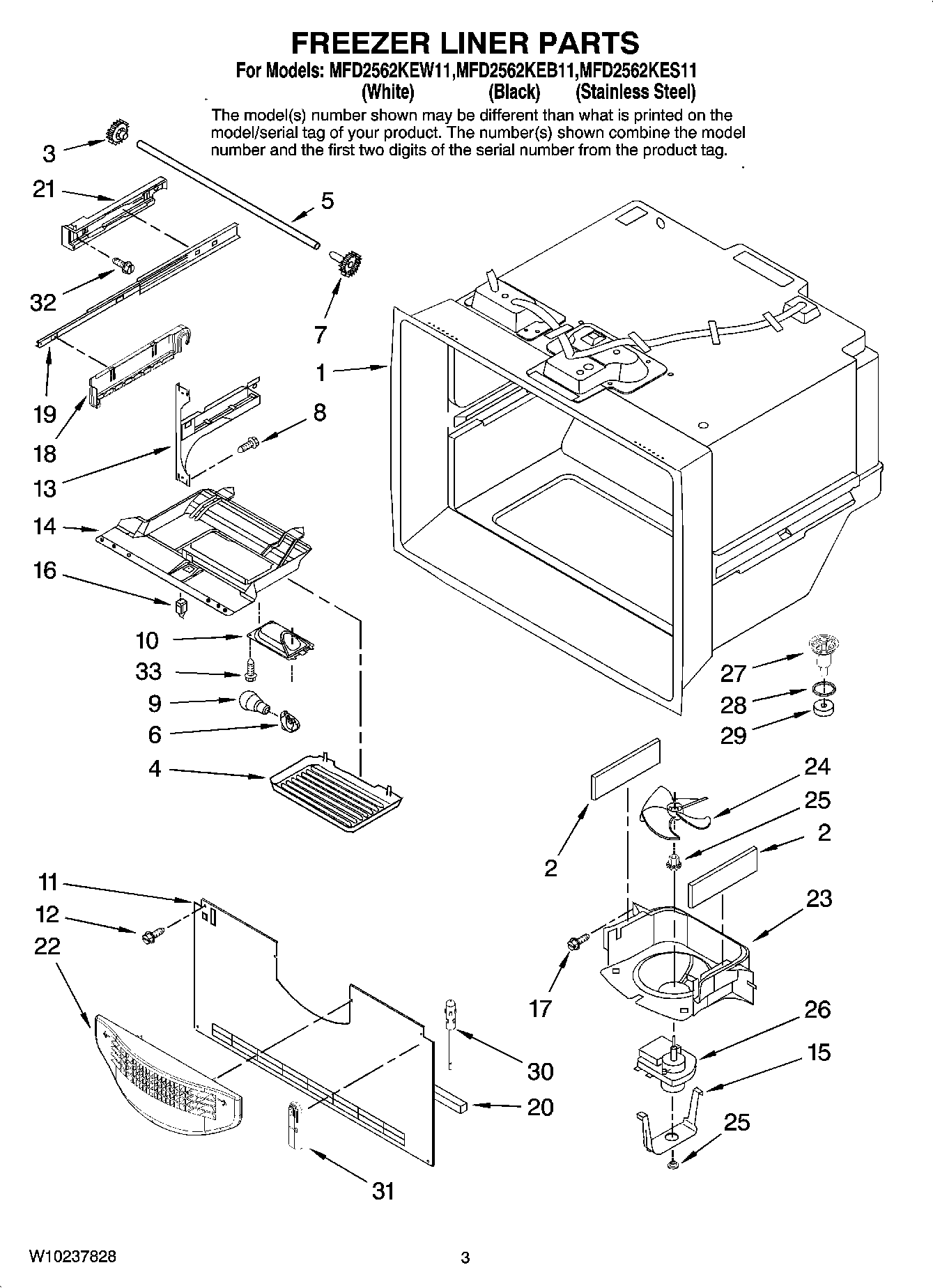

MFD2562KES11 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 67006095
2	Gasket, Bottom
4	MAY 67003905
5	W11028221 Whirlpool Refrigerator Shaft
6	Socket, Light (2)
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	MAY W10194422
10	MAY 67001035
11	MAY 67005873
12	Screw (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	67003906 Whirlpool Refrigerator Control Module
15	MAY 10623002
16	MAY 67005653
17	WP98165 Whirlpool Screw
18	Bracket, Basket (Right)
18	Bracket, Basket (Left)
19	MAY W10120018
20	W11159728 Whirlpool Refrigerator Gasket
21	MAY W10128118
21	MAY W10128119
22	MAY W10175909
23	SHROUD, EVAP FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	Screw (6)
33	MAY 67006530
