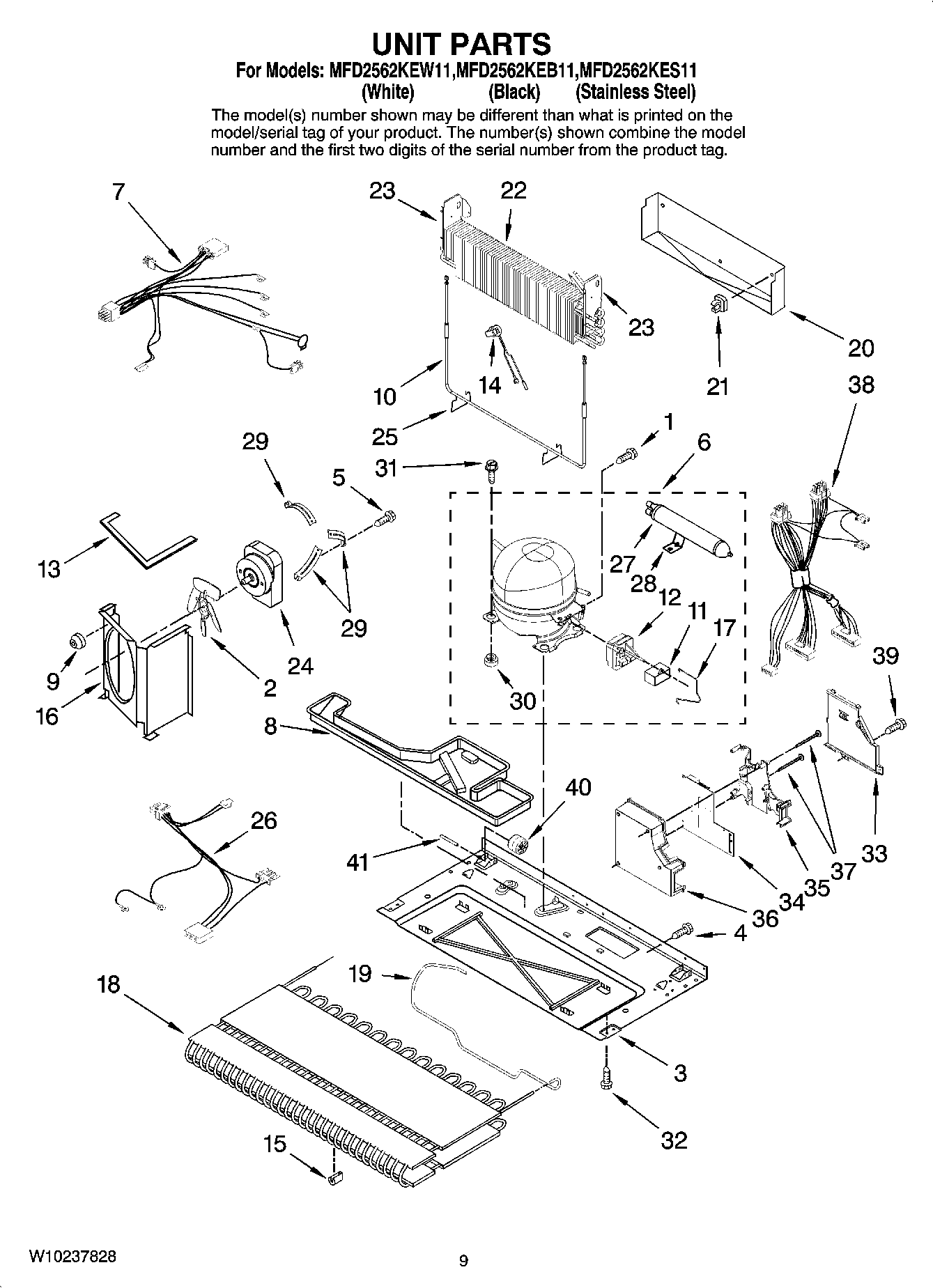

MFD2562KES11 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	MAY 876764
1	MAY 67006433
2	MAY W10156818
3	MAY 12457109
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	COMPRESSOR-TPG1370YXA(BM)
7	HARNESS, EVAP HEATER
8	Drain Pan
9	GROMMET, BRACKET
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Capacitor
12	OVERLOAD/RELAY W/CAPACITOR
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Shroud, Condenser
17	MAY 67007052
18	MAY W10135026
19	MAY W10183707
20	MAY 67002490
21	MAY 10623002
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	MAY 67001083
23	MAY 67001084
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	MAY 13060202
27	Drier
28	MAY 10547003
29	MAY 67004953
30	MAY W10169124
31	MAY 67006432
32	Screw (4)
33	MAY 67005421
34	Board, HV Control (Inc. Inst. Sheet)
35	MAY 67005418
36	MAY 67004969
37	MAY 67006550
38	Harness, HV
39	MAY 67006615
40	WP67005149 Whirlpool Roller
41	67006434 Whirlpool Axle Pin
