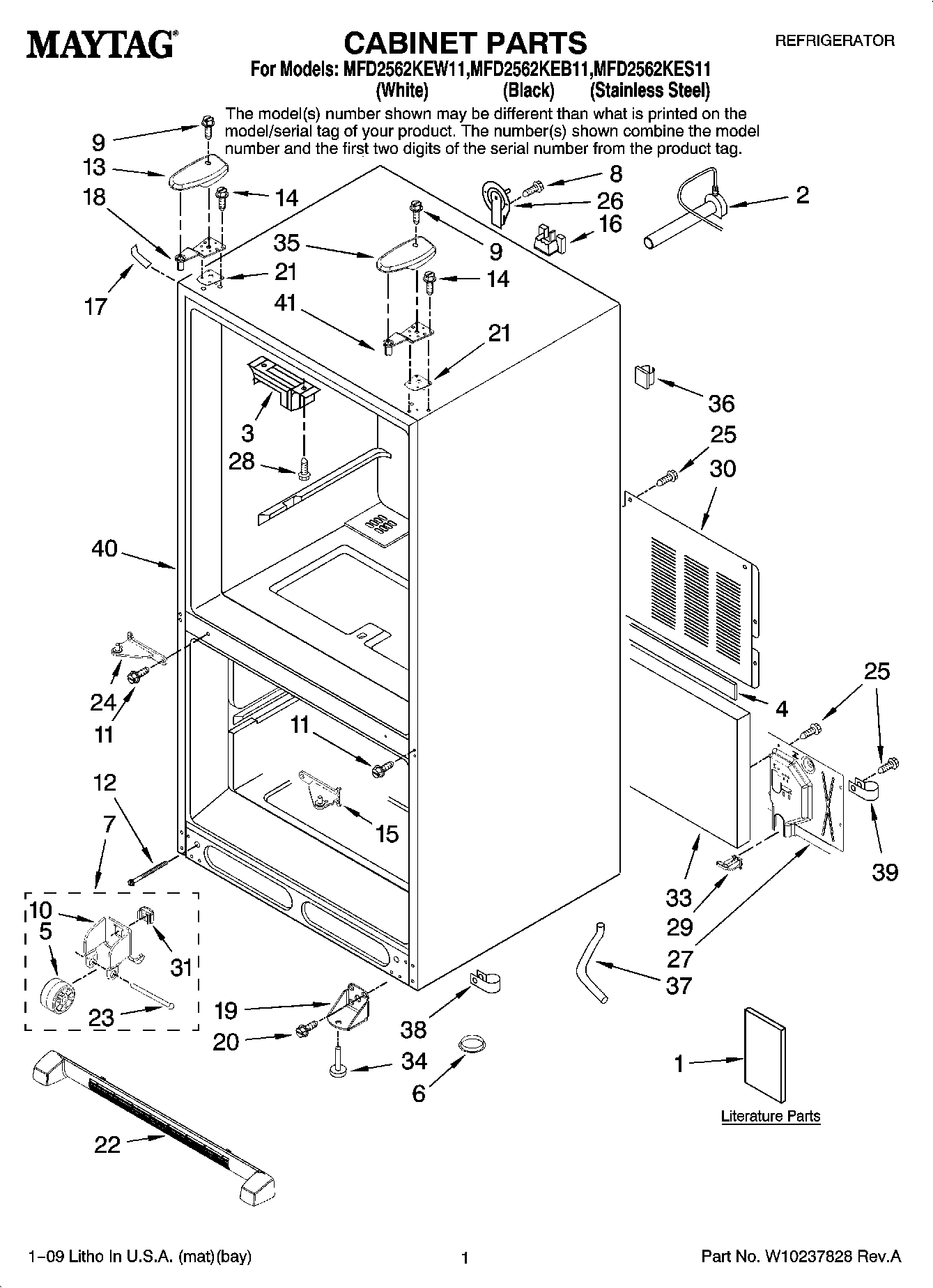

MFD2562KEW11 01 – CABINET PARTS

Products

Position	Product
1	MAY 67006616
1	Owners Manual
1	MAY W10183253
2	MAY W10137519
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	WP10450603 Whirlpool Refrigerator Roller
6	A3076901 Whirlpool Refrigerator Plug
7	ROLLER ASSY.(REAR)
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	MAY 12684201W
13	MAY 12684201B
14	WP489349 Whirlpool Refrigerator Screw
15	W10918168 Whirlpool Refrigerator Door Hinge
15	MAY 67006379
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	MAY 12566607ED
19	Bracket, Foot
20	MAY 67006564
21	MAY 12579702
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	MAY M1205302
24	W10918113 Whirlpool Refrigerator Door Hinge
24	W10918164 Whirlpool Refrigerator Door Hinge
25	Screw (10)
26	COVER, WATER LINE
27	MAY 12751509
28	WP7101P126-60 Whirlpool Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	MAY 67006102
31	MAY M0286708
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	MAY 12684202W
35	MAY 12684202B
36	WPM0104106 Whirlpool Refrigerator Clip
37	MAY W10164397
38	MAY W10157973
39	W10833902 Whirlpool Refrigerator Clamp
41	MAY 12566606ED
