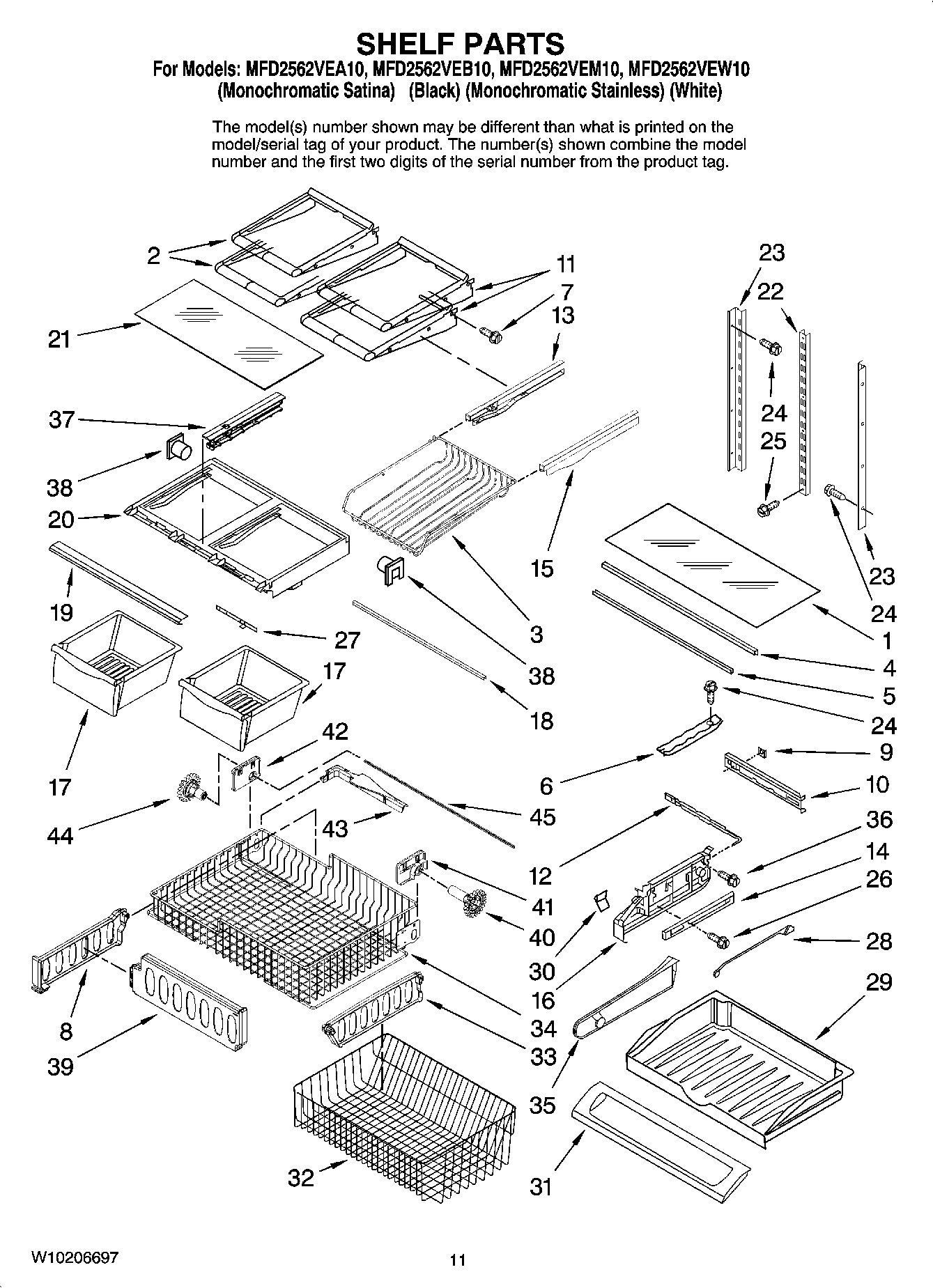

MFD2562VEA10 06 – SHELF PARTS

Products

Position	Product
1	MAY 67002761
2	MAY W10208663
3	RACK, CAN
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	SCREW
8	Divider, Upper Basket
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	MAY 67005625
11	Shelf, Stat (2)
12	MAY 67003793
13	WP67001054 Whirlpool Left Glide
14	Glide, Drawer(2)
15	WP67001053 Whirlpool Drawer Glide
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	WP67004515 Whirlpool Crisper Drawer
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	WPW10231345 Whirlpool Refrigerator Shelf Trim
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	67001073 Whirlpool Refrigerator Center Ladder
23	67002489 Whirlpool Refrigerator Ladder L/R Side
24	MAY 67006400
25	W10709795 Whirlpool Refrigerator Screw
26	Screw (2)
27	MAY 67005864
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32	Basket, Freezer (Lower)
33	Divider, Lower Basket
34	MAY W10169949
35	WP67002759 Whirlpool Refrigerator Divider
36	WP98165 Whirlpool Screw
37	WPW10326469 Whirlpool Drawer Slide Rail
38	WP12603701 Whirlpool Refrigerator Support
39	MAY W10171558
40	MAY W10146446
41	Mount, RH Gear
42	Mount, LH Gear
43	MAY W10149389
44	MAY W10158749
45	MAY W10199044
