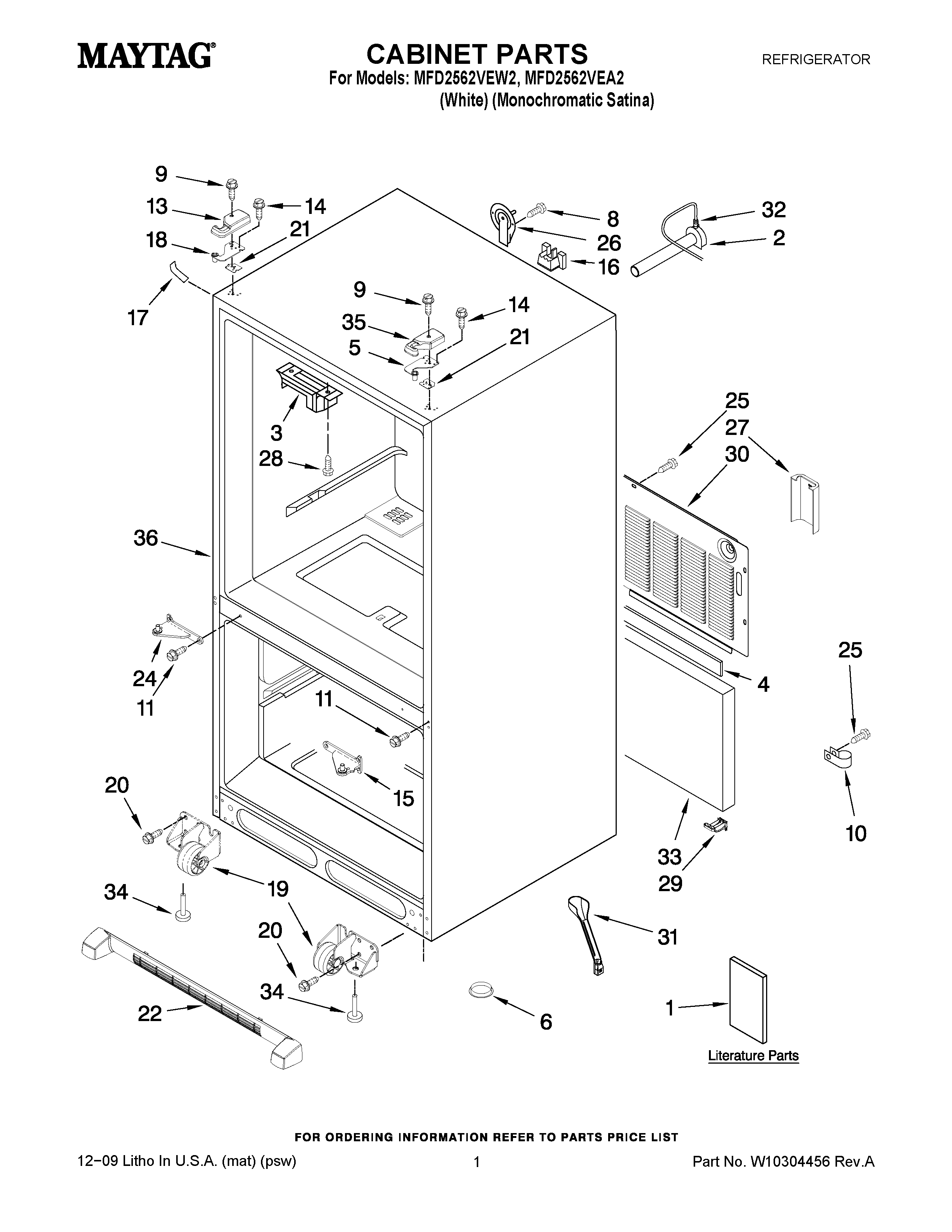

MFD2562VEA2 01 – CABINET PARTSadmin2025-04-26T09:08:01+00:00MFD2562VEA2 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10279334 |
| 1 | Owners Manual |
| 1 | MAY W10187813 |
| 2 | MAY 10463203SP |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY 12963205ED |
| 6 | A3076901 Whirlpool Refrigerator Plug |
| 8 | MAY 12990504 |
| 9 | MAY 12992602 |
| 10 | CLAMP, TUBE |
| 11 | SCREW (6) |
| 13 | Cover, Left Hinge (Apollo Grey) |
| 13 | Cover, Left Hinge (White) |
| 14 | SCREW (6) |
| 15 | Hinge, Center (RT) (White) |
| 15 | HINGE, CENTER (RT) (GREY) |
| 16 | MAY 12777701 |
| 17 | COVER, CORNER (GREY) |
| 17 | Cover, Corner (2) (White) |
| 18 | MAY 12963204ED |
| 19 | ROLLER ASSY. (FRONT) (LEFT) |
| 19 | ROLLER ASSY. (FRONT) (RIGHT) |
| 20 | Screw (8) |
| 21 | MAY 12999501 |
| 21 | MAY 12999502 |
| 22 | GRILLE, TOE (GREY) |
| 22 | MAY W10244559 |
| 24 | HINGE, CENTER (LT) (GREY) |
| 24 | Hinge, Center (LT) (White) |
| 25 | SCREW (10) |
| 26 | MAY 12726003 |
| 27 | GUARD-WATER VALVE |
| 28 | SCREW (2) |
| 29 | MAY 12831101 |
| 30 | MAY W10211855 |
| 31 | MAY W10210988 |
| 32 | CLIP |
| 33 | Insulation, Sound |
| 34 | Foot Brake (2) |
| 35 | MAY 12962302W |
| 35 | MAY 12962302AP |
| 36 | LINER (NOT A SERVICEABLE PART) |
