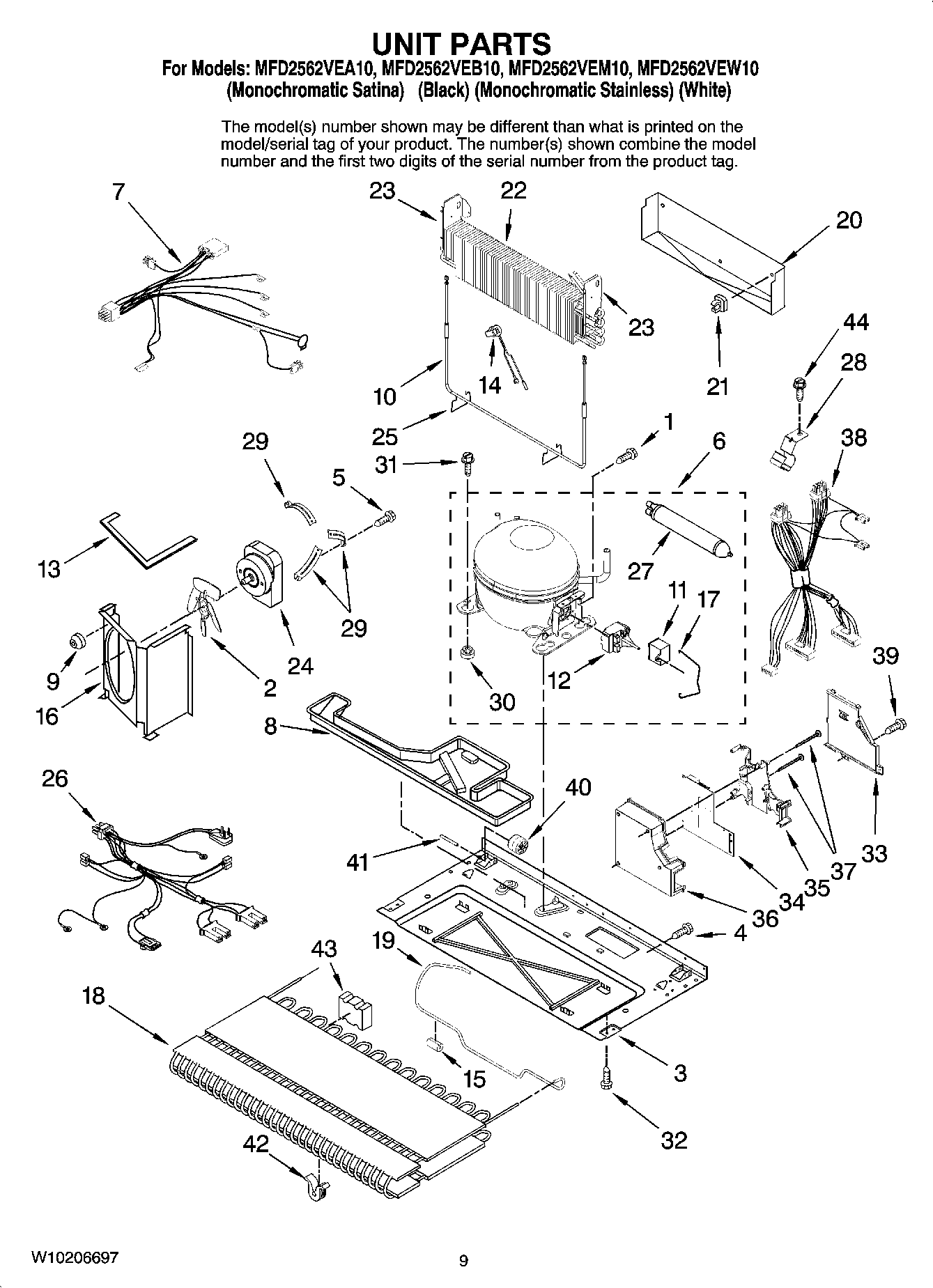

MFD2562VEB10 05 – UNIT PARTS

Products

Position	Product
	MAY 876764
	Valve, Access (5/16“)
	VALVE, ACCESS (3/8“)
	Valve, Access (1/2“)
	Valve, Access (5/8“)
	Valve, Access (3/4“)
	VALVE, ACCESS (1/4“)
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	Compressor (Includes items 11,12,17,27,29)
7	MAY W10171661
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Capacitator (Production)
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Shroud, Condenser
17	MAY 2255199
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY W10134293
20	MAY 67002490
21	MAY 10623002
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23A	MAY 67001083
23	MAY 67001084
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	MAY 13060202
27	Drier
28	MAY 10547003
29	MAY 67004953
30	MAY W10169124
31	MAY 67006432
32	Screw (4)
33	MAY 67005421
34	Board, HV Control (Inc. Inst. Sheet)
35	SPACER, HV BOX
36	BOX, HV CONTROL
37	MAY 67006550
38	Harness, HV
39	MAY 67006615
40	WP67005149 Whirlpool Roller
41	67006434 Whirlpool Axle Pin
42	GROMMET, COND (4)
43	MAY 67005491
44	SCREW
