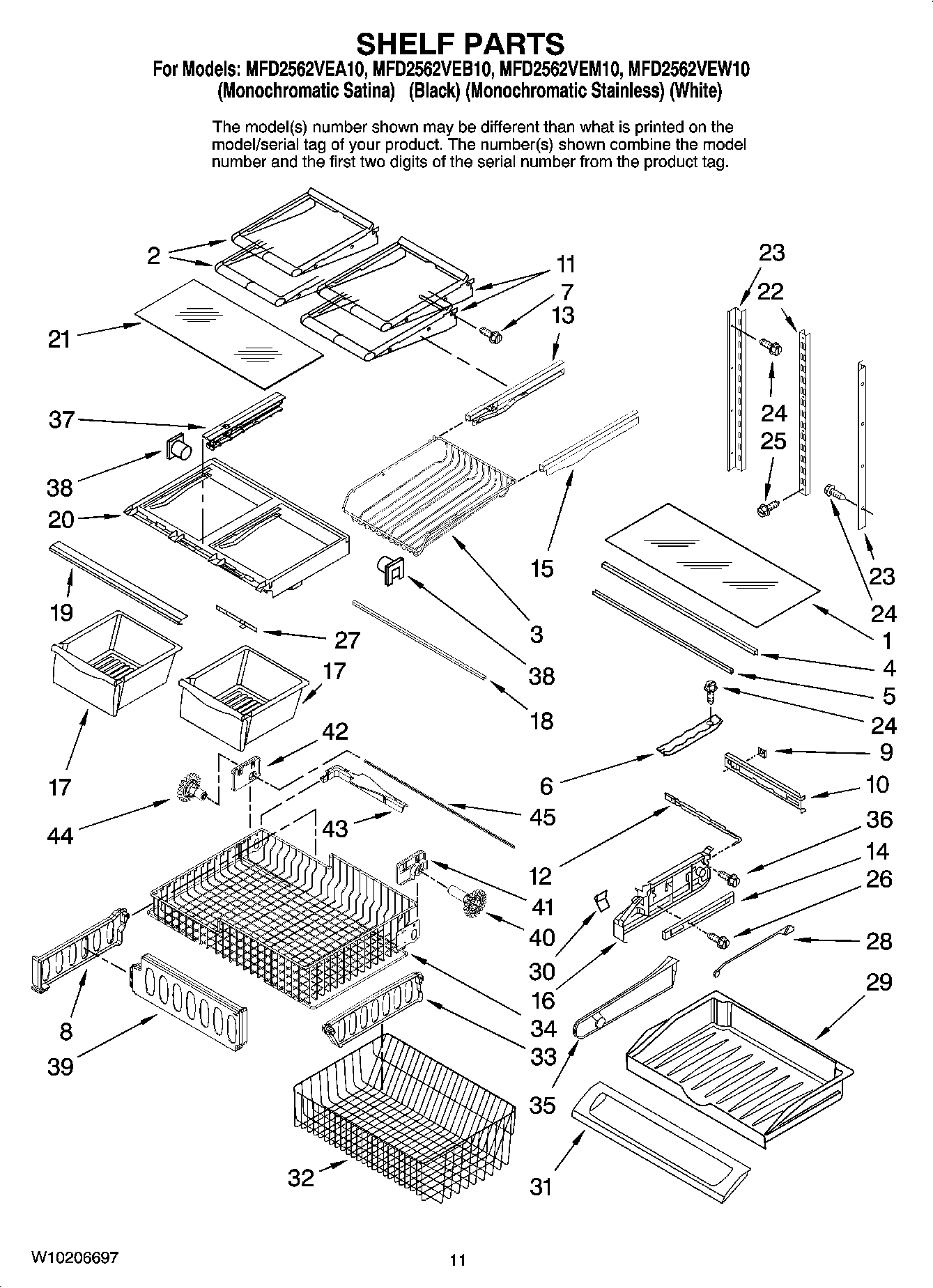

MFD2562VEB10 06 – SHELF PARTS

MFD2562VEB10 06 – SHELF PARTS

Written by

in

MFD2562VEB10 06 – SHELF PARTS

Products

PositionProduct
1MAY 67002761
2MAY W10208663
3RACK, CAN
4WP67006010 Whirlpool Refrigerator Shelf Trim
5WP12227305WD Whirlpool Drawer Support
6WP67001719 Whirlpool Refrigerator Track
7SCREW
8Divider, Upper Basket
967002329 Whirlpool Refrigerator Pantry Gasket
10MAY 67005625
11Shelf, Stat (2)
12MAY 67003793
13WP67001054 Whirlpool Left Glide
14Glide, Drawer(2)
15WP67001053 Whirlpool Drawer Glide
16W10874836 Whirlpool Endcap Assembly Left Hand and Right
17WP67004515 Whirlpool Crisper Drawer
18WP12642303WD Whirlpool Refrigerator Drawer Support
19WPW10231345 Whirlpool Refrigerator Shelf Trim
20WP67003854 Whirlpool Shelf Frame
21WP67006704 Whirlpool Glass Crisper Cover
2267001073 Whirlpool Refrigerator Center Ladder
2367002489 Whirlpool Refrigerator Ladder L/R Side
24MAY 67006400
25W10709795 Whirlpool Refrigerator Screw
26Screw (2)
27MAY 67005864
28WP67003795 Whirlpool Refrigerator Temperature Control Bar
29WP67003531 Whirlpool Drawer Assembly
30W11498983 Whirlpool Refrigerator Knob
31W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32Basket, Freezer (Lower)
33Divider, Lower Basket
34MAY W10169949
35WP67002759 Whirlpool Refrigerator Divider
36WP98165 Whirlpool Screw
37WPW10326469 Whirlpool Drawer Slide Rail
38WP12603701 Whirlpool Refrigerator Support
39MAY W10171558
40MAY W10146446
41Mount, RH Gear
42Mount, LH Gear
43MAY W10149389
44MAY W10158749
45MAY W10199044
