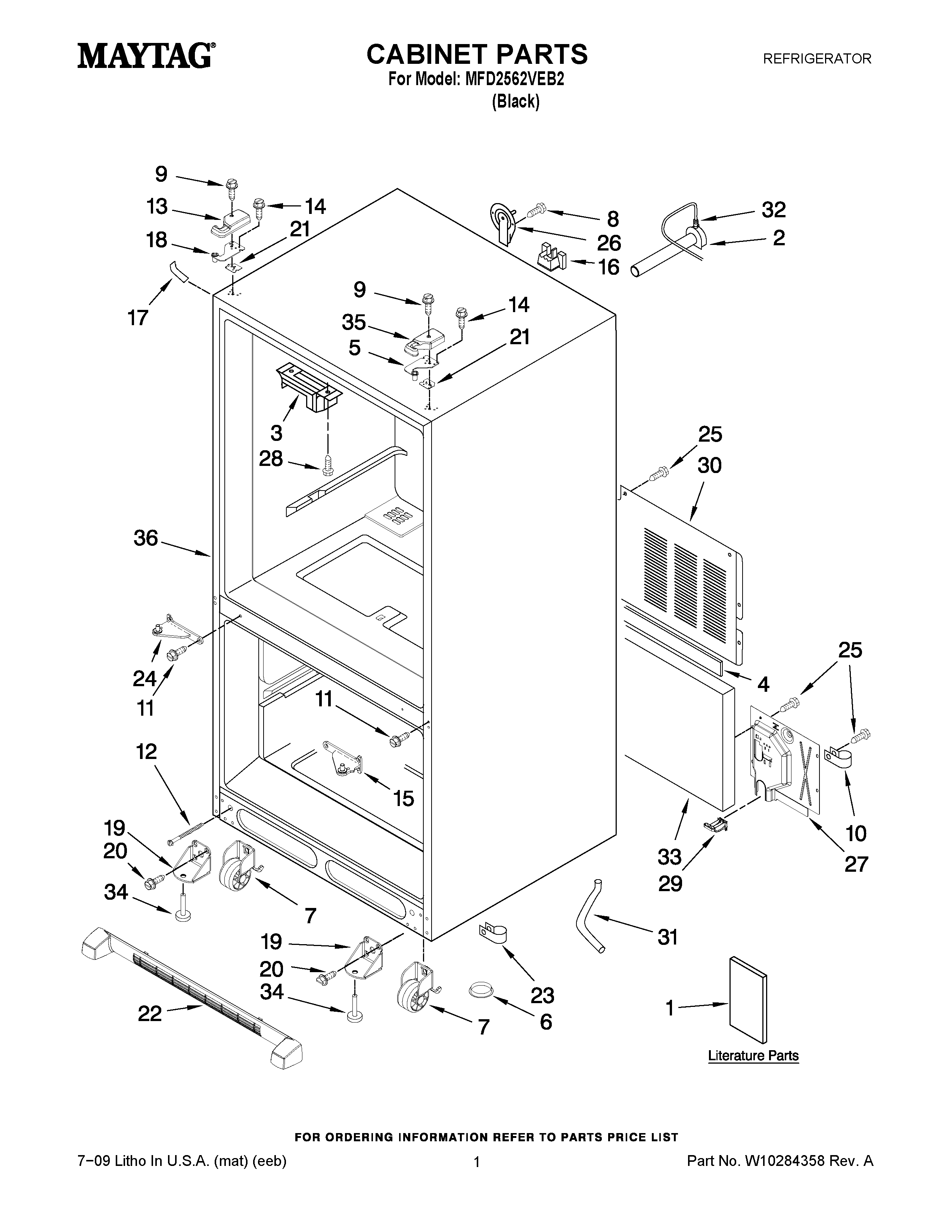

MFD2562VEB2 01 – CABINET PARTS

Written by

Products

Position	Product
1	MAY 12827968
1	Owners Manual
1	MAY W10187813
2	MAY 10463203SP
3	Block, Pivot
4	Gasket
5	MAY 12963205ED
6	A3076901 Whirlpool Refrigerator Plug
7	ROLLER ASSY.(REAR)
8	MAY 12990504
9	MAY 12992602
10	W10833902 Whirlpool Refrigerator Clamp
11	SCREW (6)
12	Bolt, Adjusting (Rear)
13	MAY 12962301B
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	Bracket, Foot
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY W10157973
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW (10)
26	MAY 12726003
27	MAY 12751509
28	SCREW (2)
29	MAY 12831101
30	MAY 12575101
31	MAY W10164397
32	CLIP
33	INSULATION, SOUND
34	Foot Brake (2)
35	MAY 12962302B
36	LINER (NOT A SERVICEABLE PART)
