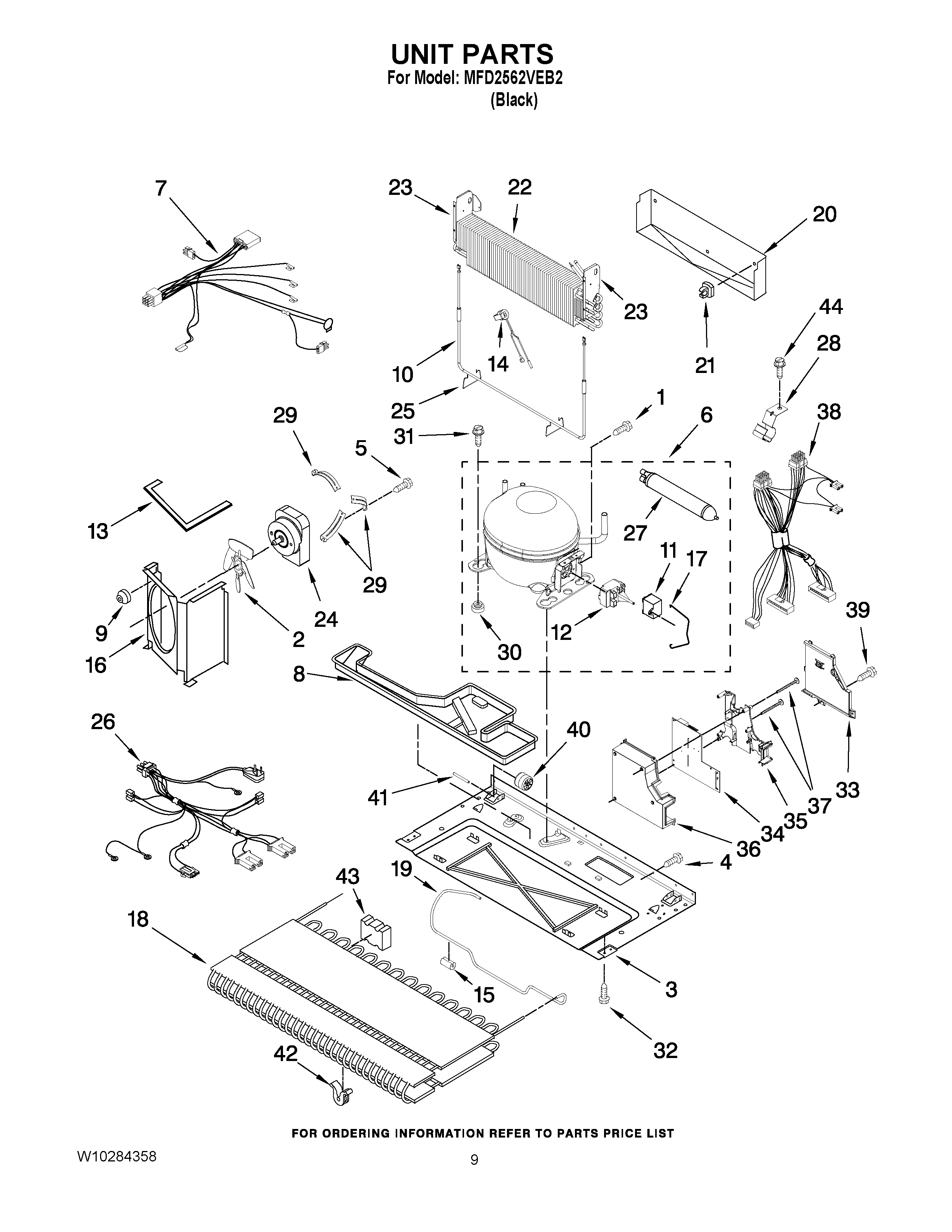

MFD2562VEB2 05 – UNIT PARTSadmin2025-04-26T09:08:34+00:00MFD2562VEB2 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| 1 | MAY 12992301 |
| 2 | Fan, Blade |
| 3 | MAY 12457109 |
| 4 | SCREW (10) |
| 5 | Screw (3) |
| 6 | Compressor (Includes items 11,12,17,27,29) |
| 7 | MAY W10171661 |
| 8 | Drain Pan |
| 9 | GROMMET, BRACKET |
| 10 | MAY 12729105 |
| 11 | Capacitator (Production) |
| 12 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | Thermostat |
| 15 | GROMMET (2) |
| 16 | Shroud, Condenser |
| 17 | Clip, Retaining |
| 18 | MAY W10135026 |
| 19 | MAY W10183708 |
| 20 | MAY 12225403WD |
| 21 | MAY 10623002 |
| 22 | 12002041 Whirlpool Refrigerator Evaporator Replacement Kit |
| 23 | MAY 12225601 |
| 23 | MAY 12225701 |
| 24 | MAY 12825101 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY 13060202 |
| 27 | Drier |
| 28 | MAY 10547003 |
| 29 | BRACKET, FAN MOTOR |
| 30 | Grommet (4) |
| 31 | Screw (2) |
| 32 | MAY 12992101 |
| 33 | MAY 12889302 |
| 34 | BOARD, HV CONTROL (INC. INST. SHEET) |
| 35 | MAY 12889501SP |
| 36 | MAY 12889401SP |
| 37 | MAY 12990304SP |
| 38 | MAY 12972902SP |
| 39 | MAY 12990502 |
| 40 | Roller (2) |
| 41 | Axle, Roller (2) |
| 42 | GROMMET, COND (4) |
| 43 | MAY 12933001 |
| 44 | MAY 12990701 |
