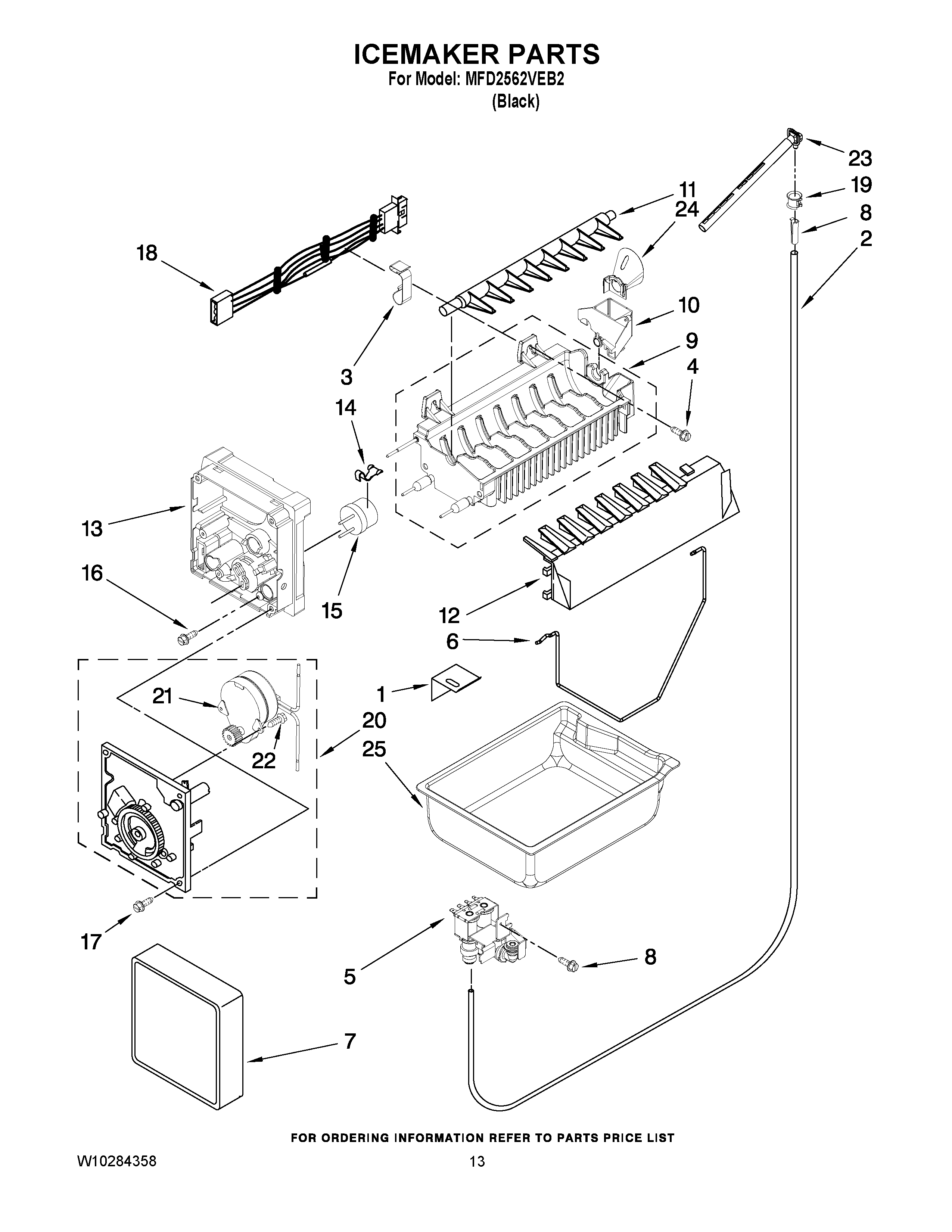

MFD2562VEB2 07 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 10244904SP
1	MAY 2256086
2	TUBING, PLASTIC
3	CLAMP, WIRE
4	MAY 489276
5	VALVE, WATER
6	ARM, SHUTOFF
7	Cover
8	MAY A3223101SP
9	MAY W10122527
10	Cup, Fill
11	MAY 627843
12	MAY 2182124
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	Screw (3)
18	MAY D7813011
19	CLIP
20	Module Assembly (Includes Items 21& 22)
21	MODULE ASSEMBLY (INCLUDES ITEM 24)
22	MAY 489136
23	MAY 10463203SP
24	MAY 12918001
25	MAY W10171529
100	ICEMAKER ASSEMBLY (COMPLETE)
