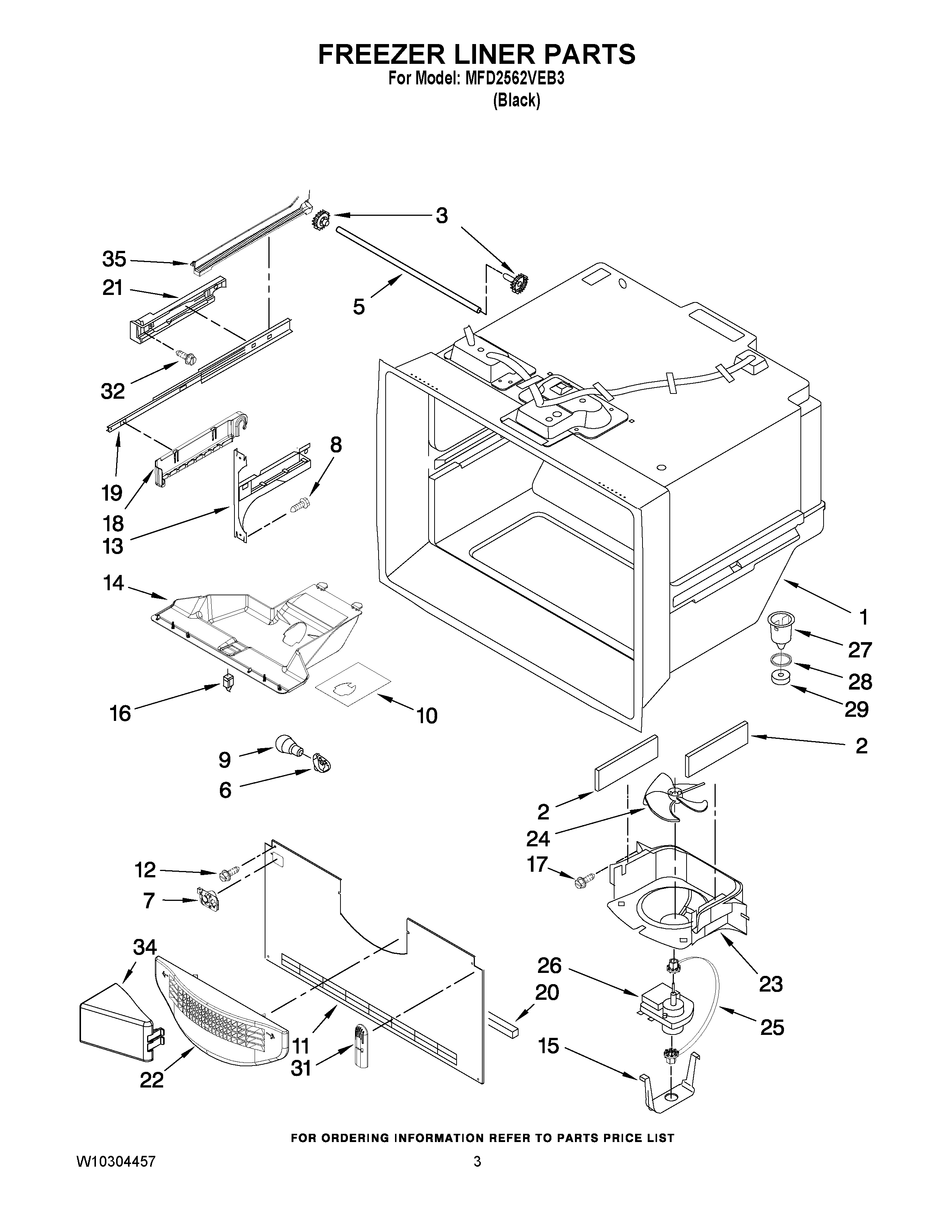

MFD2562VEB3 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5SHAFT
6Socket, Light
7MAY 12932103
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226112
12SCREW (10)
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12990504
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20GASKET, BOTTOM
21MAY W10149390
21MAY W10149391
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10150583
26MAY 13062901
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
34MAY W10157765
35RACK-SIDE (RIGHT)
35RACK-SIDE (LEFT)
