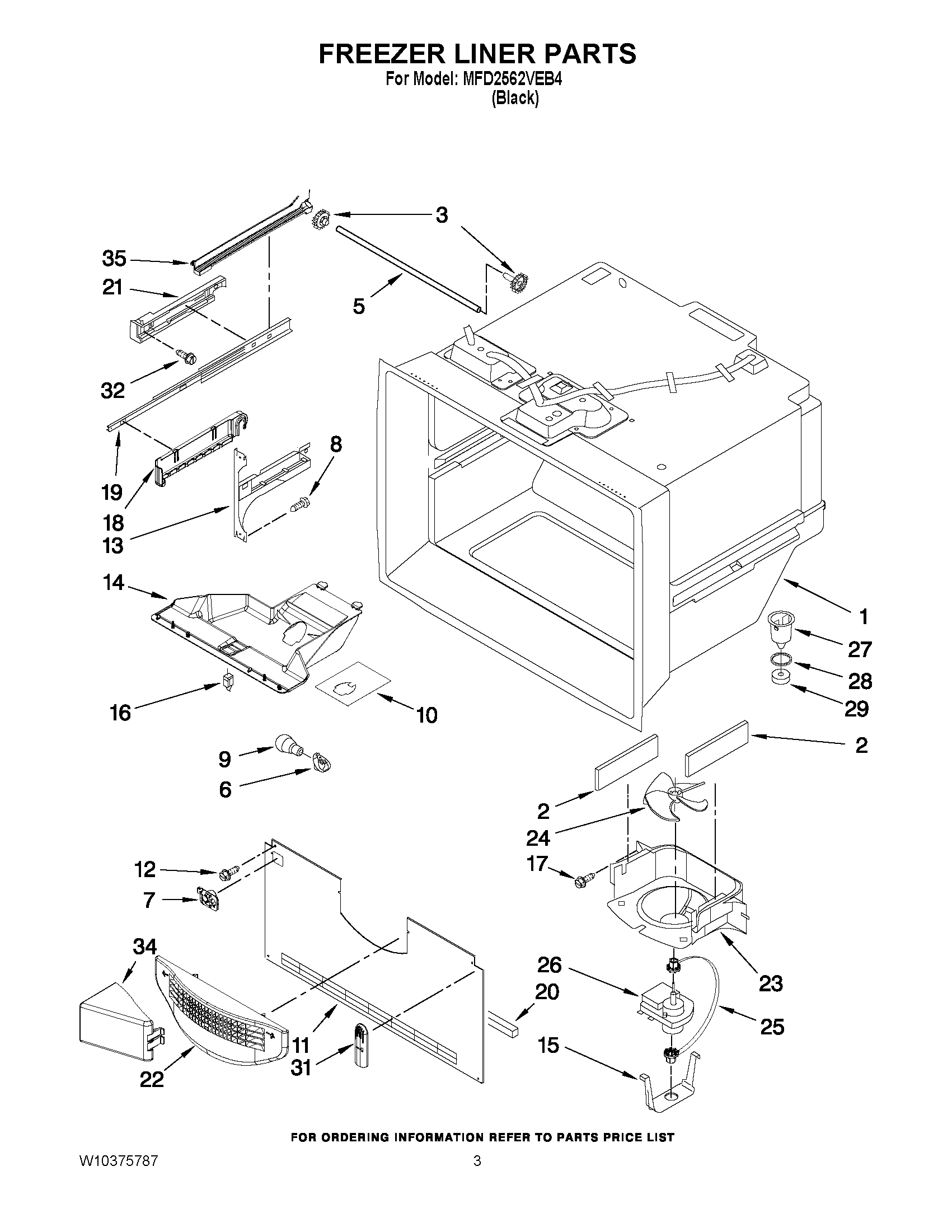

MFD2562VEB4 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	SHAFT
6	Socket, Light
7	MAY 12932103
8	Screw (8)
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18	CRADLE-BASKET (RIGHT HAND)
18	CRADLE-BASKET (LEFT HAND)
19	MAY W10120018
20	GASKET, BOTTOM
21	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
34	MAY W10157765
35	RACK-SIDE (RIGHT)
35	RACK-SIDE (LEFT)
