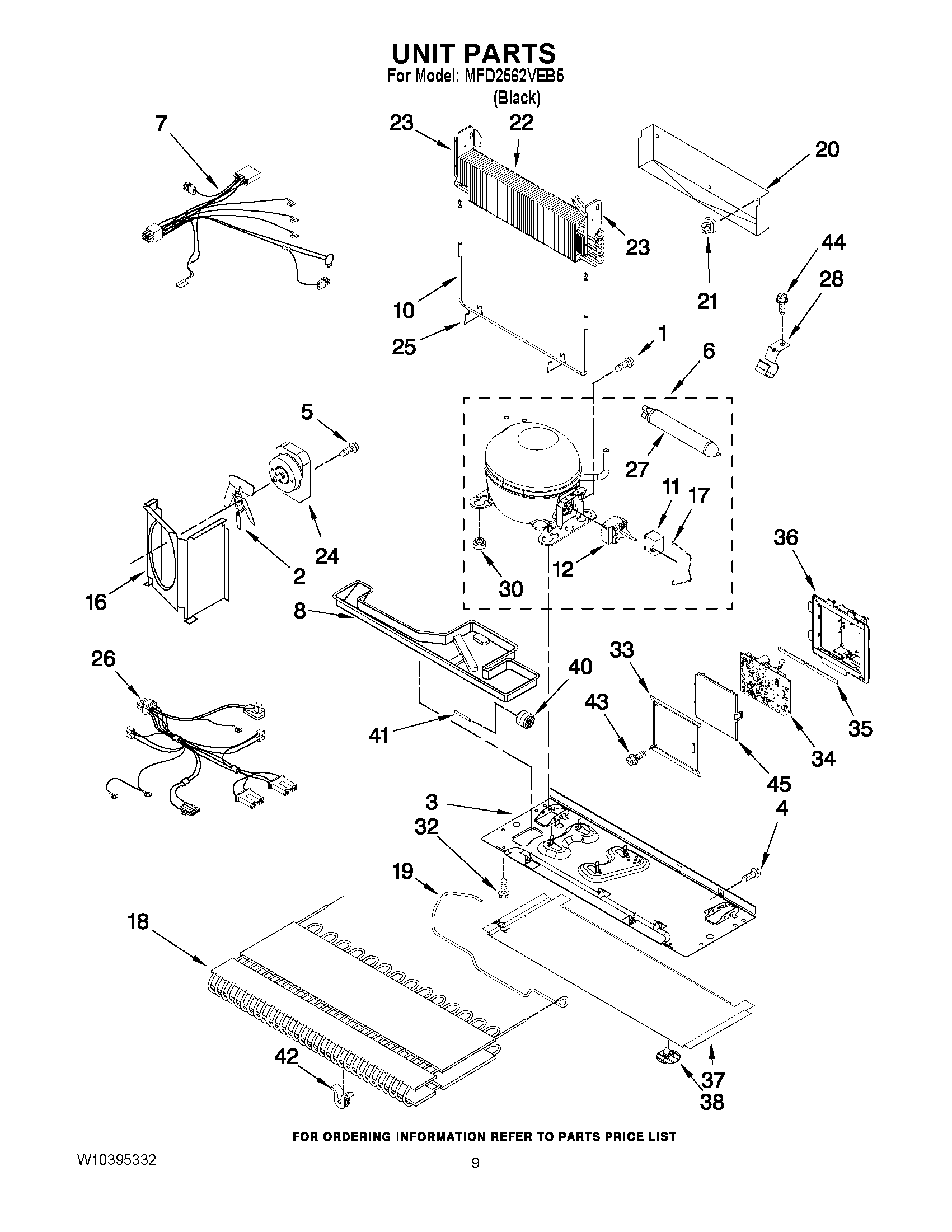

MFD2562VEB5 05 – UNIT PARTSadmin2025-04-26T09:08:20+00:00MFD2562VEB5 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10210985 |
| 4 | SCREW (10) |
| 5 | MAY W10216919 |
| 6 | MAY W10164016 |
| 7 | HARNESS, EVAP. (HEATER) |
| 8 | MAY W10296785 |
| 10 | EVAPORATOR HEATER |
| 11 | Capacitator (Production) |
| 12 | START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY) |
| 16 | SHROUD |
| 17 | MAY W10174384 |
| 18 | MAY W10135026 |
| 19 | MAY W10233569 |
| 20 | MAY W10292803 |
| 21 | MAY 10623002 |
| 22 | MAY W10317014 |
| 23 | DAM (LEFT SIDE) |
| 23 | Dam (Right Side) |
| 24 | MAY W10239053 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY W10234025 |
| 27 | Drier |
| 28 | MAY W10281329 |
| 30 | Grommet (4) |
| 32 | MAY 12992101 |
| 33 | MAY 12961602 |
| 34 | BOARD, HV CONTROL |
| 35 | GASKET-HV BOX |
| 36 | MAY W10257665 |
| 37 | EXTENSION, BASEPAN |
| 38 | MAY W10206339 |
| 40 | Roller (2) |
| 41 | Axle, Roller (2) |
| 42 | GROMMET, COND (4) |
| 43 | SCREW |
| 44 | MAY 12990701 |
| 45 | LID, HV BOX |
