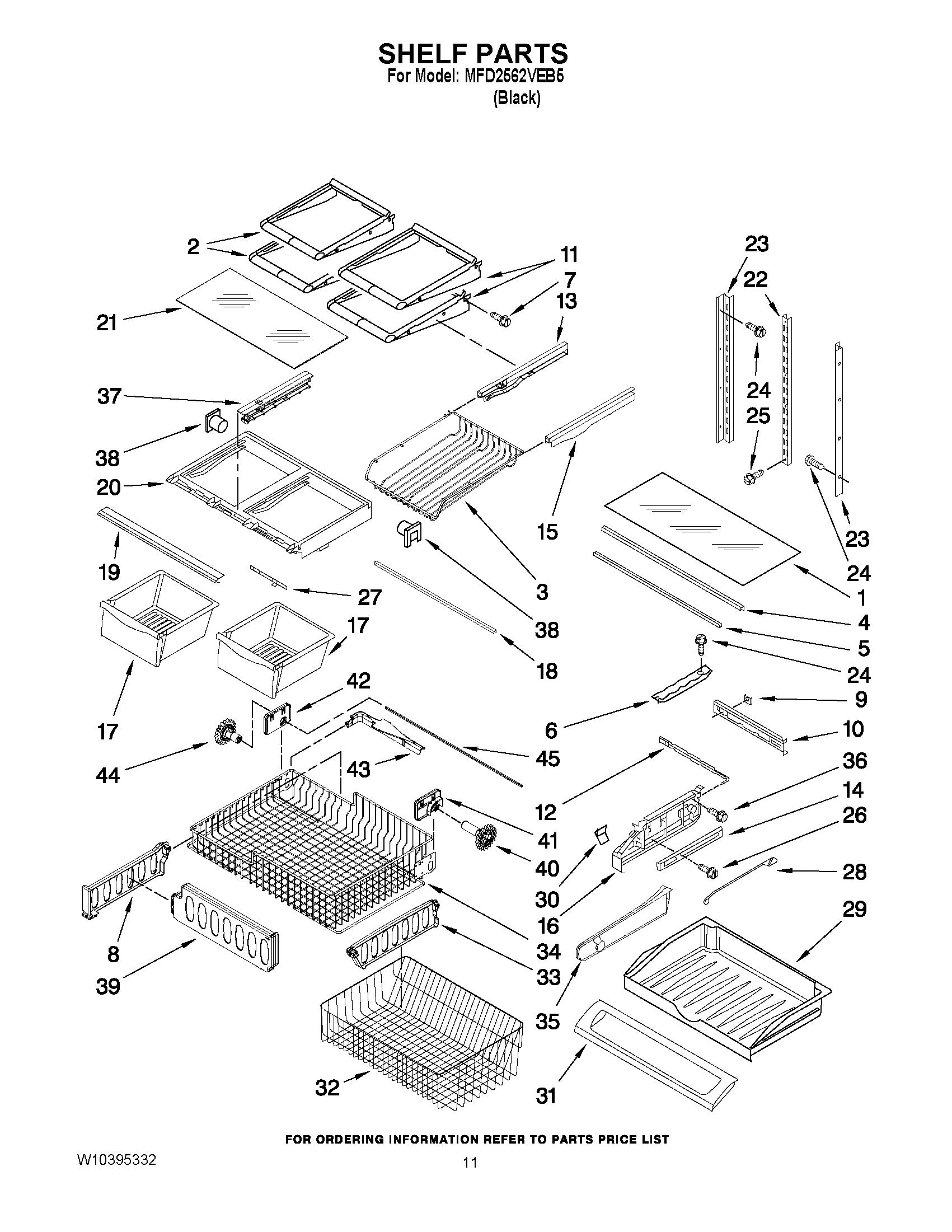

MFD2562VEB5 06 – SHELF PARTS
Written by
in
MFD2562VEB5 06 – SHELF PARTS
Products
Position
Product
1
GLASS, PANTRY
2
SHELF, GLIDE (4)
3
MAY 12503805SP
4
MAY 12655902SP
5
MAY 12227305WD
6
TRACK, PANTRY
7
SCREW
8
Divider, Upper Basket
9
MAY 12656901
10
MAY 12656202
11
SHELF, STAT (2)
12
SLIDE, TEMPERATURE
13
GLIDE, LEFT
14
MAY W10235370
15
GLIDE, RIGHT
16
ENDCAP, PANTRY (LEFT)
16
ENDCAP, PANTRY (RIGHT)
17
CRISPER (2)
18
Brace, Crisper (2)
19
MAY W10231345
20
MAY W10329866
21
MAY 12204824
22
MAY W10273463
23
MAY W10251971
24
MAY 12990513
25
MAY W10215666
26
SCREW (2)
27
MAY 12530805SP
28
ROD, TEMPERATURE CONTROL
29
MAY 12731302
30
MAY 12655204V
31
MAY 12656815
32
Basket, Freezer (Lower)
33
Divider, Lower Basket
34
MAY W10209706
35
DIVIDER, PANTRY DRAWER
36
MAY 12990504
37
RAIL, CENTER
38
MAY 13062602
39
MAY W10171558
40
MAY W10146446
41
MOUNT-GEAR (RIGHT HAND)
42
MOUNT-GEAR (LEFT HAND)
43
MAY W10149389
44
MAY W10158749
45
MAY 12812904WD
←
