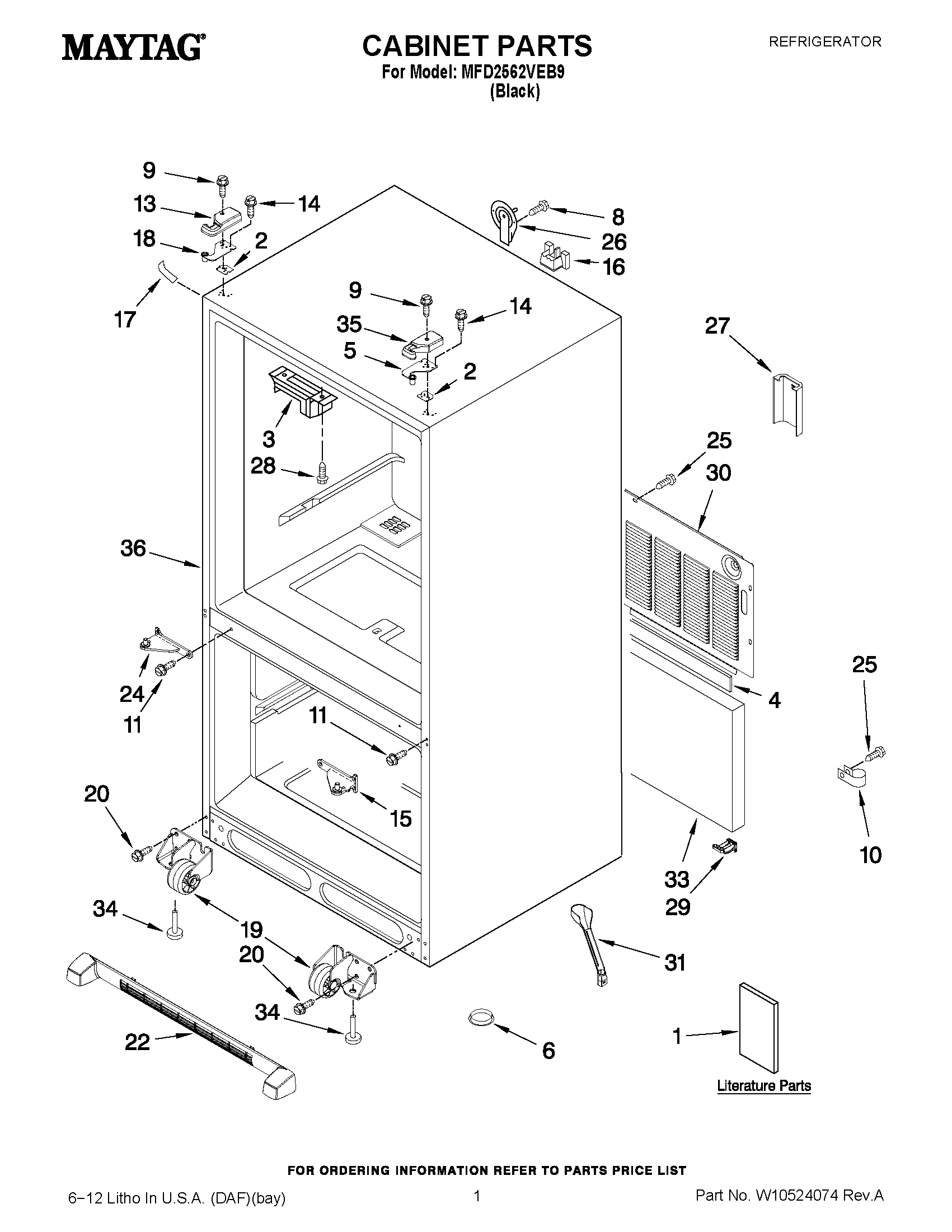

MFD2562VEB9 01 – CABINET PARTS

Products

Position	Product
1	MAY W10480706
1	MAY W10187813
1	MAY W10366206
2	MAY 12999502
2	MAY 12999501
3	Block, Pivot
4	MAY B5759655
5	MAY 12963205ED
6	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992602
10	CLAMP, TUBE
11	MAY W10339086
13	MAY 12962301B
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
22	MAY W10244561N
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW (2)
29	MAY 12831101
30	MAY W10211855
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY 12962302BN
36	LINER (NOT A SERVICEABLE PART)
