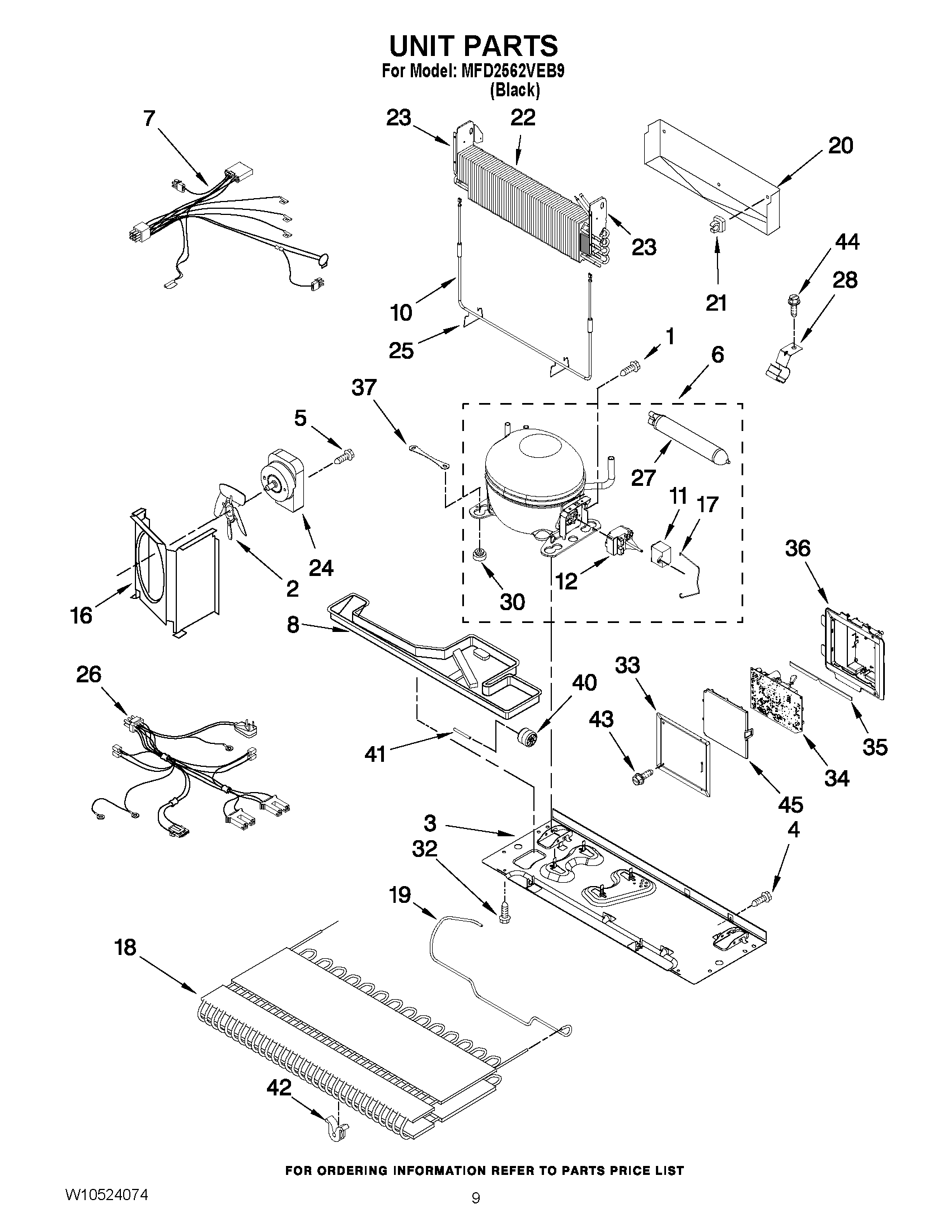

MFD2562VEB9 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (3/4“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10216919
6	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
7	HARNESS, EVAP. (HEATER)
8	MAY W10296785
10	EVAPORATOR HEATER
11	Capacitator (Production)
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
16	SHROUD
17	MAY W10216075
18	MAY W10346415
19	MAY W10233569
20	MAY W10292803
21	MAY 10623002
22	MAY W10317014
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234025
27	Drier
28	MAY W10281329
30	Grommet (4)
32	MAY 12992101
33	MAY 12961602
34	BOARD, HV CONTROL
35	MAY 12957801SP
36	MAY W10257665
37	MAY W10236396
40	Roller (2)
41	Axle, Roller (2)
42	GROMMET, COND (4)
43	SCREW
44	MAY 12990701
45	MAY 12957702SP
