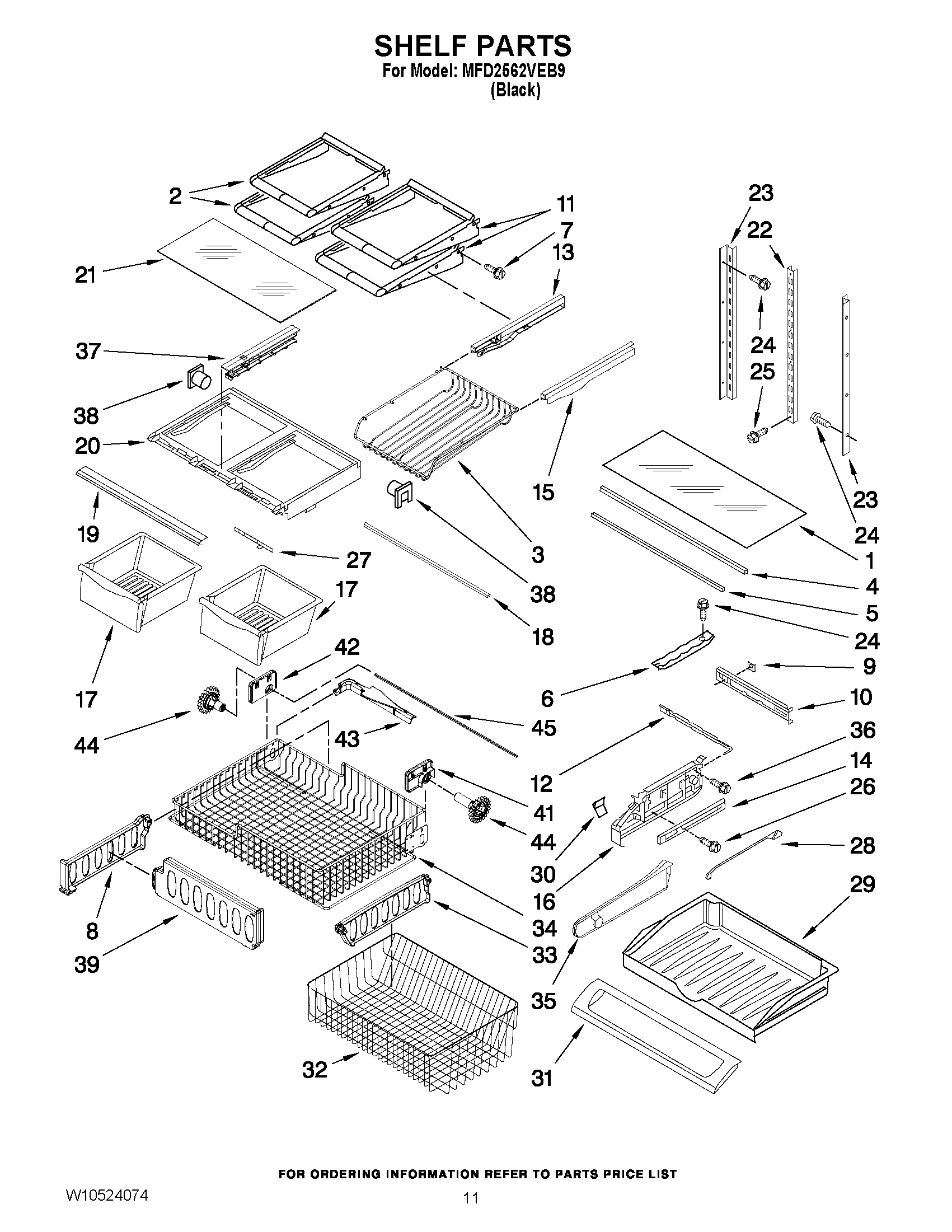

MFD2562VEB9 06 – SHELF PARTS

MFD2562VEB9 06 – SHELF PARTS

Written by

in

MFD2562VEB9 06 – SHELF PARTS

Products

Position	Product
1	GLASS, PANTRY
2	SHELF, GLIDE (4)
3	MAY 12503805SP
4	MAY 12655902SP
5	MAY 12227305WH
6	TRACK, PANTRY
7	SCREW
8	Divider, Upper Basket
9	MAY 12656901
10	MAY 12656202
11	SHELF, STAT (2)
12	SLIDE, TEMPERATURE
13	GLIDE, LEFT
14	MAY W10235370
15	GLIDE, RIGHT
16	ENDCAP, PANTRY (RIGHT)
16	ENDCAP, PANTRY (LEFT)
17	CRISPER (2)
18	Brace, Crisper (2)
19	MAY W10231345N
20	MAY W10329866
21	GLASS, CRISPER COVER
22	MAY W10273463
23	MAY W10251971
24	MAY 12990513
25	MAY W10215666
26	SCREW (2)
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12731302
30	KNOB, TEMP CONTROL
31	MAY 12656815
32	MAY W10150039N
33	DIVIDER, LOWER BASKET
34	MAY W10348246
35	DIVIDER, PANTRY DRAWER
36	MAY 12990504
37	RAIL, CENTER CRISPER FRAME
38	MAY 13062602
39	MAY W10171558
41	MOUNT-GEAR (RIGHT HAND)
42	MOUNT-GEAR (LEFT HAND)
43	MAY W10149389N
44	MAY W10474715
44	MAY 13004702BN
45	MAY 12812904WD
