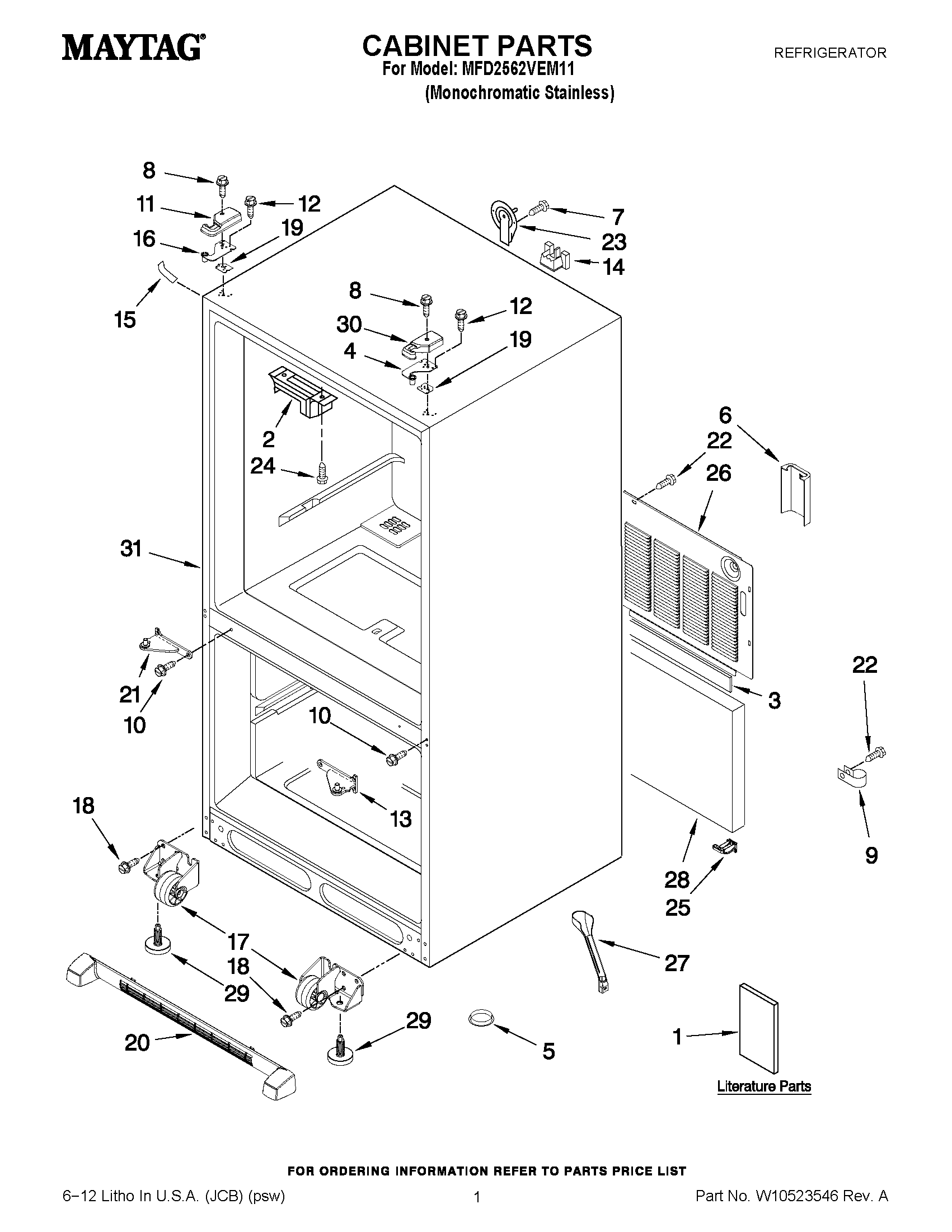

MFD2562VEM11 01 – CABINET PARTS

MFD2562VEM11 01 – CABINET PARTS

Written by

in

MFD2562VEM11 01 – CABINET PARTS

Products

PositionProduct
1MAY W10480706
1MAY W10366206
1MAY W10187813
2Block, Pivot
3MAY B5759655
4MAY 12963205ED
5A3076901 Whirlpool Refrigerator Plug
6GUARD-WATER VALVE
7MAY 12990504
8MAY 12992602
9CLAMP, TUBE
10MAY W10339086
11MAY 12962301AP
12SCREW (6)
13HINGE, CENTER (RT) (GREY)
14MAY 12777701
15COVER, CORNER (GREY)
16MAY 12963204ED
17ROLLER ASSY. (FRONT) (RIGHT)
17ROLLER ASSY. (FRONT) (LEFT)
18Screw (8)
19MAY 12999501
19MAY 12999502
20GRILLE, TOE (GREY)
21HINGE, CENTER (LT) (GREY)
22SCREW (10)
23MAY 12726003
24SCREW (2)
25MAY 12831101
26MAY W10211855
27MAY W10210988
28Insulation, Sound
29Brake, Foot
30MAY 12962302AP
31LINER (NOT A SERVICEABLE PART)
