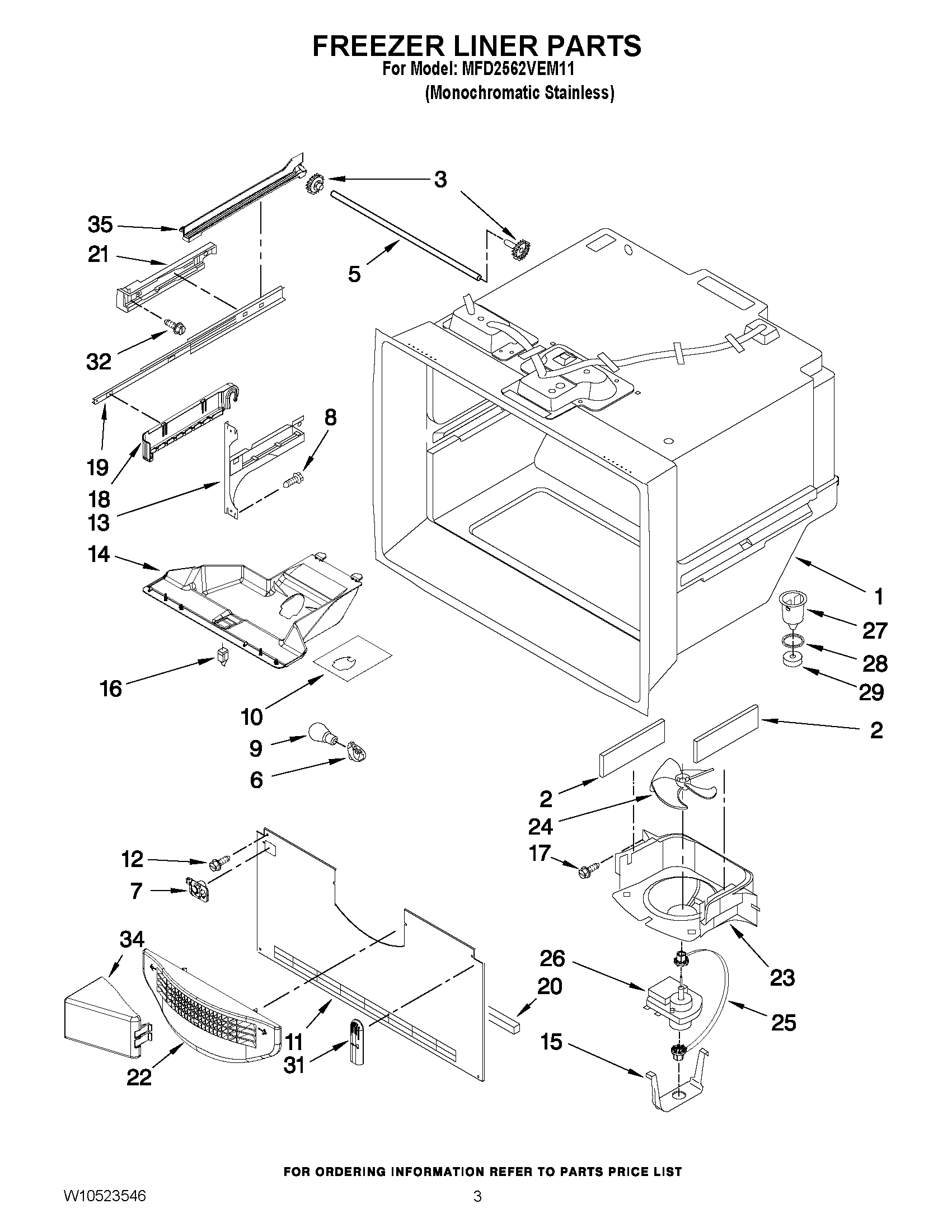

MFD2562VEM11 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5SHAFT
6W11447232 Whirlpool Refrigerator Socket
7MAY 12932103
8Screw (8)
9MAY W10311505
10FOIL-FZ LIGHT
11MAY W10308416
12SCREW (10)
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12990504
18CRADLE-BASKET (RIGHT HAND)
18CRADLE-BASKET (LEFT HAND)
19SLIDE, DRAWER (2)
20GASKET, BOTTOM
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
34MAY W10157765
35RACK-SIDE (LEFT)
35RACK-SIDE (RIGHT)
