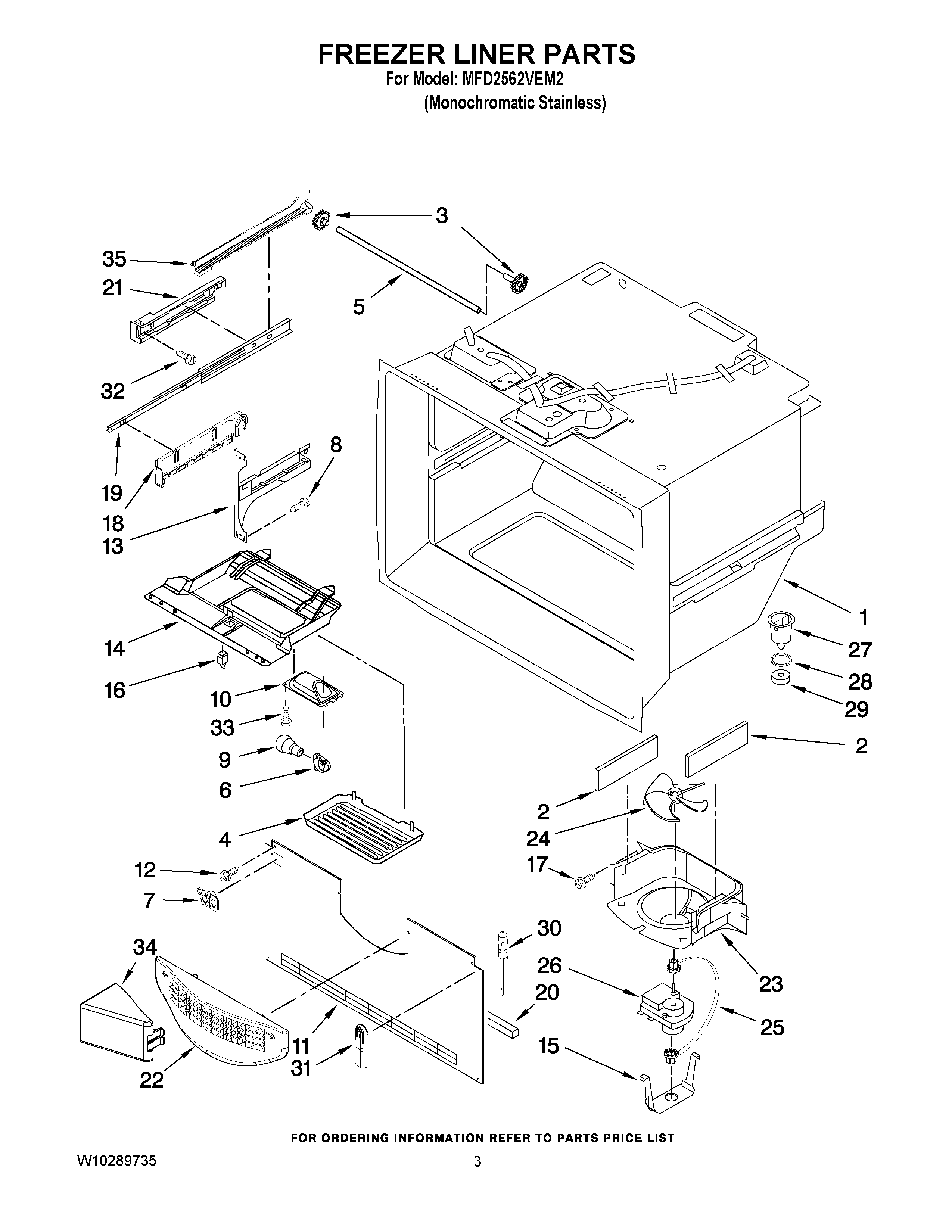

MFD2562VEM2 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10235312
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12804901
5	SHAFT
6	Socket, Light
7	MAY 12932103
8	Screw (8)
9	Bulb, Light (2)
10	MAY 12476401V
11	MAY 12226112
12	SCREW (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18	Bracket, Basket (Right)
18	Bracket, Basket (Left)
19	MAY W10120018
20	GASKET, BOTTOM
21	MAY W10149391
21	MAY W10149390
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	MAY 12815301
32	Screw (6)
33	MAY 12991603V
34	MAY W10157765
35	RAIL, SIDE (LEFT HAND)
35	RAIL, SIDE (RIGHT HAND)
