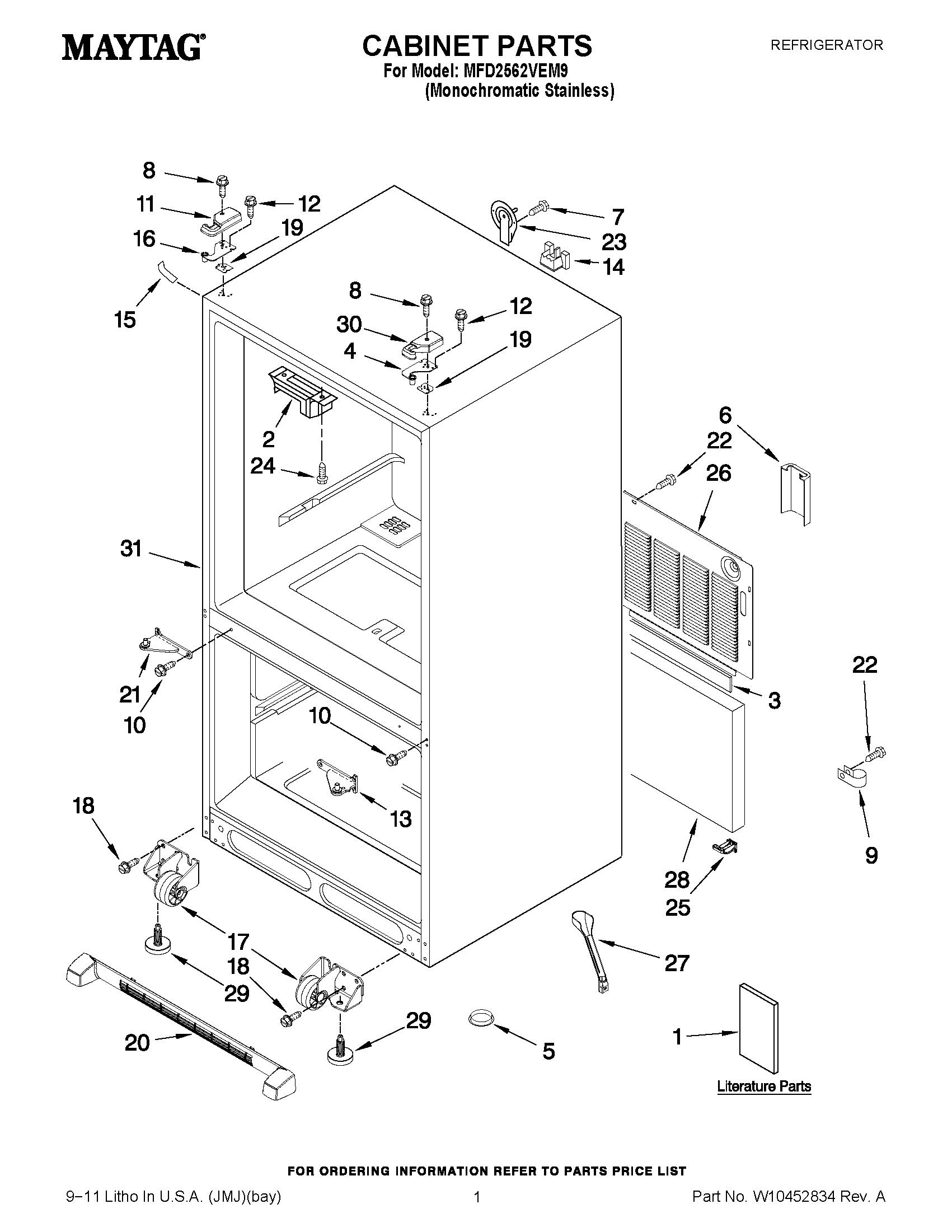

MFD2562VEM9 01 – CABINET PARTS

Products

Position	Product
1	MAY W10432494
1	MAY W10366206
1	MAY W10187813
2	Block, Pivot
3	MAY B5759655
4	MAY 12963205ED
5	A3076901 Whirlpool Refrigerator Plug
6	GUARD-WATER VALVE
7	MAY 12990504
8	MAY 12992602
9	CLAMP, TUBE
10	SCREW (6)
11	MAY 12962301AP
12	SCREW (6)
13	HINGE, CENTER (RT) (GREY)
14	MAY 12777701
15	COVER, CORNER (GREY)
16	MAY 12963204ED
17	ROLLER ASSY. (FRONT) (RIGHT)
17	ROLLER ASSY. (FRONT) (LEFT)
18	Screw (8)
19	MAY 12999501
19	MAY 12999502
20	GRILLE, TOE (GREY)
21	HINGE, CENTER (LT) (GREY)
22	SCREW (10)
23	MAY 12726003
24	SCREW (2)
25	MAY 12831101
26	MAY W10211855
27	MAY W10210988
28	Insulation, Sound
29	Brake, Foot
30	MAY 12962302AP
31	LINER (NOT A SERVICEABLE PART)
