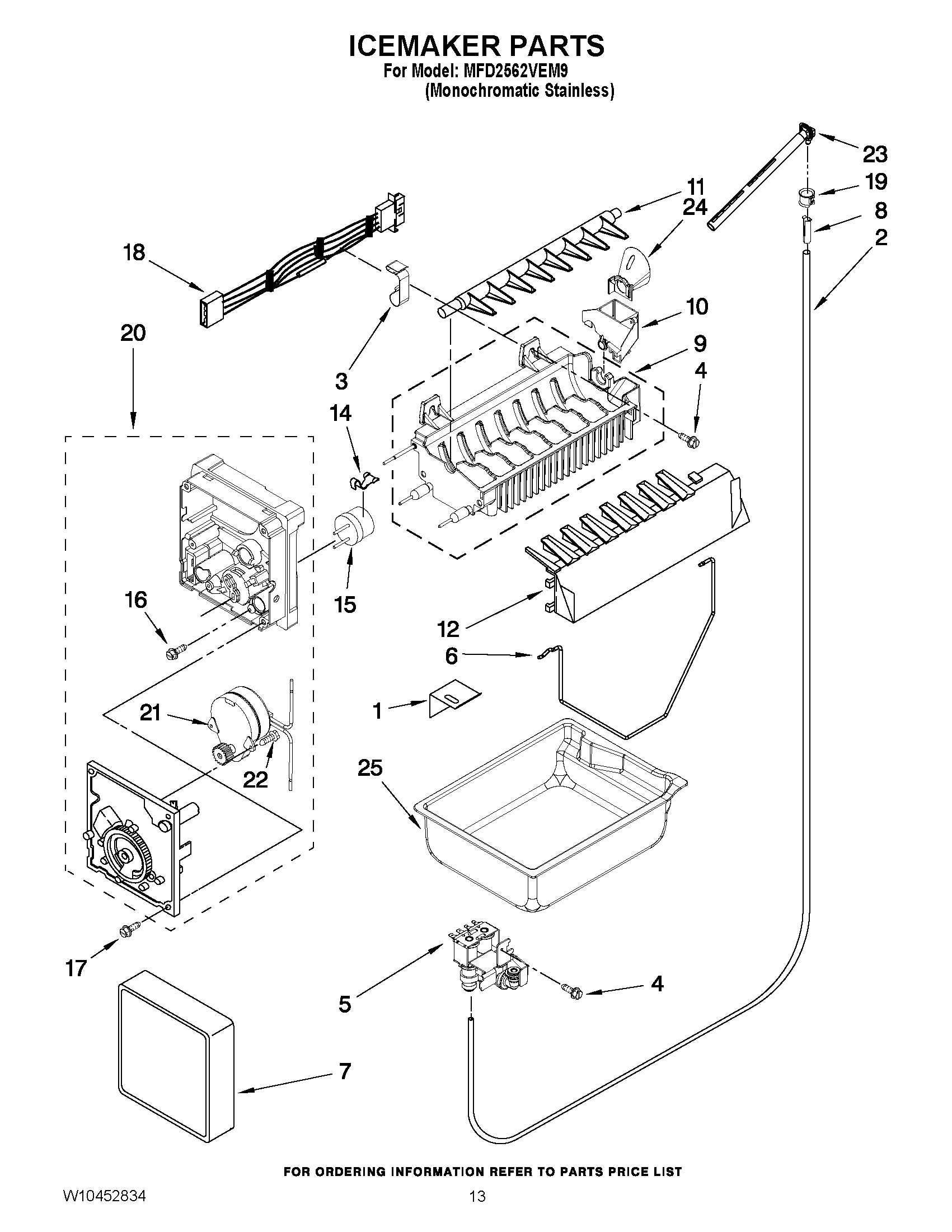

MFD2562VEM9 07 – ICEMAKER PARTS

MFD2562VEM9 07 – ICEMAKER PARTS

Written by

in

MFD2562VEM9 07 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	MAY B5705333
3	CLAMP, WIRE
4	SCREW
5	VALVE, WATER INLET
6	ARM-SHUT OFF
7	COVER
8	MAY A3223101
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10410073
11	MAY W10318914
12	ICE STRIPPER
14	MAY 2315522
15	MAY W10290336
16	MAY 8533917
17	Screw (3)
18	MAY W10404661
19	Clip
20	ASSEMBLY, MODULE AND MOTOR
21	LINER (NOT A SERVICEABLE PART)
22	Screw (3)
23	MAY 10463203
24	FUNNEL, FILL TUBE
25	ICEMAKER ASSEMBLY (COMPLETE)
100	ICEMAKER ASSEMBLY (COMPLETE)
