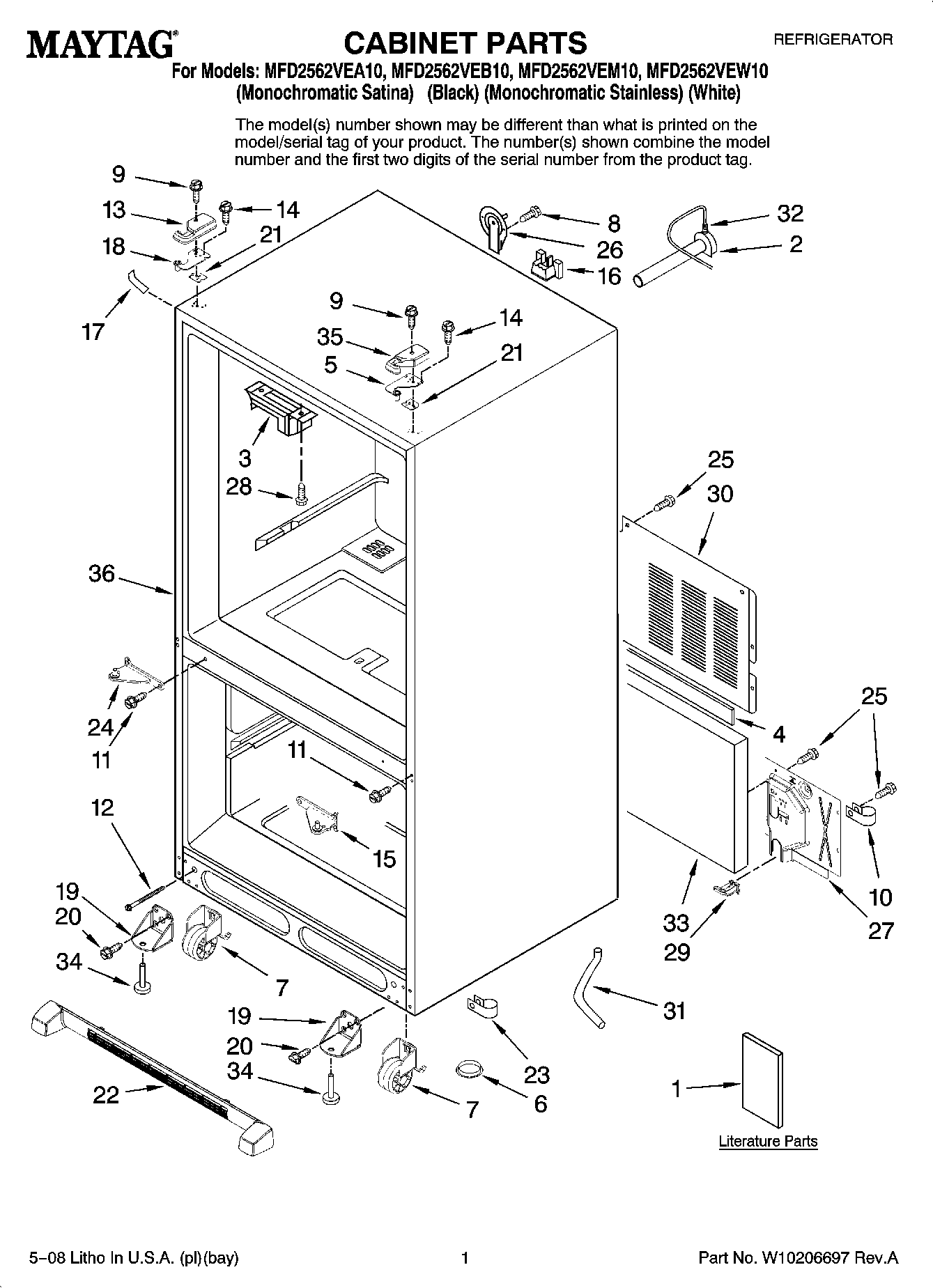

MFD2562VEW10 01 – CABINET PARTS

MFD2562VEW10 01 – CABINET PARTS

Written by

in

MFD2562VEW10 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY W10187813
1MAY W10198858
2MAY W10137519
3WP67003405 Whirlpool Pivot Block
4Gasket
5W11592374 Whirlpool Refrigerator Top Door Hinge
6A3076901 Whirlpool Refrigerator Plug
7Roller Assy.(Rear)
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W10833902 Whirlpool Refrigerator Clamp
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13W10337647 Whirlpool Refrigerator Cover
13WPW10337634 Whirlpool Refrigerator Cover
13Cover, Left Hinge (Apollo Grey)
14WP489349 Whirlpool Refrigerator Screw
15MAY 67006379
15W10918168 Whirlpool Refrigerator Door Hinge
15MAY W10191143
16WP12777701 Whirlpool Refrigerator Filler Block
17Cover, Corner (Apollo Grey)
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY W10199045
19Bracket, Foot
20MAY 67006564
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22MAY W10191107
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23MAY W10157973
24MAY W10191142
24W10918113 Whirlpool Refrigerator Door Hinge
24W10918164 Whirlpool Refrigerator Door Hinge
25Screw (10)
26COVER, WATER LINE
27MAY 67004098
28WP7101P126-60 Whirlpool Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30MAY 67006102
31MAY W10164397
32Clip
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35WP67005956 Whirlpool Refrigerator Cover
3567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
35Cover, Right Hinge (Apollo Grey)
