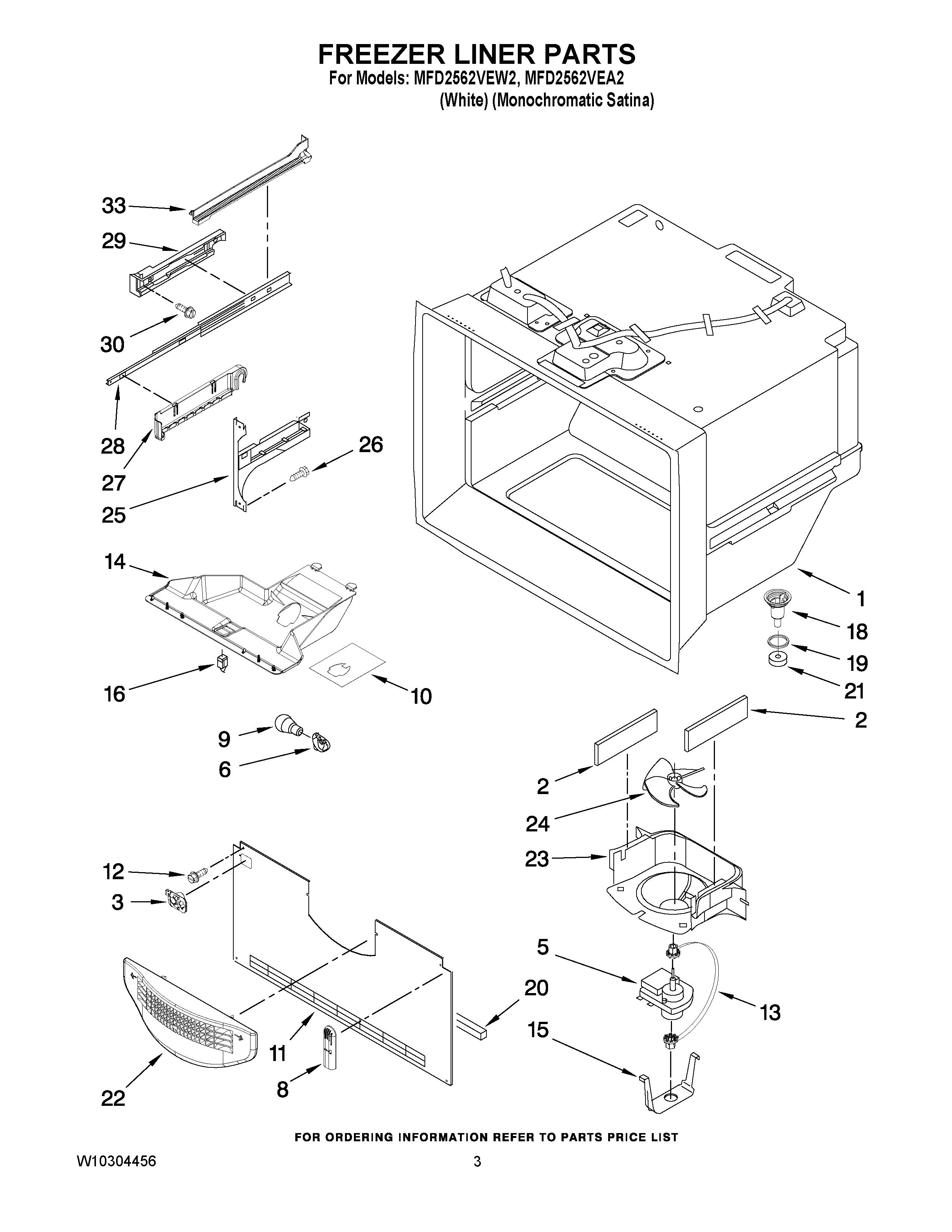

MFD2562VEW2 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
5MAY 13062901
6Socket, Light
8MAY 12815301
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226112
12SCREW (10)
13MAY W10150583
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18MAY D7753903
19MAY M0500703
20GASKET, BOTTOM
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25BRACKET, DOOR (RIGHT)
25BRACKET, DOOR (LEFT)
26Screw (8)
27CRADLE-BASKET (RIGHT HAND)
27CRADLE-BASKET (LEFT HAND)
28MAY W10120018
29MAY W10261203
29MAY W10261204
30Screw (6)
33RACK-SIDE (RIGHT)
33RACK-SIDE (LEFT)
