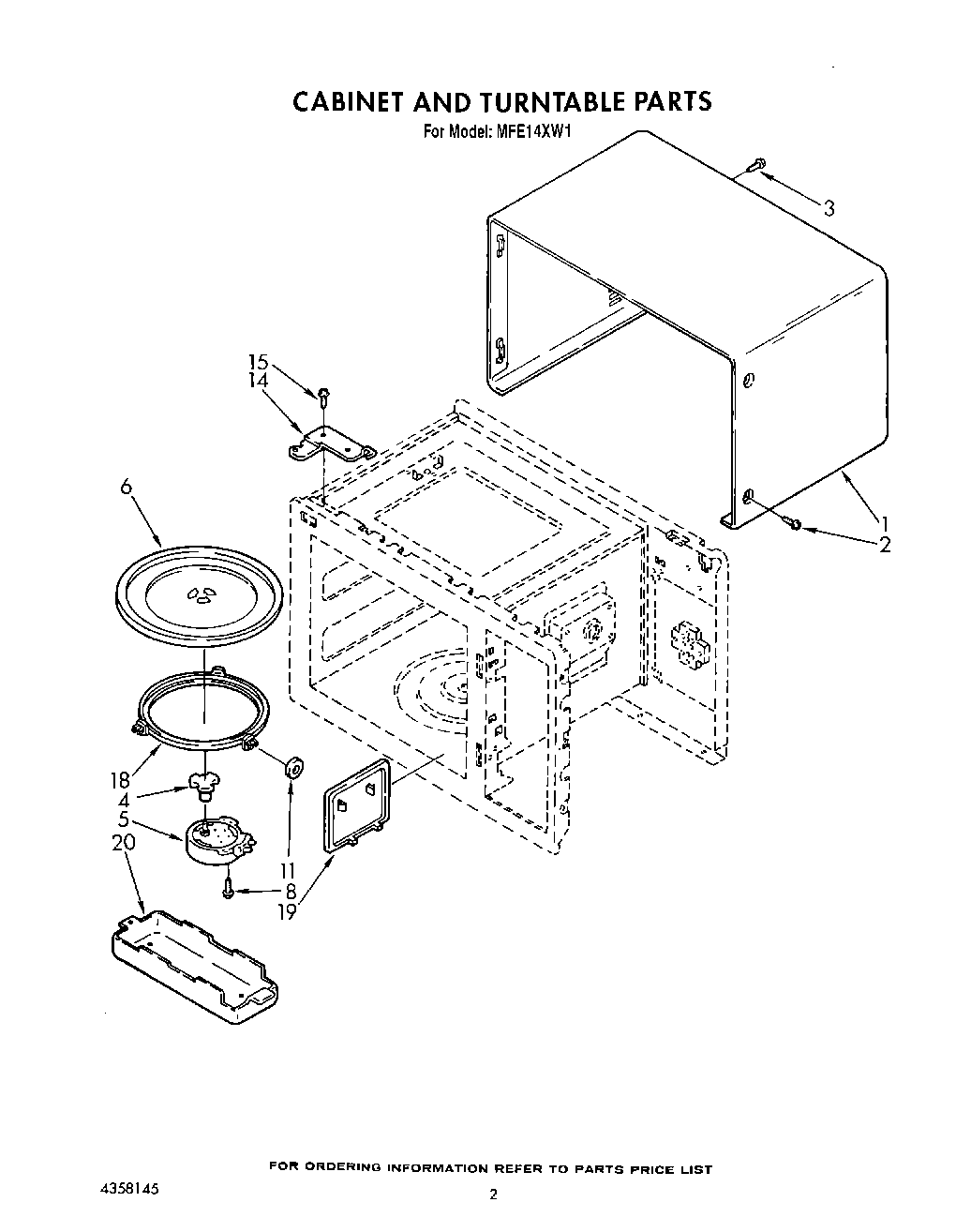

MFE14XW1 02 – CABINET AND TURNTABLE, LIT/OPTIONAL

MFE14XW1 02 – CABINET AND TURNTABLE, LIT/OPTIONAL

Written by

in

MFE14XW1 02 – CABINET AND TURNTABLE, LIT/OPTIONAL

Products

PositionProduct
Parts List
Tech Sheet
Cook Book
Guide, Use And Care
1Cabinet Wrapper
2Screw
3W11380570 Whirlpool Microwave Screw
4Turntable Shaft
5Motor, Turntable
6Tray, Glass
8Screw (2)
11Roller, Table (3)
14Hinge, Upper
15WP3400094 Whirlpool Screw
18Base, Turntable
19Cap, Wave Guide
20Cover, Turntable Motor
