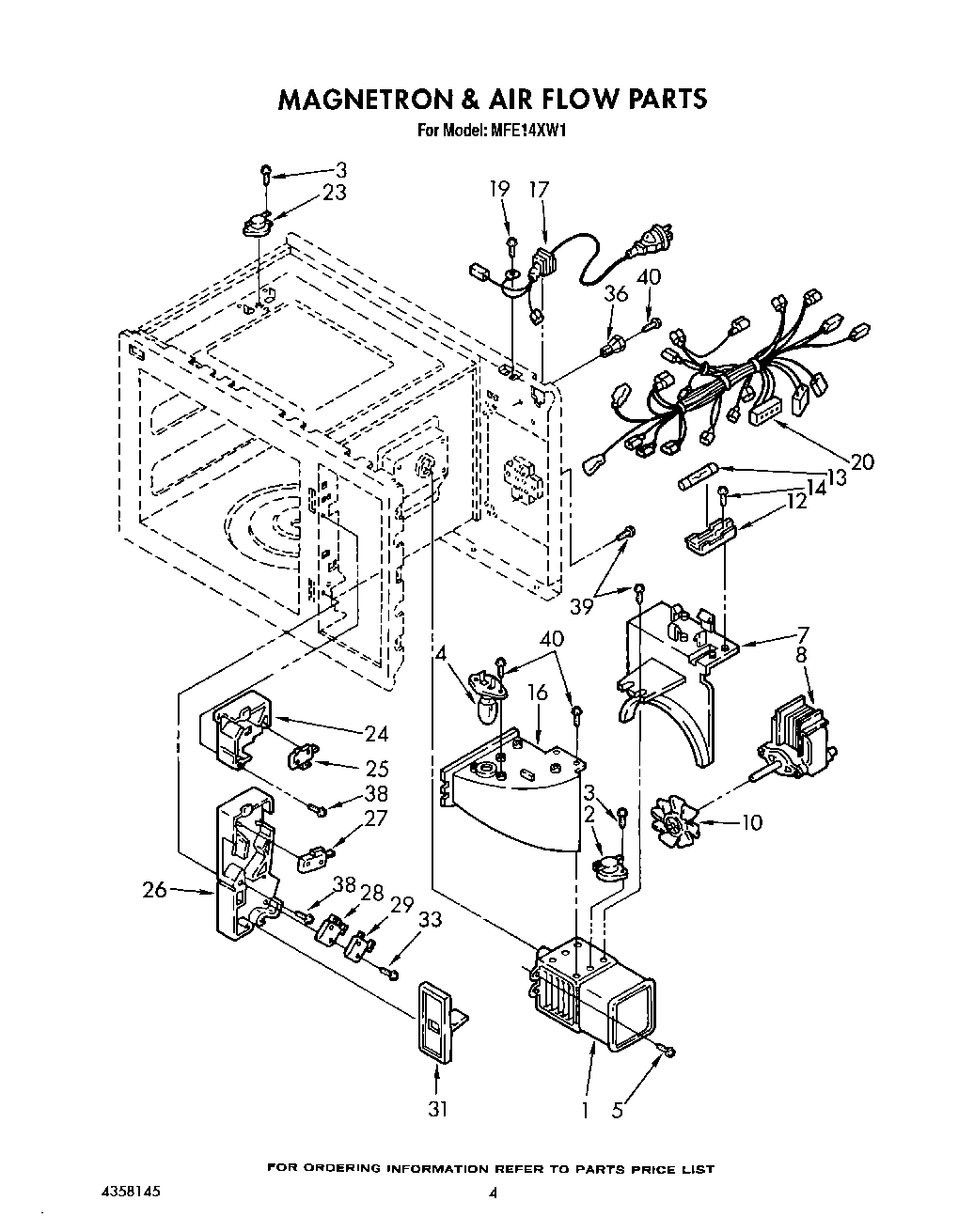

MFE14XW1 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw (2)
4	Base Less Light
5	WP3400094 Whirlpool Screw
7	Bracket, Fan
8	Motor, Fan
10	Fan
12	Holder, Fuse
13	Fuse
14	Screw (2)
16	Air Duct
17	Cord, Power
19	W11380570 Whirlpool Microwave Screw
20	Wiring Harness
23	Thermostat, Oven
24	Latch, Upper
25	4392027 Whirlpool Microwave Primary Switch
26	Latch, Lower
31	Rod, Release
33	Screw
36	Spacer
38	Special Screw (2)
39	Screw (2)
40	Screw
