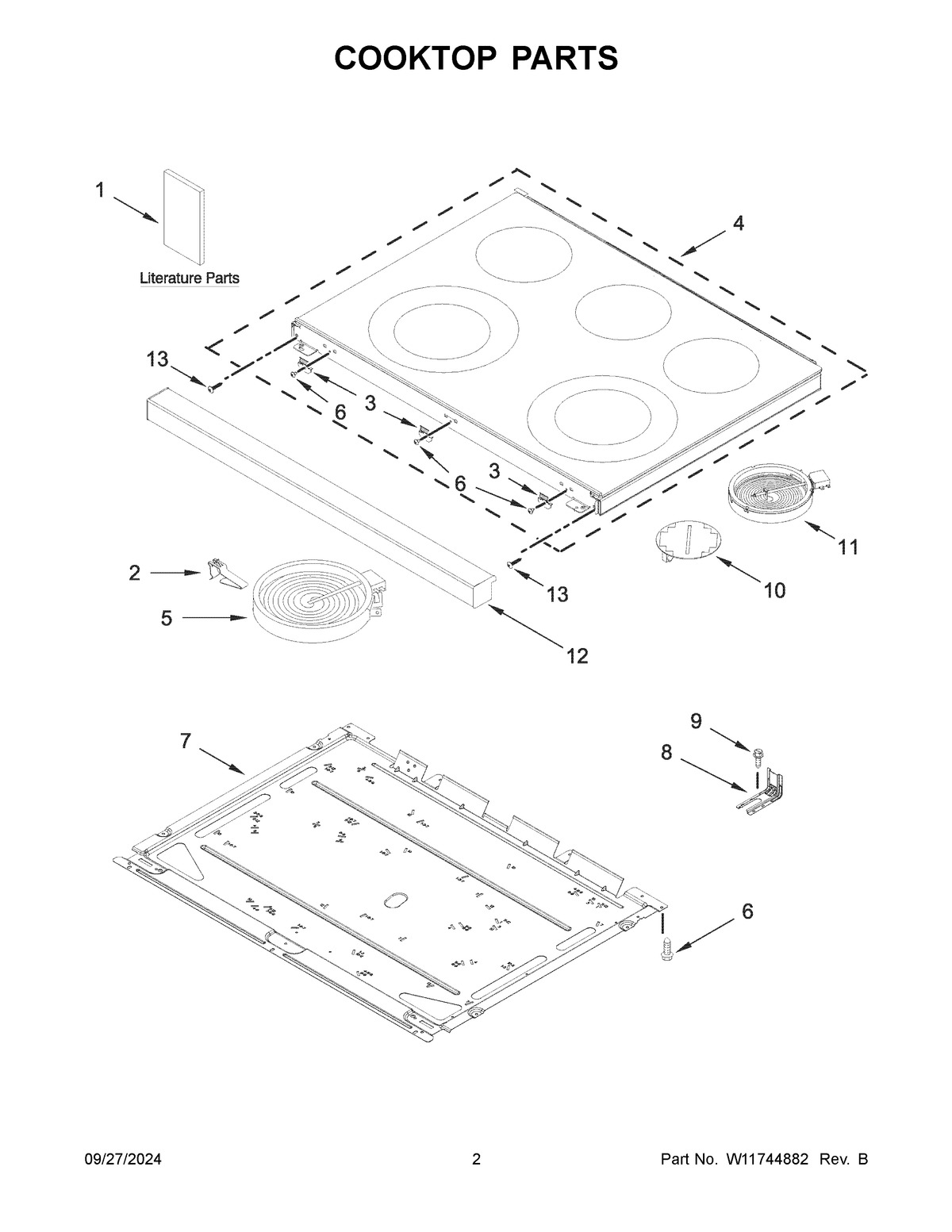

MFES4030RB0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, COOKTOP
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	W11663556 Whirlpool Spring Assembly
3	BRACKET, COOKTOP
4	COOKTOP (BLACK (INCLUDES, COOKTOP BRACKET))
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	ELEMENT, WARM ZONE (CENTER)
11	ELMNT-SURF
12A	BULLNOSE (WHITE)
12	BULLNOSE (BLACK)
13	Screw
