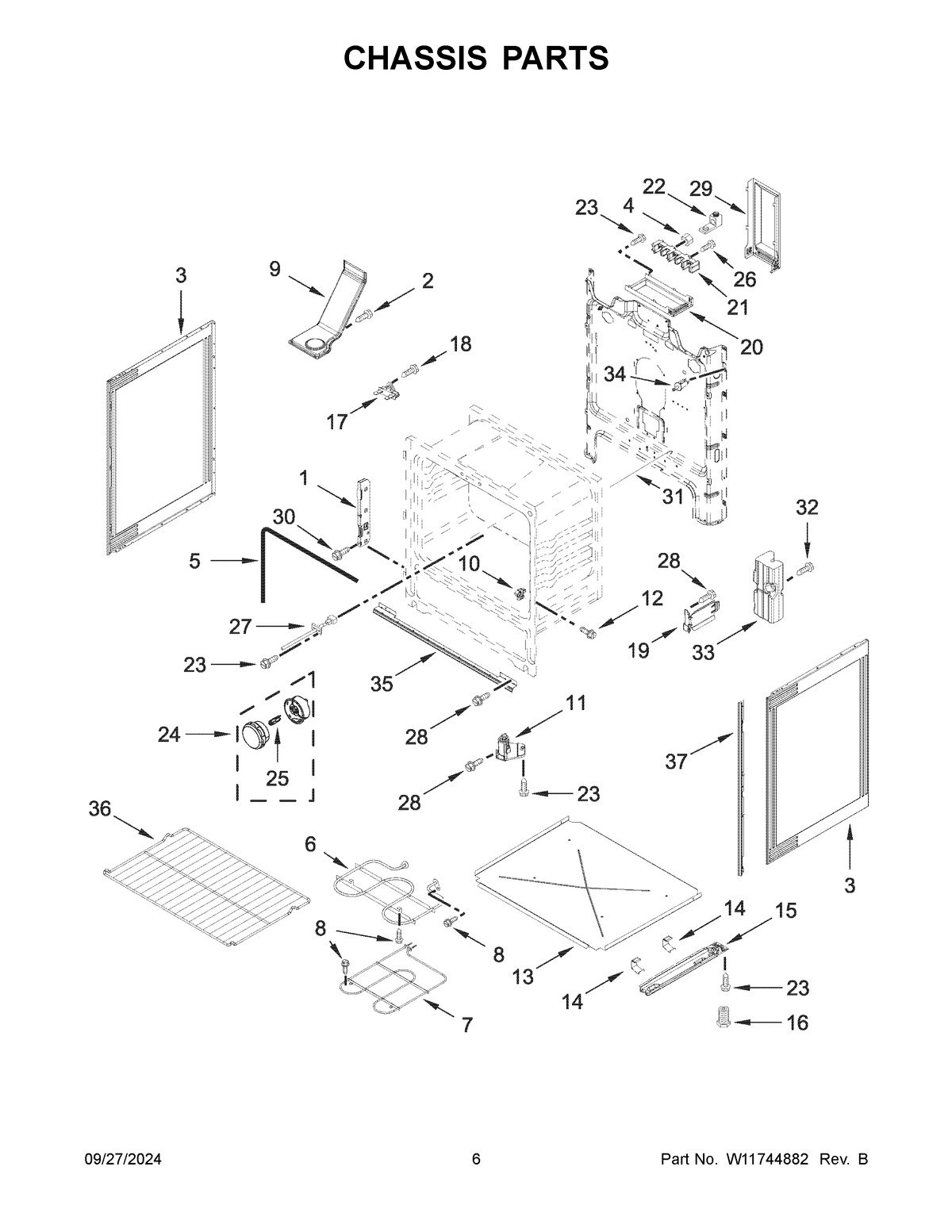

MFES4030RB0 04 – CHASSIS PARTS

MFES4030RB0 04 – CHASSIS PARTS

Products

PositionProduct
NIWPW10208653 Whirlpool Insulation
NIFOLLOWING PARTS NOT ILLUSTRATED
NIINSULATION, FLUE
NIW11311894 Whirlpool Insulation
1W10647259 Whirlpool Hinge Receiver
3W11730303 Whirlpool Side Panel
3APANEL-SIDE
4WP3400029 Whirlpool Dishwasher Nut
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7W11182108 Whirlpool Bake Element
8WP3196154 Whirlpool Screw Assembly
9TUBE, VENT
10W10807823 Whirlpool Drawer Glide
11WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12WPW10067840 Whirlpool Screw
13WP8054068 Whirlpool Retainer
14W10137382 Whirlpool Clip
15AWPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17WP3196548 Whirlpool Thermal Fuse
183196172 Whirlpool Oven Screw
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21BLOCK, TERMINAL (WITHOUT GROUND STRAP)
22WPW10281322 Whirlpool Connector
23SCREW
24W11707255 Whirlpool Light
25BULB-LIGHT
26WP3400016 Whirlpool Screw Assembly
27SENSOR-RANGE
28WP3196557 Whirlpool Screw
29WPW10326122 Whirlpool Black Cover
30W10777162 Whirlpool Screw
319757239 Whirlpool Oven Door Rod
32W11135756 Whirlpool Screw Torx
33W11135752 Whirlpool Anchor Tip
34SWTCH-LITE
35W11464547 Whirlpool Support Bracket
36RACK-OVEN
37W11594227 Whirlpool Rail Mounting
