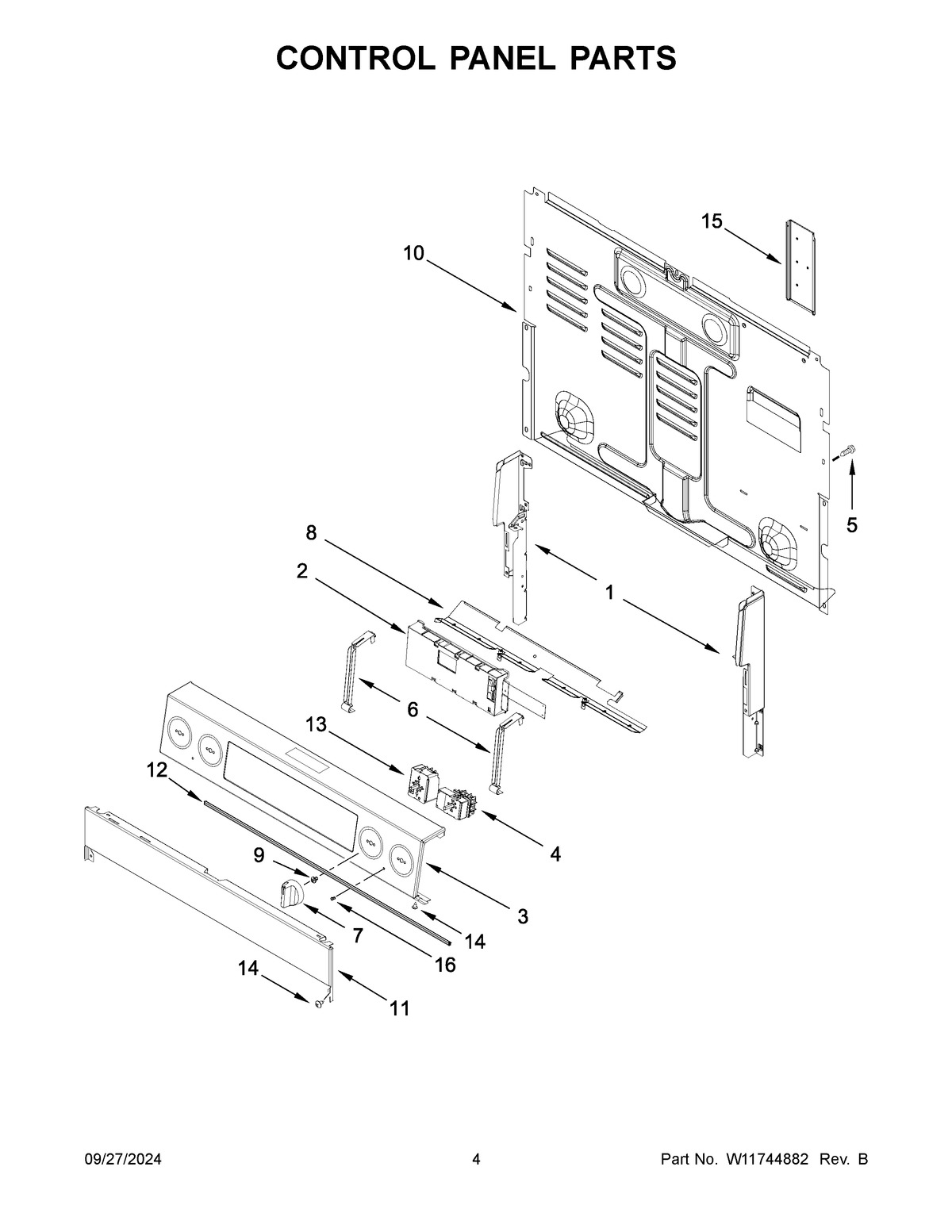

MFES4030RW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BENDPOST, CONSOLE (WHITE (LEFT))
1AENDPOST, CONSOLE (BLACK (RIGHT))
1ENDPOST, CONSOLE (BLACK (LEFT))
1CENDPOST, CONSOLE (WHITE (RIGHT))
2CONTROL, ELECTRONIC (LCX) (BLACK)
3PANEL, CONSOLE (BLACK)
3APANEL, CONSOLE (WHITE)
4SWITCH-INF
5SCREW
6BRACKET, CONTROL
7KNOB
8SHIELD, HEAT
9WP3400882 Whirlpool Screw
10COVER-REAR
11APANEL, LOWER (WHITE)
11PANEL, LOWER (BLACK)
12GASKET, LOWER PANEL
13W10911303 Whirlpool Infinite Switch
14WP3196557 Whirlpool Screw
15COVER, REAR FLUE
16WP3196068 Whirlpool Light Lens
