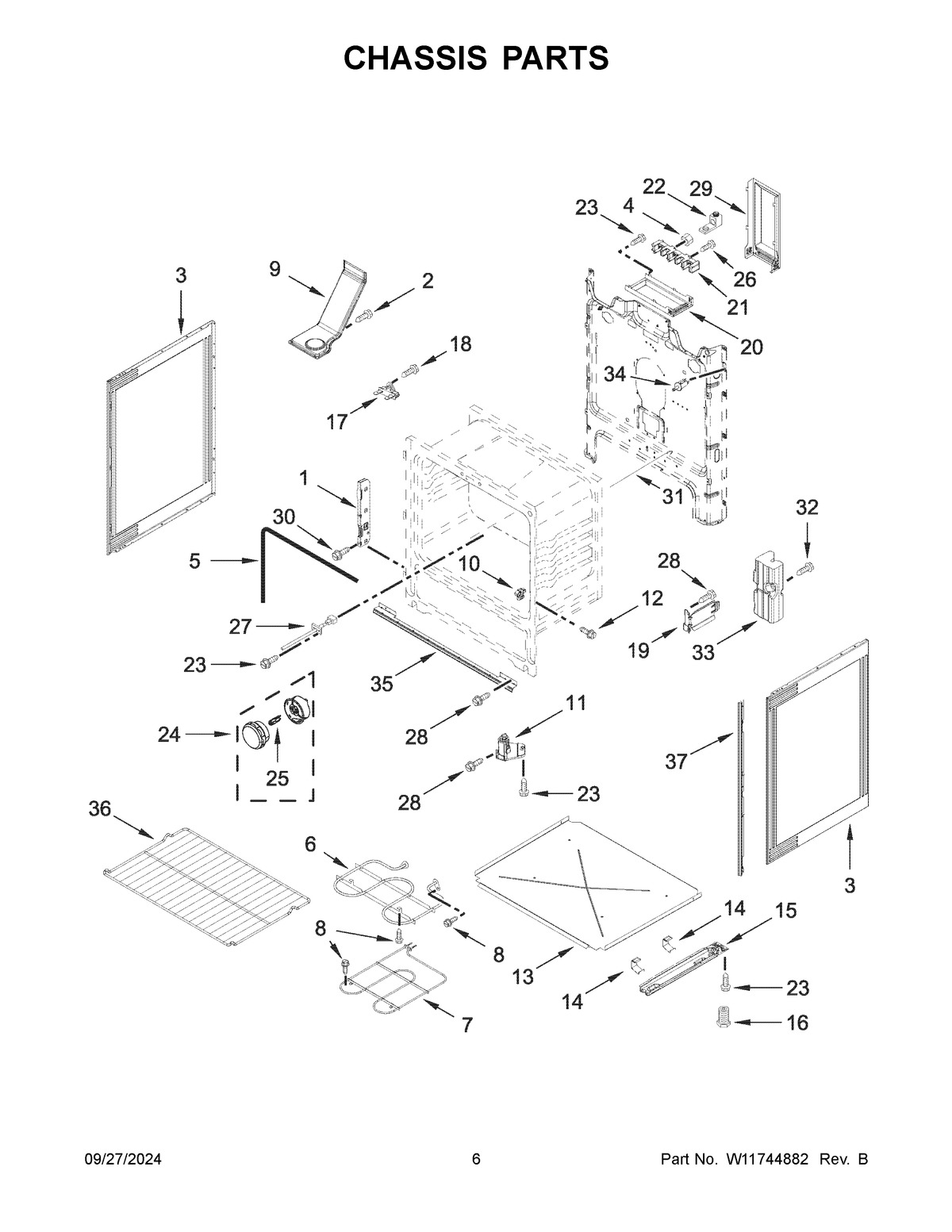

MFES4030RW0 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	INSULATION, FLUE
NI	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
3	W11730303 Whirlpool Side Panel
3A	PANEL-SIDE
4	WP3400029 Whirlpool Dishwasher Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WP3196154 Whirlpool Screw Assembly
9	TUBE, VENT
10	W10807823 Whirlpool Drawer Glide
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	BLOCK, TERMINAL (WITHOUT GROUND STRAP)
22	WPW10281322 Whirlpool Connector
23	SCREW
24	W11707255 Whirlpool Light
25	BULB-LIGHT
26	WP3400016 Whirlpool Screw Assembly
27	SENSOR-RANGE
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	9757239 Whirlpool Oven Door Rod
32	W11135756 Whirlpool Screw Torx
33	W11135752 Whirlpool Anchor Tip
34	SWTCH-LITE
35	W11464547 Whirlpool Support Bracket
36	RACK-OVEN
37	W11594227 Whirlpool Rail Mounting
