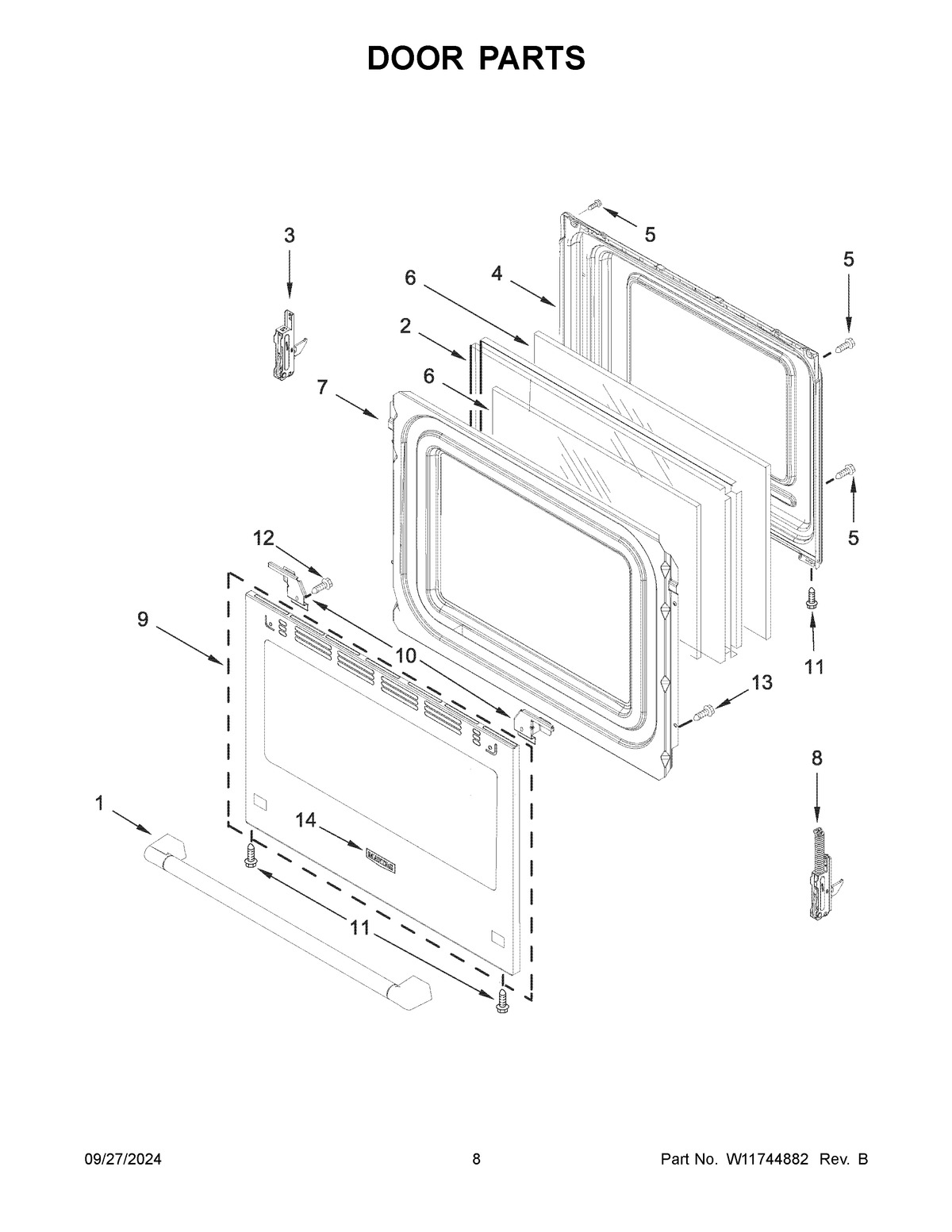

MFES4030RW0 05 – DOOR PARTS

MFES4030RW0 05 – DOOR PARTS

Written by

in

MFES4030RW0 05 – DOOR PARTS

Products

PositionProduct
1HNDLE-DOOR
2W11648754 Whirlpool Nameplate
3WPW10299227 Whirlpool Range Door Hinge
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11399628 Whirlpool Door Glass
7W11685635 Whirlpool Retainer
8WPW10299226 Whirlpool Door Hinge
9GLASS, OUTER DOOR (BLACK (INCLUDES BADGE))
9AGLASS, OUTER DOOR (WHITE (INCLUDES BADGE))
10ABRACKET, HANDLE MOUNT (LEFT)
10BRACKET, HANDLE MOUNT (RIGHT)
11WP355214 Whirlpool Screw
12WP3196154 Whirlpool Screw Assembly
13W10777162 Whirlpool Screw
