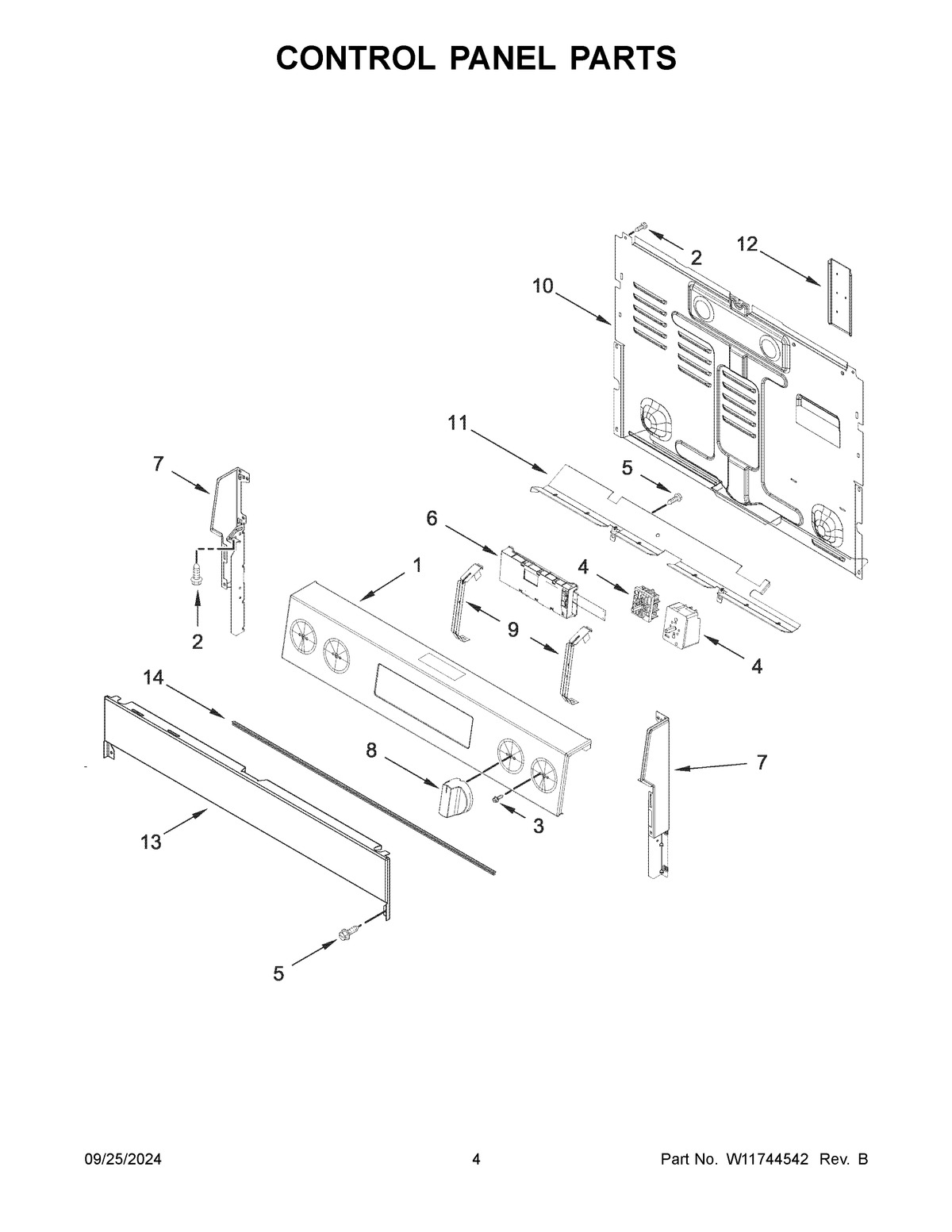

MFES6030RB0 03 – CONTROL PANEL PARTSadmin2025-04-26T12:45:05+00:00MFES6030RB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | CONSOLE (BLACK) |
| 1A | CONSOLE (WHITE) |
| 2 | SCREW |
| 3 | WP3400882 Whirlpool Screw |
| 4 | SWITCH-INF |
| 4B | W10911303 Whirlpool Infinite Switch |
| 4A | W11661906 Whirlpool Range Infinite Switch |
| 5 | WP3196557 Whirlpool Screw |
| 6 | W11729982-includeCORE Whirlpool W11729982 Dishwasher Electronic Control Board with Core |
| 7A | ENDPOST, CONSOLE (BLACK (RIGHT)) |
| 7 | ENDPOST, CONSOLE (BLACK (LEFT)) |
| 7C | ENDPOST, CONSOLE (WHITE (RIGHT)) |
| 7B | ENDPOST, CONSOLE (WHITE (LEFT)) |
| 8 | KNOB |
| 9 | BRACKET, CONTROL |
| 10 | COVER-REAR |
| 11 | SHIELD, HEAT |
| 12 | COVER, REAR FLUE |
| 13A | PANEL, LOWER (WHITE) |
| 13 | PANEL, LOWER (BLACK) |
| 14 | GASKET, LOWER PANEL |
