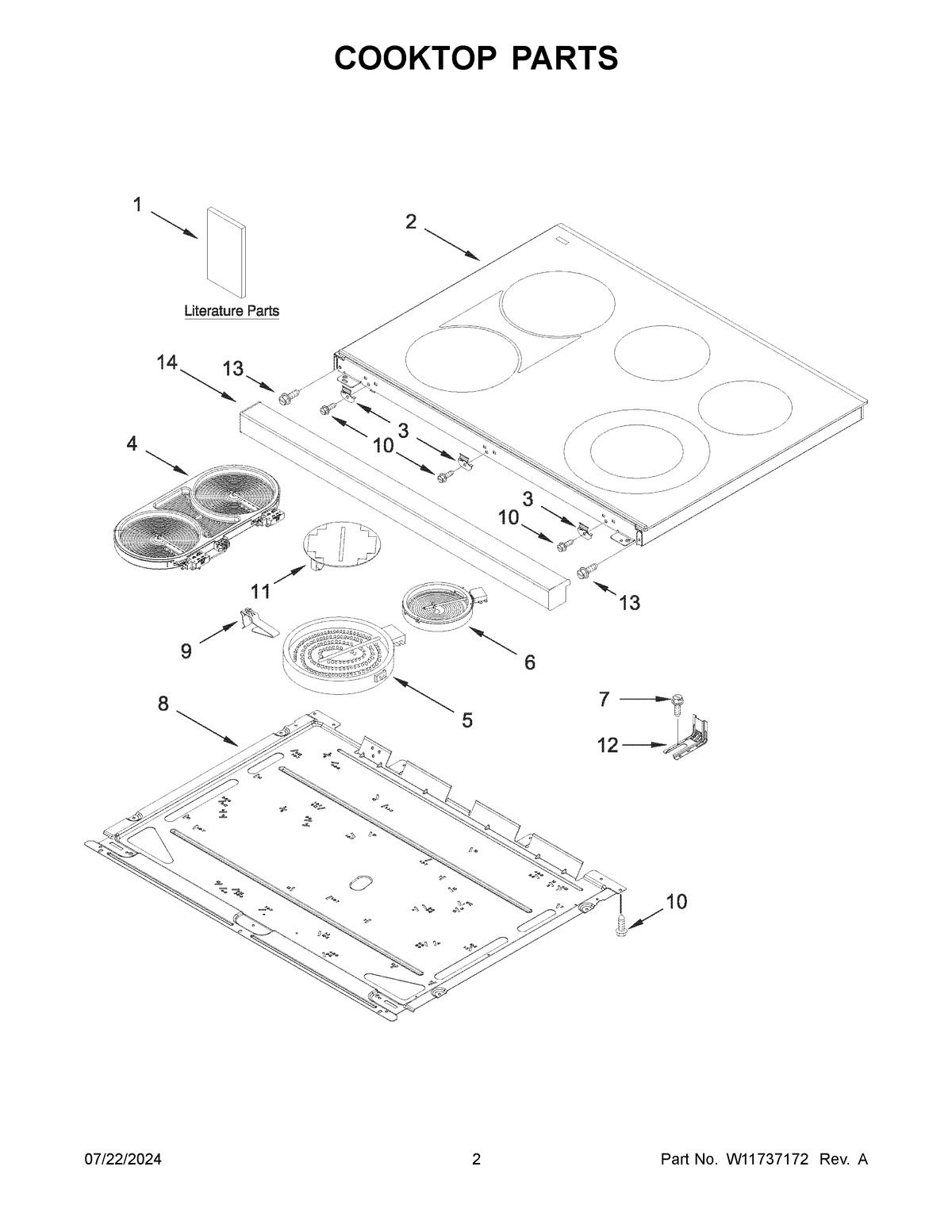

MFES6030RZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	WPW10298887 Whirlpool Wire Tie Assembly
NI	WPW10281322 Whirlpool Connector
NI	3196896 Whirlpool Clip
NI	W11172528 Whirlpool Harness Wire
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, COOKTOP
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	COOKTOP
3	BRACKET, COOKTOP
4	WPW10248259 Whirlpool Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	W11663556 Whirlpool Spring Assembly
10	WP3196557 Whirlpool Screw
11	ELEMENT, WARM ZONE (CENTER)
12	W11447673 Whirlpool Range Tip Anchor
13	Screw
14	TRIM
