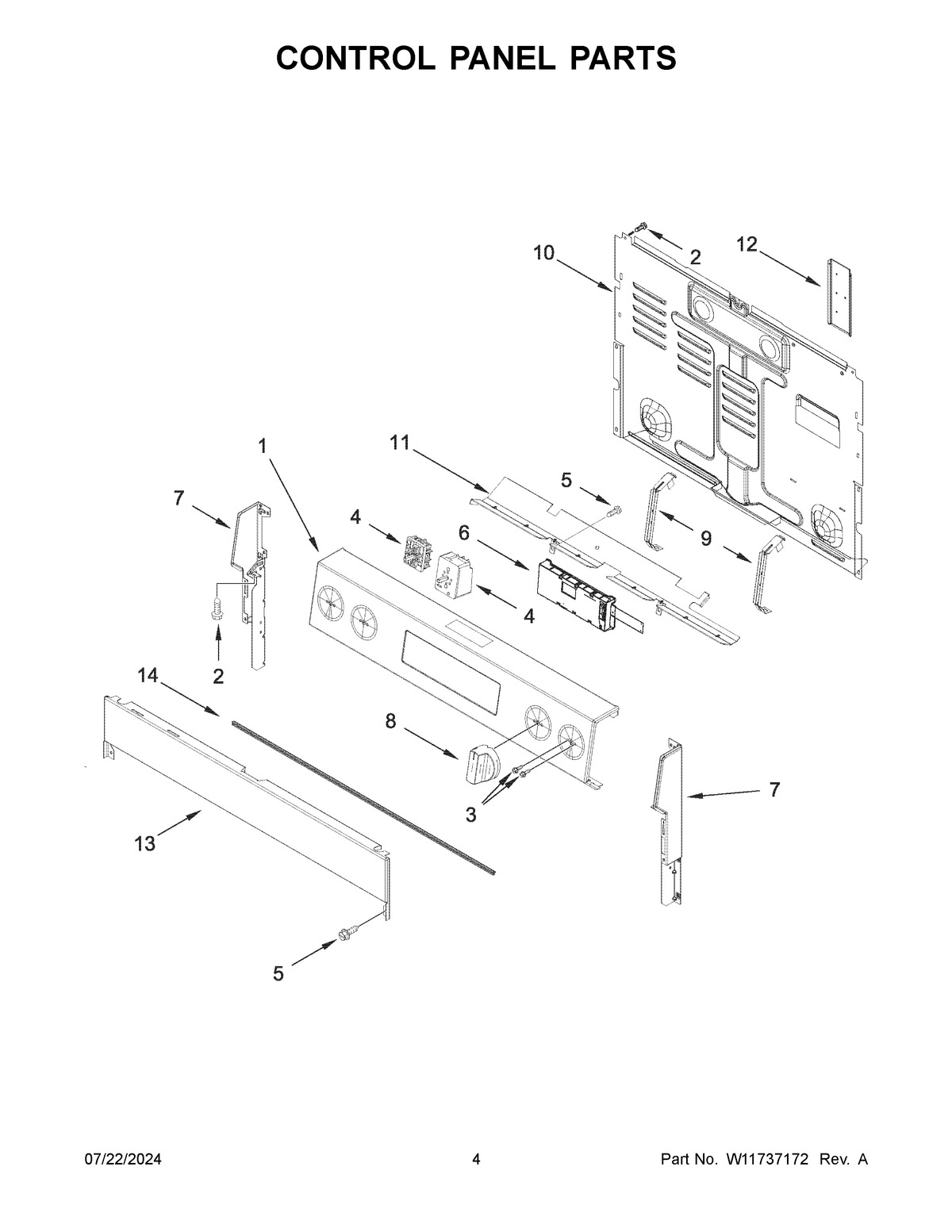

MFES6030RZ0 03 – CONTROL PANEL PARTS

MFES6030RZ0 03 – CONTROL PANEL PARTS

Written by

in

MFES6030RZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (STAINLESS)
2SCREW
3WP3400882 Whirlpool Screw
4SWITCH-INF
4BW10911303 Whirlpool Infinite Switch
4AW11661906 Whirlpool Range Infinite Switch
5WP3196557 Whirlpool Screw
6W11729982-includeCORE Whirlpool W11729982 Dishwasher Electronic Control Board with Core
7AENDCAP (STAINLESS (RIGHT))
7ENDCAP (STAINLESS (LEFT))
8KNOB
9BRACKET, CONTROL
10COVER-REAR
11SHIELD, HEAT
12COVER, REAR FLUE
13PANEL, LOWER (STAINLESS)
14GASKET, LOWER PANEL
