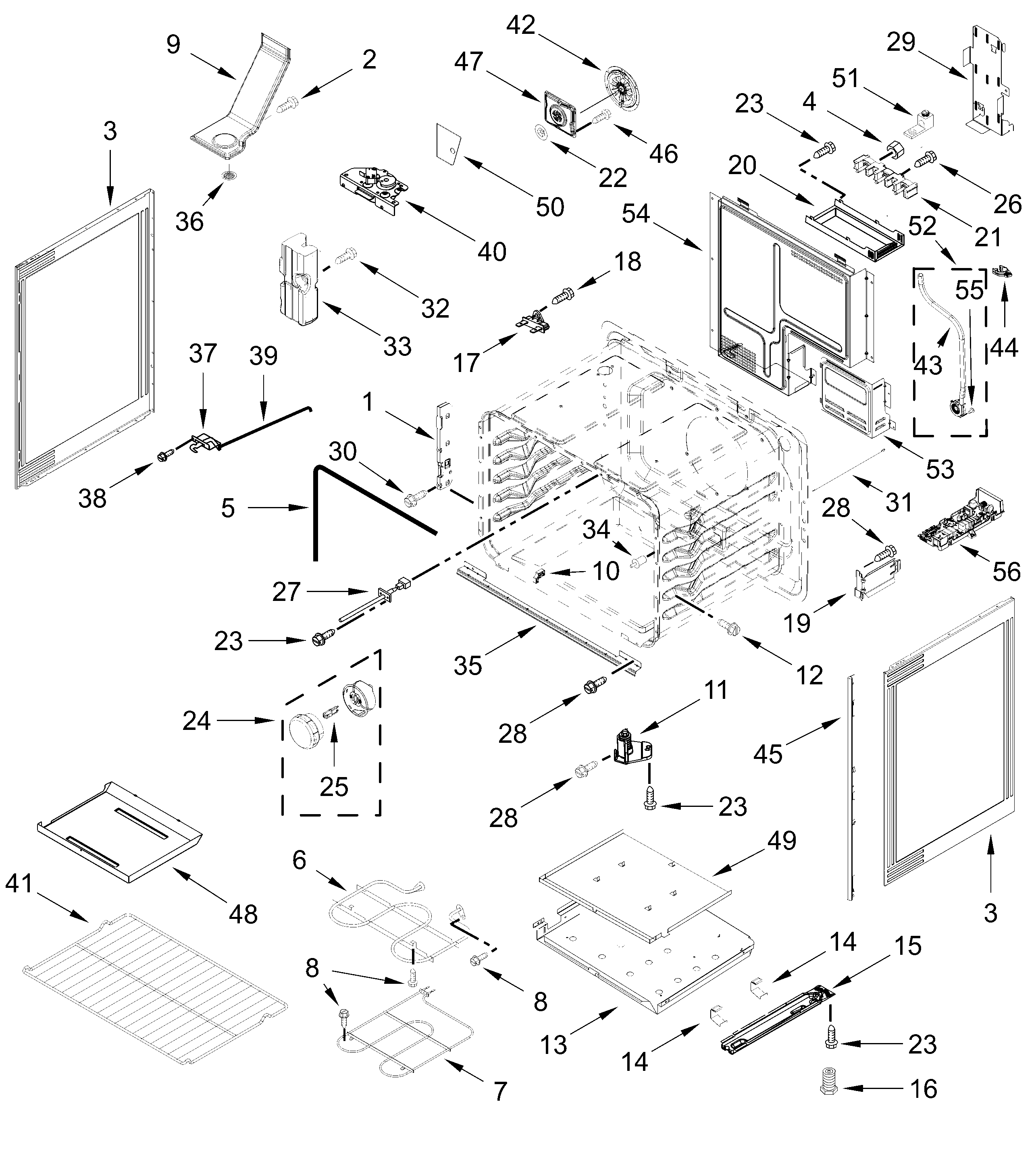

MFES8030RZ0 CHASSIS PARTSadmin2025-04-26T12:47:18+00:00MFES8030RZ0 CHASSIS PARTS
Products
| Position | Product |
|---|
| INSULATION, BACK |
| FOLLOWING PARTS NOT ILLUSTRATED |
| W11161831 Whirlpool Insulation |
| INSULATION, FLUE |
| WPW10306546 Whirlpool Base Rail |
| 1 | W10647259 Whirlpool Hinge Receiver |
| 3 | W11730303 Whirlpool Side Panel |
| 4 | WP3400029 Whirlpool Dishwasher Nut |
| 5 | W11542153 Whirlpool Door Gasket |
| 6 | W10856603 Whirlpool Broil Element |
| 7 | WP9755770 Whirlpool Bake Element |
| 8 | WP3196174 Whirlpool Screw |
| 9 | TUBE, VENT |
| 10 | W10807823 Whirlpool Drawer Glide |
| 11 | WPW10341186 Whirlpool Refrigerator Front Levelling Leg |
| 12 | WPW10067840 Whirlpool Screw |
| 13 | W10134121 Whirlpool Insulation Tray |
| 14 | W10137382 Whirlpool Clip |
| 16 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 17 | WP3196548 Whirlpool Thermal Fuse |
| 18 | 3196172 Whirlpool Oven Screw |
| 19 | W10404688 Whirlpool Bracket Support |
| 20 | W11728255 Whirlpool Service Bracket |
| 21 | BLOCK, TERMINAL |
| 22 | WP3400968 Whirlpool Nut |
| 23 | SCREW |
| 24 | W11707255 Whirlpool Light |
| 25 | BULB-LIGHT |
| 26 | WP3400016 Whirlpool Screw Assembly |
| 27 | SENSOR |
| 28 | WP3196557 Whirlpool Screw |
| 29 | BRACKET, ACU |
| 30 | W10777162 Whirlpool Screw |
| 31 | 9757239 Whirlpool Oven Door Rod |
| 32 | W11135756 Whirlpool Screw Torx |
| 33 | W11135752 Whirlpool Anchor Tip |
| 34 | SWTCH-LITE |
| 35 | W11464547 Whirlpool Support Bracket |
| 36 | SCREEN, VENT |
| 37 | WP9761013 Whirlpool Door Latch |
| 38 | W11169708 Whirlpool Screw |
| 39 | Rod, Latch |
| 40 | WPW10107820 Whirlpool Door Latch |
| 41 | RACK-OVEN |
| 42 | FAN, CONVECTION |
| 43 | BLOWER, TUBE |
| 44 | TUBE, CLAMP |
| 45 | W11594227 Whirlpool Rail Mounting |
| 46 | W10516115 Whirlpool Screw |
| 47 | COVER, CONV FAN |
| 48 | W10183712 Whirlpool Bake Tray |
| 49 | W10134125 Whirlpool Retainer Clip |
| 50 | W10646923 Whirlpool Insulator |
| 51 | WPW10281322 Whirlpool Connector |
| 52 | VENTILATION, ASSEMBLY |
| 53 | CORNER, COVER |
| 54 | SIDE, FAN COVER |
| 55 | WP3368921 Whirlpool Screw |
| 56 | Electronic, Control |
