MFES8030RZ0 COOKTOP PARTS

Products

Position	Product
	Harness, Main
	OWNERS MANUAL
	QUICK START GUIDE
	TECH SHEET
	HARNESS, COOKTOP
	HARNESS, WARM ZONE
	(Right Front)
	(Right Rear)
	(Center)
	(Left Front, Left Rear)
	HARNESS, HIDDEN BAKE
	3400964 Whirlpool Oven Clip

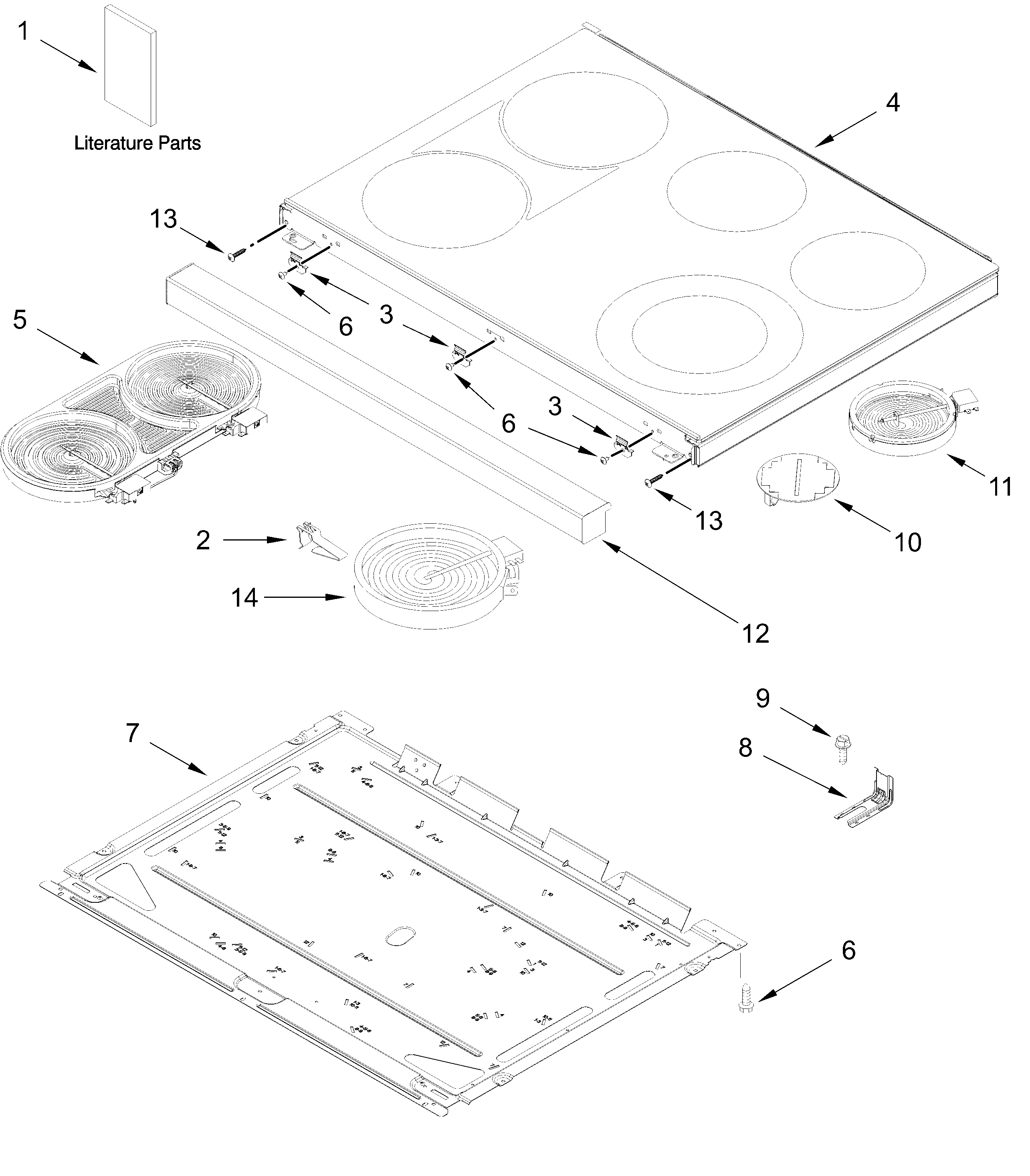

	FOLLOWING PARTS NOT ILLUSTRATED
1	Literature Parts
2	W11663556 Whirlpool Spring Assembly
3	BRACKET, COOKTOP
4	COOKTOP (BLACK (INCLUDES, COOKTOP BRACKET))
5	WPW10248259 Whirlpool Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	ELEMENT, WARM ZONE (CENTER)
11	ELMNT-SURF
12	TRIM
13	Screw
14	W11259508 Whirlpool Surface Element
