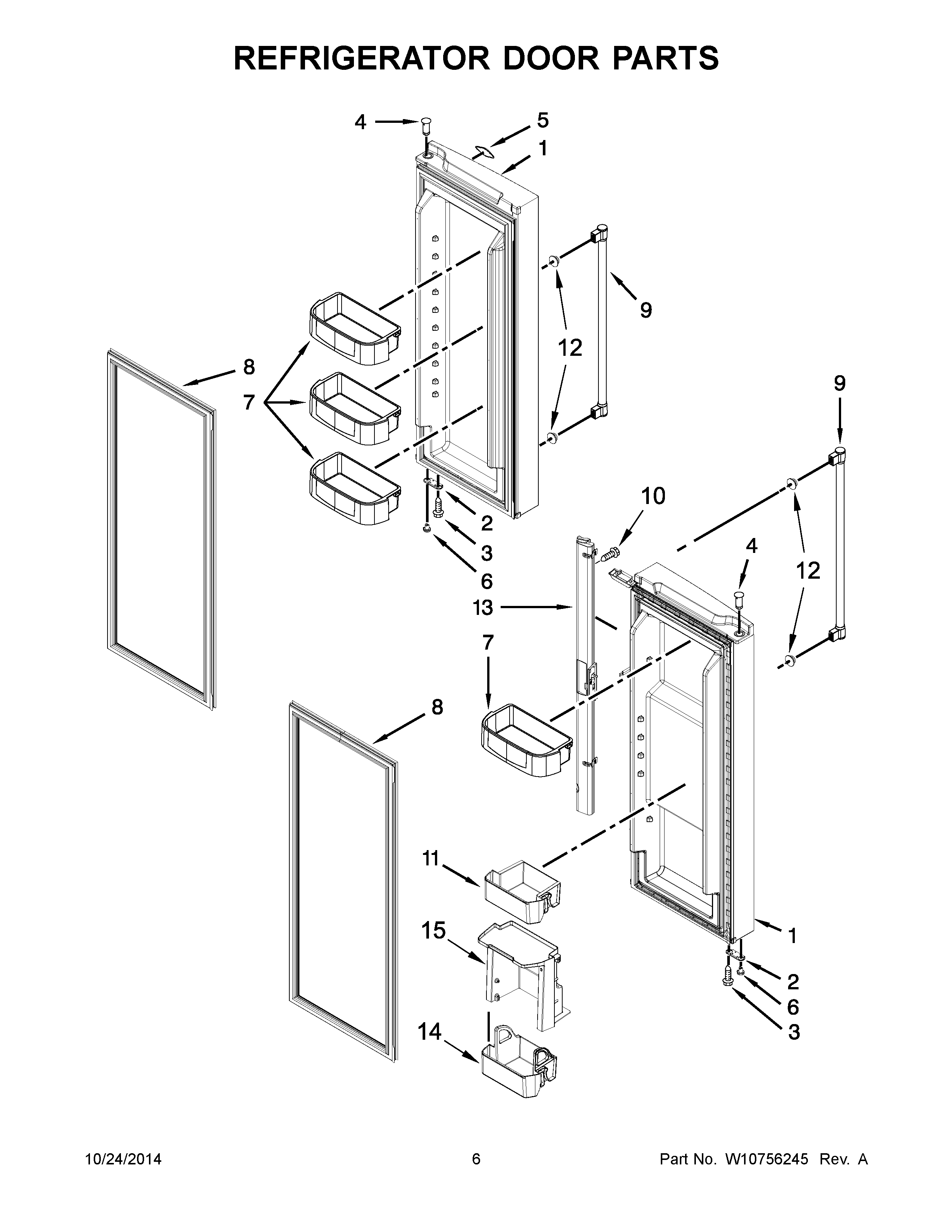

MFF2055DRE00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1D	MAY W10721548
1E	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS))
1C	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
1A	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
1	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
1B	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK))
2	MAY 2189202
3	MAY 489276
4A	MAY W10334042
4	THIMBLE (WHITE)
5	BADGE
6	CLOSURE, DOOR
7	BIN, MEDIUM
8	GASKET, DOOR (BEIGE)
8B	GASKET, DOOR (GREY)
8A	GASKET, DOOR (BLACK)
9	ASSEMBLY, HANDLE (STAINLESS)
10	Screw (4)
11	BIN, SHALLOW
12	STUD SCREW
13B	ASSEMBLY, MULLION (GREY)
13A	ASSEMBLY, MULLION (BLACK)
13	ASSEMBLY, MULLION (WHITE)
14	BIN, LOW PROFILE
15	COMPARTMENT, UTILITY
