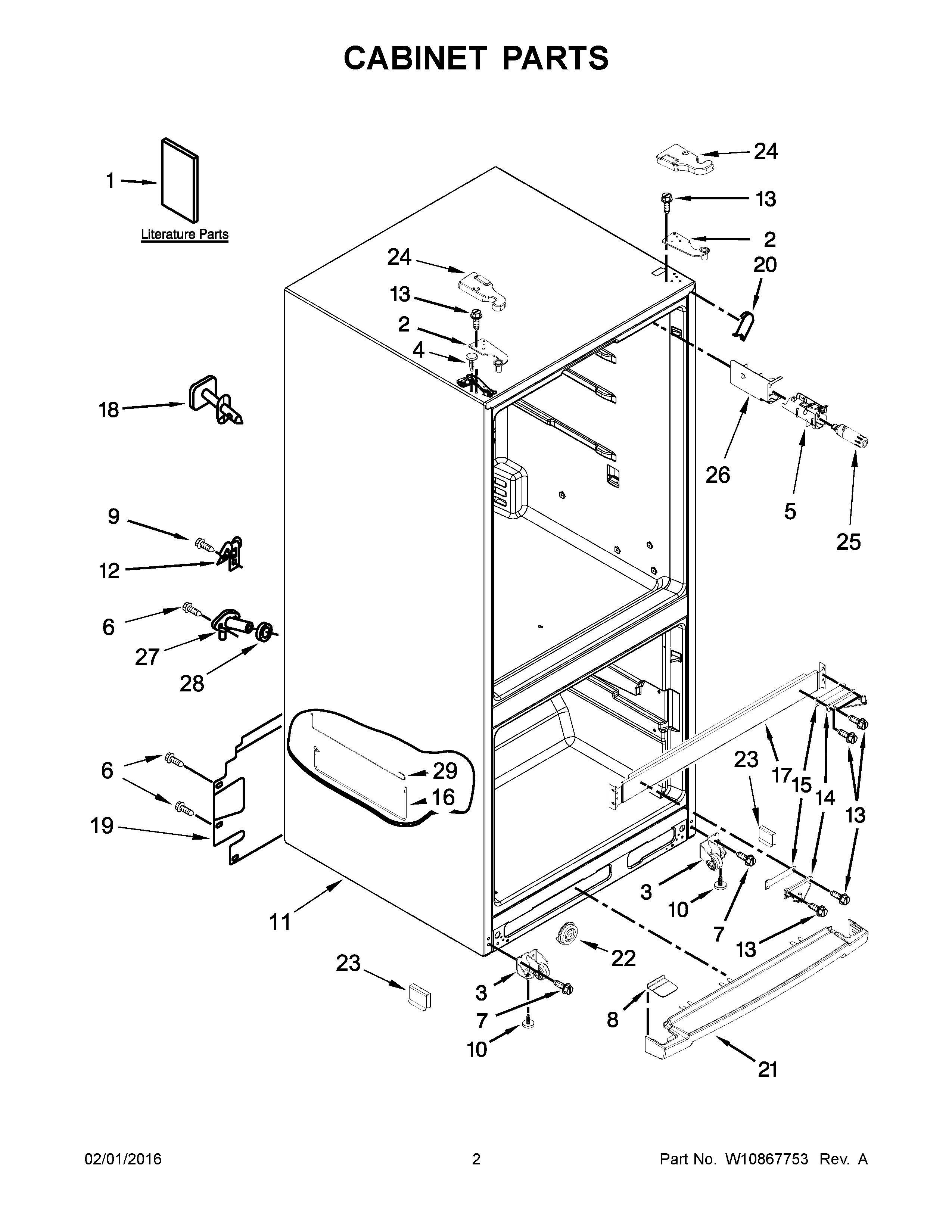

MFF2055DRE01 02 – CABINET PARTS

MFF2055DRE01 02 – CABINET PARTS

Written by

in

MFF2055DRE01 02 – CABINET PARTS

Products

PositionProduct
1BUSE AND CARE GUIDE
1AMAY W10726403
1CICEMAKER SERVICE SHEET
1MAY W10641015
2HINGE, TOP (LEFT HAND)
2AHINGE, TOP (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
4BHOLE PLUG (GREY)
4AHOLE PLUG (BLACK)
4MAY W10520304
5MAY W10346257
6MAY 2262176
8BCOVER, TOE GRILLE (GREY)
8AENDCAP, GRILLE (BLACK)
8ENDCAP, GRILLE (WHITE)
9MAY 489442
10Brake, Foot
12MAY 549193
13MAY 489497
14HINGE, CENTER (LEFT HAND)
14AHINGE, CENTER (RIGHT HAND)
15SHIM, CENTER HINGE
16MAY W10449611
18LINER (NOT A SERVICEABLE PART)
19COVER, UNIT
20ACORNER FILLER (BLACK)
20CORNER FILLER (WHITE)
20BFILLER, CORNER (GREY)
21BGRILLE (GREY)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24ECOVER, HINGE (RIGHT HAND (GREY))
24BCOVER, HINGE (LEFT HAND (BLACK))
24COVER, HINGE (LEFT HAND (WHITE))
24ACOVER, HINGE (RIGHT HAND (WHITE))
24DCOVER, HINGE (LEFT HAND (GREY))
24CCOVER, HINGE (RIGHT HAND (BLACK))
25MAY W10569758
26COVER, WATER FILTER
27FITTING, WATER TUBE
28Seal
29MAY W10449880
