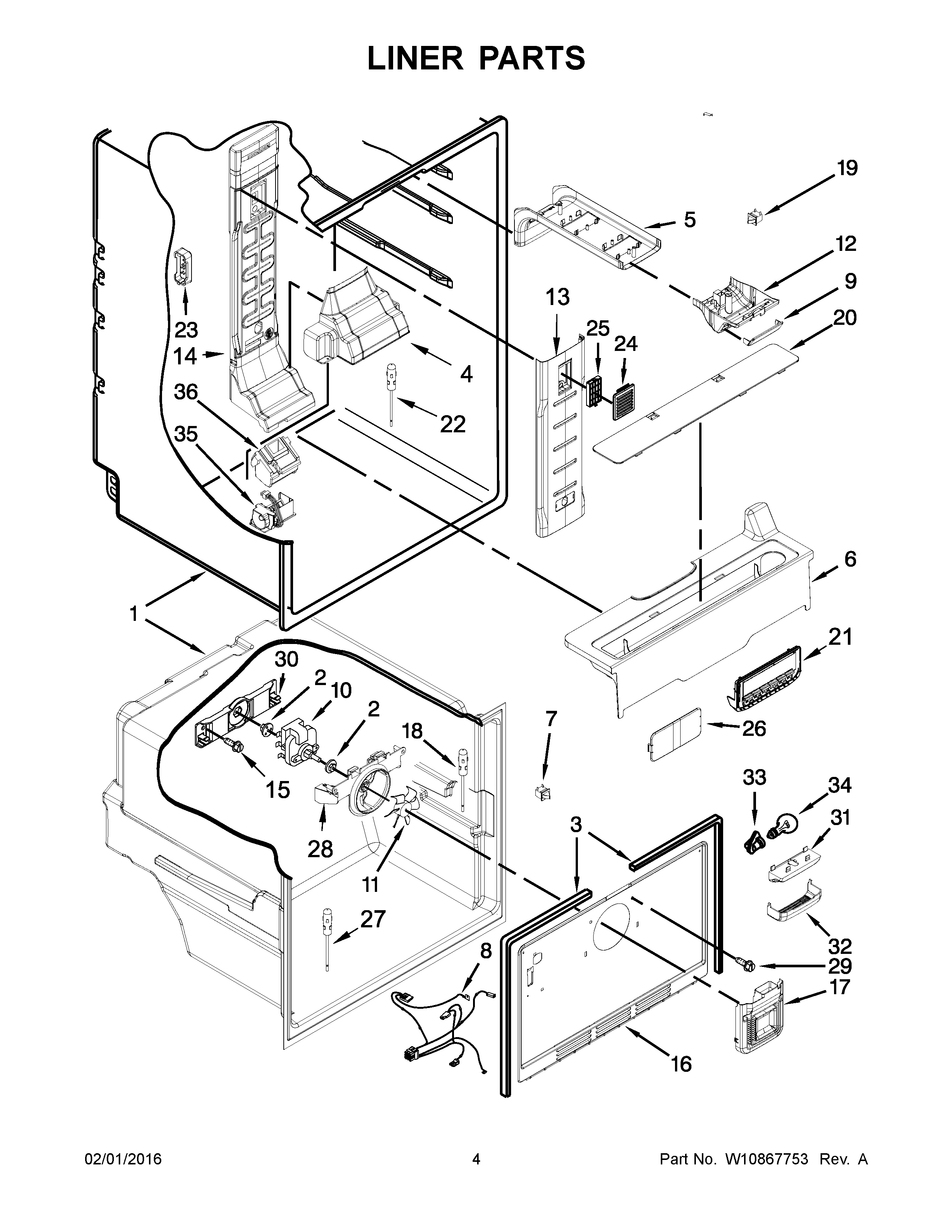

MFF2055DRE01 03 – LINER PARTSadmin2025-04-26T09:11:29+00:00MFF2055DRE01 03 – LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | MAY 2197380 |
| 3 | GASKET, EVAPORATOR COVER |
| 4 | HOUSING, DAMPER |
| 5 | HOUSING, LIGHT |
| 6 | CONTAINER, WATER RESERVOIR |
| 7 | MAY 12466105 |
| 8 | ASSEMBLY, FREEZER WIRE |
| 9 | MAY W10360550 |
| 10 | MOTOR, FAN |
| 11 | MAY 2200509 |
| 12 | MAY W10435577 |
| 13 | TOWER, MULTIFLOW AIR |
| 14 | ASSEMBLY, MULTIFLOW |
| 15 | Screw |
| 16 | COVER, EVAPORATOR |
| 17 | TOWER, FREEZER |
| 18 | THERMISTOR, EVAPORATOR |
| 19 | MAY 1118894 |
| 20 | COVER, WATER RESERVOIR |
| 21 | MAY W10689393 |
| 22 | THERMISTOR, REFRIGERATOR |
| 23 | COVER, THERMISTOR |
| 24 | GRILLE, AIR FILTER BOTTOM |
| 25 | FILTER, AIR |
| 26 | CUP, SCREW |
| 27 | THERMISTOR, FREEZER |
| 28 | MAY W10321162 |
| 29 | MAY 489478 |
| 30 | Bracket, Fan Back |
| 31 | HOUSING, FREEZER LIGHTING |
| 32 | LENS, LIGHT |
| 33 | SOCKET, LIGHT |
| 34 | MAY W10809515 |
| 35 | DAMPER, ELECTRONIC CONTROL |
| 36 | COVER, DAMPER HOUSING |
