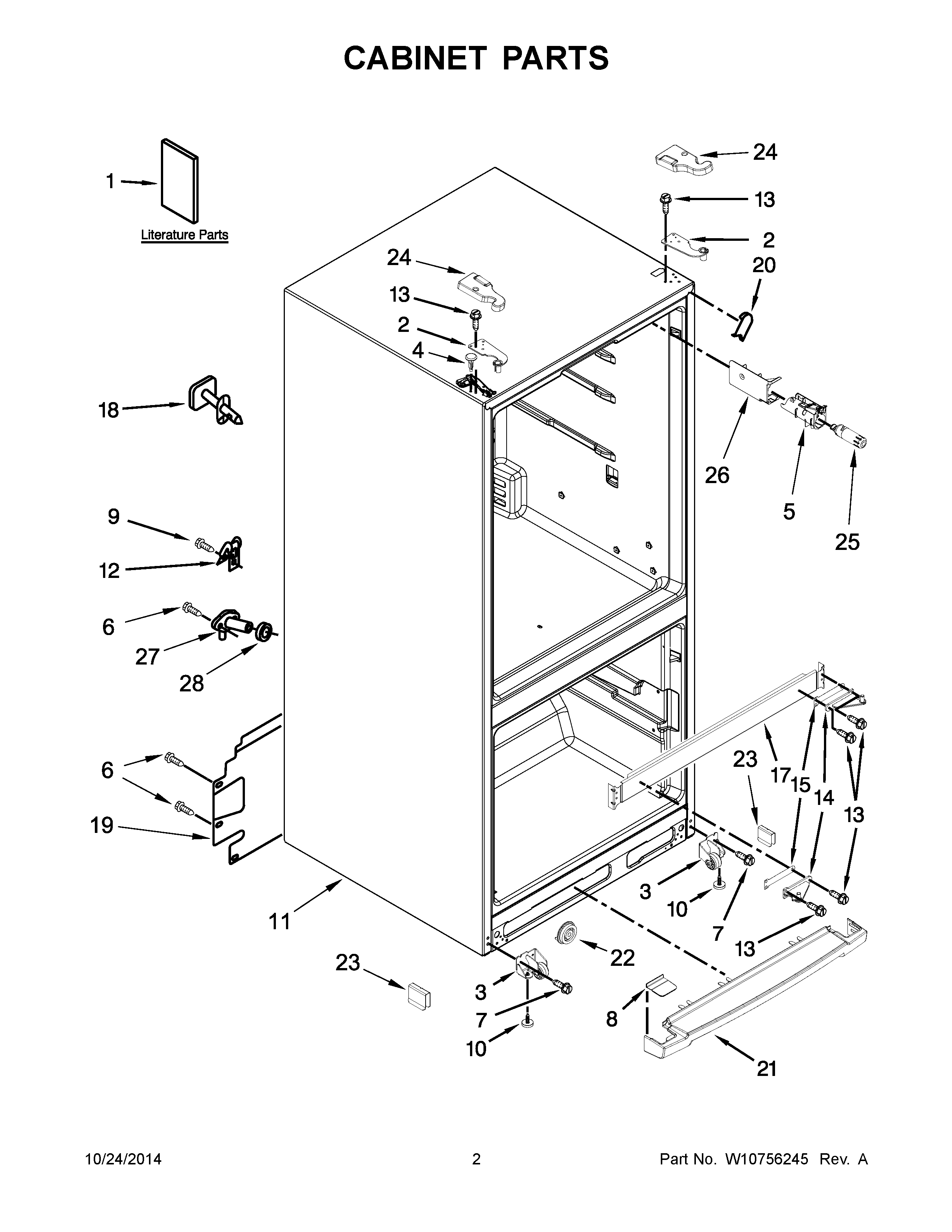

MFF2055DRH00 02 – CABINET PARTS

MFF2055DRH00 02 – CABINET PARTS

Written by

in

MFF2055DRH00 02 – CABINET PARTS

Products

PositionProduct
1MAY W10596092
1BUSE AND CARE GUIDE
1CICEMAKER SERVICE SHEET
1AMAY W10726403
2HINGE, TOP (LEFT HAND)
2AHINGE, TOP (RIGHT HAND)
3AROLLER, FRONT (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
4AHOLE PLUG (BLACK)
4MAY W10520304
4BHOLE PLUG (GREY)
5MAY W10346257
6MAY 2262176
8ENDCAP, GRILLE (WHITE)
8AENDCAP, GRILLE (BLACK)
8BCOVER, TOE GRILLE (GREY)
10Brake, Foot
12MAY 549193
13MAY 489497
14AMAY W10521409
14MAY W10521411
15SHIM, CENTER HINGE
16MAY 489442
18LINER (NOT A SERVICEABLE PART)
19COVER, UNIT
20BFILLER, CORNER (GREY)
20ACORNER FILLER (BLACK)
20CORNER FILLER (WHITE)
21BGRILLE (GREY)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24ECOVER, HINGE (RIGHT HAND (GREY))
24COVER, HINGE (LEFT HAND (WHITE))
24ACOVER, HINGE (RIGHT HAND (WHITE))
24BCOVER, HINGE (LEFT HAND (BLACK))
24CCOVER, HINGE (RIGHT HAND (BLACK))
24DCOVER, HINGE (LEFT HAND (GREY))
25MAY W10569758
26COVER, WATER FILTER
27FITTING, WATER TUBE
28Seal
