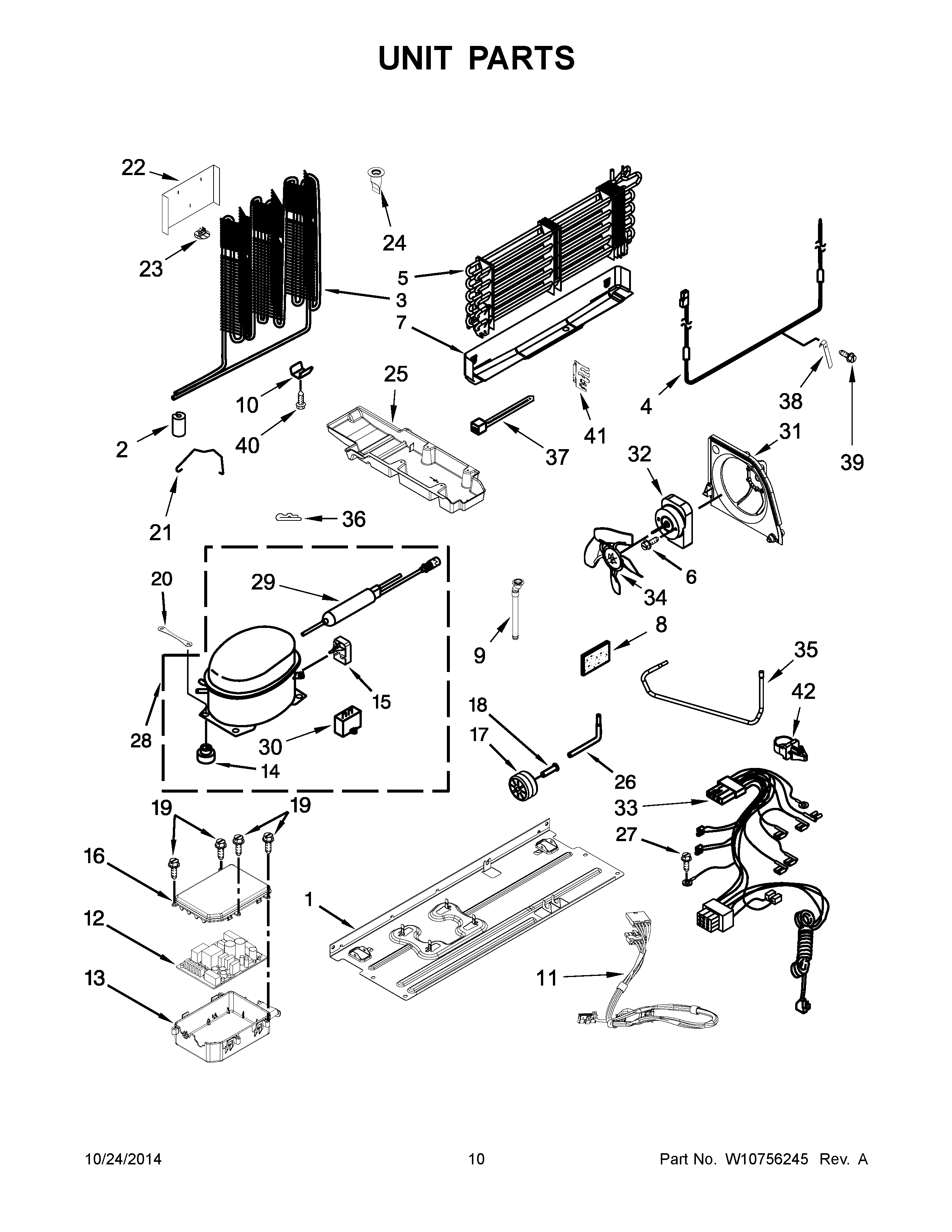

MFF2055DRH00 06 – UNIT PARTS

MFF2055DRH00 06 – UNIT PARTS

Written by

in

MFF2055DRH00 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10300116
2	GROMMET, CONDENSER
3	CONDENSER
4	HEATER, DEFROST
5	ASSEMBLY, EVAPORATOR
6	MAY 8533961
7	MAY W10314195
8	MAY 2215468
9	TUBE, DRAIN
10	CLIP, CONDENSER
11	ASSEMBLY, LOW VOLTAGE WIRE
12	MAY W10547719
13	MAY W10370696
14	GROMMET
15	DEVICE, START
16	COVER, ELECTRONIC CONTROL
17	MAY W10475495
18	MAY 2179826
19	MAY 8533859
20	MAY W10236396
21	MAY W10174384
22	COVER, CONDENSER BOTTOM
23	CLIP, BOTTOM COVER
24	VALVE, DRAIN
25	MAY W10466213
26	MAY VS20001
27	MAY 488500
28	MAY W10445423
29	DRIER
30	CAPACITOR
31	MAY 2315541
32	MAY W10508362
33	ASSEMBLY, UNIT WIRE
34	MAY W10139483
35	TUBE, SUCTION
36	MAY 1114718
37	MAY 2263990
38	MAY 2258429
39	MAY 489478
40	MAY 8281232
41	BRACKET, EVAPORATOR
42	Clip, Harness (1)
