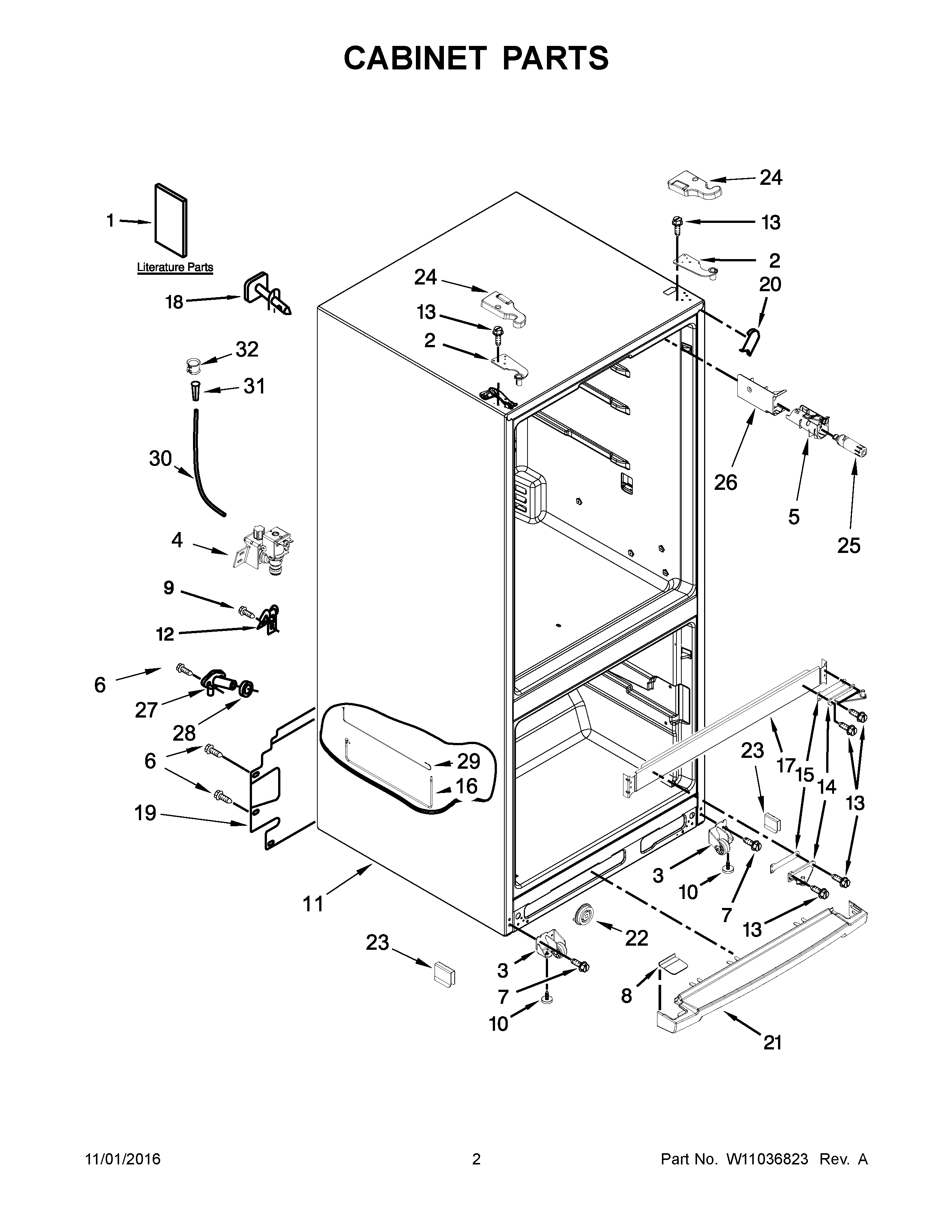

MFF2055FRB00 02 – CABINET PARTS

Products

PositionProduct
1CICEMAKER SERVICE SHEET
1MAY W10641015
1BUSE AND CARE GUIDE
1AMAY W10898062
2HINGE, TOP (LEFT HAND)
2AHINGE, TOP (RIGHT HAND)
3AROLLER, FRONT (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
4MAY W10498995
5MAY W10346257
6MAY 2262176
8ENDCAP, GRILLE (WHITE)
8AENDCAP, GRILLE (BLACK)
9MAY 489442
10Brake, Foot
12MAY 549193
13MAY 489497
14AHINGE, CENTER (RIGHT HAND)
14HINGE, CENTER (LEFT HAND)
15SHIM, CENTER HINGE
16MAY W10449611
18LINER (NOT A SERVICEABLE PART)
19COVER, UNIT
20ACORNER FILLER (BLACK)
20CORNER FILLER (WHITE)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24CCOVER, HINGE (RIGHT HAND (BLACK))
24BCOVER, HINGE (LEFT HAND (BLACK))
24ACOVER, HINGE (RIGHT HAND (WHITE))
24COVER, HINGE (LEFT HAND (WHITE))
25MAY W10569758
26COVER, WATER FILTER
27FITTING, WATER TUBE
28Seal
29MAY W10449880
30TUBE, WATER
31MAY 2181939
32CLAMP, TUBE
