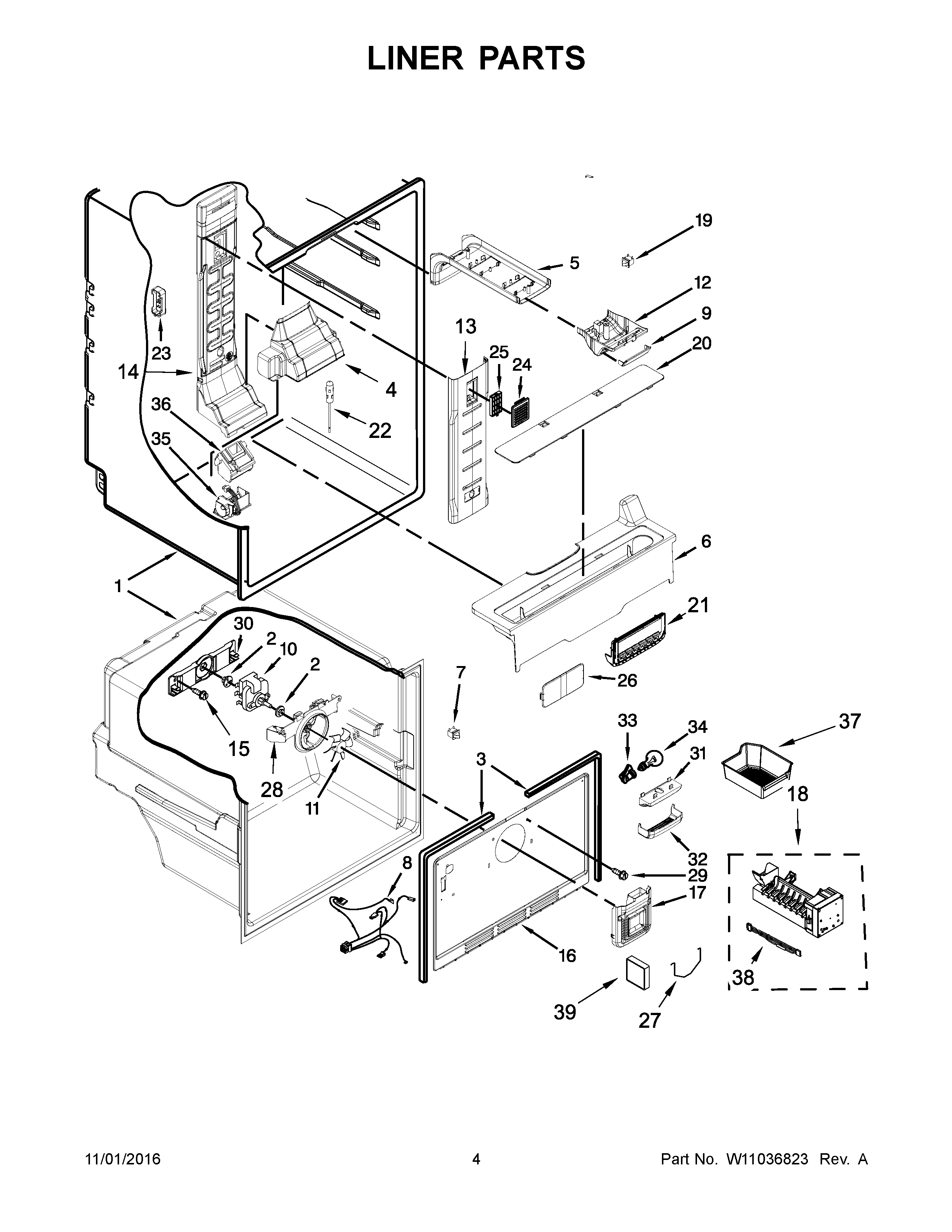

MFF2055FRB00 03 – LINER PARTS

MFF2055FRB00 03 – LINER PARTS

Written by

in

MFF2055FRB00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	GASKET, EVAPORATOR COVER
4	HOUSING, DAMPER
5	HOUSING, LIGHT
6	CONTAINER, WATER RESERVOIR
7	MAY 12466105
8	ASSEMBLY, FREEZER WIRE
9	MAY W10360550
10	MOTOR, FAN
11	MAY 2200509
12	MAY W10435577
13	TOWER, MULTIFLOW AIR
14	ASSEMBLY, MULTIFLOW
15	Screw
16	COVER, EVAPORATOR
17	TOWER, FREEZER
18	ASSEMBLY, ICEMAKER
19	MAY 1118894
20	COVER, WATER RESERVOIR
21	MAY W10689393
22	THERMISTOR
23	COVER, THERMISTOR
24	GRILLE, AIR FILTER BOTTOM
25	FILTER, AIR
26	CUP, SCREW
27	ARM, SHUT OFF
28	MAY W10321162
29	MAY 489478
30	Bracket, Fan Back
31	HOUSING, FREEZER LIGHTING
32	LENS, LIGHT
33	SOCKET, LIGHT
34	BULB, LIGHT
35	DAMPER, ELECTRONIC CONTROL
36	COVER, DAMPER HOUSING
37	PAN, ICE
38	ASSEMBLY, ICE MAKER WIRE
39	COVER
