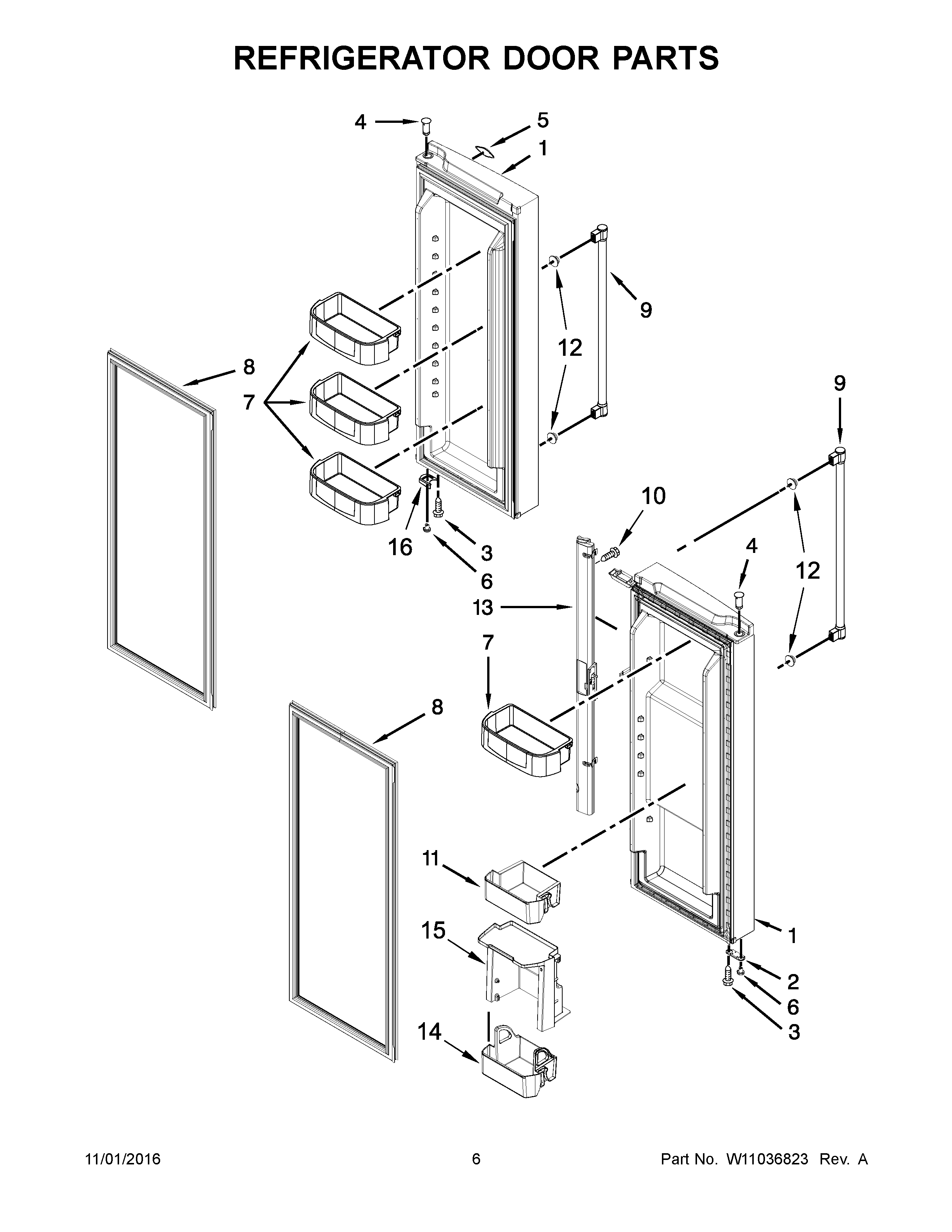

MFF2055FRW00 04 – REFRIGERATOR DOOR PARTS

MFF2055FRW00 04 – REFRIGERATOR DOOR PARTS

Written by

in

MFF2055FRW00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
1BDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK))
1CDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
1ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
2MAY 2189202
3MAY 489276
4MAY W10334042
5BADGE
6CLOSURE, DOOR
7BIN, MEDIUM
8AGASKET, DOOR (BLACK)
8GASKET, DOOR (BEIGE)
9MAY W10891380
9AMAY W10891379
10Screw (4)
11BIN, SHALLOW
12STUD SCREW
13ASSEMBLY, MULLION (WHITE)
13AASSEMBLY, MULLION (BLACK)
14BIN, LOW PROFILE
15COMPARTMENT, UTILITY
16BRACKET, DOOR STOP
