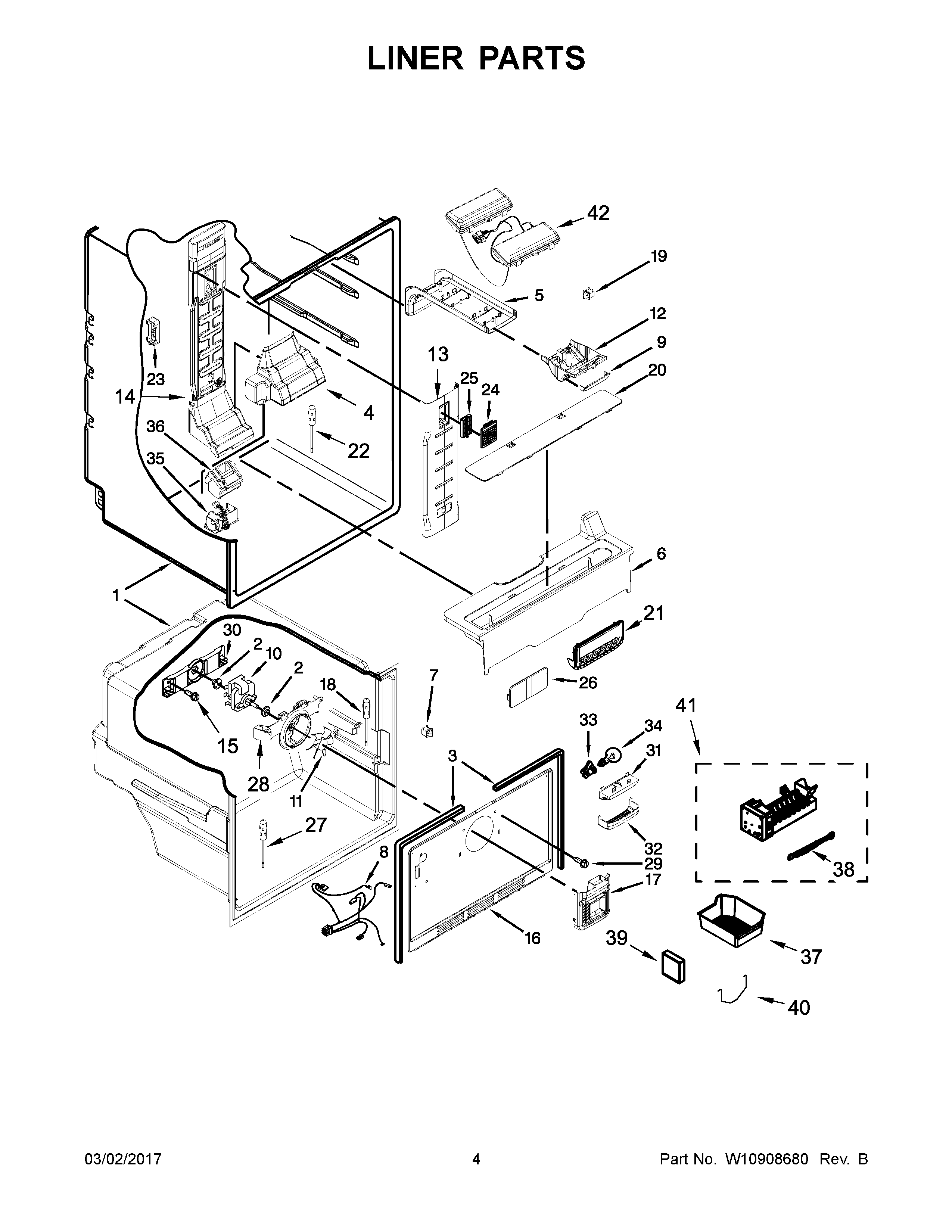

MFF2055FRZ00 03 – LINER PARTS

MFF2055FRZ00 03 – LINER PARTS

Written by

in

MFF2055FRZ00 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2197380
3GASKET, EVAPORATOR COVER
4HOUSING, DAMPER
5HOUSING, LIGHT
6CONTAINER, WATER RESERVOIR
7MAY 12466105
8ASSEMBLY, FREEZER WIRE
9MAY W10360550
10MOTOR, FAN
11MAY 2200509
12MAY W10435577
13TOWER, MULTIFLOW AIR
14ASSEMBLY, MULTIFLOW
15Screw
16COVER, EVAPORATOR
17TOWER, FREEZER
18THERMISTOR
19MAY 1118894
20COVER, WATER RESERVOIR
21MAY W10689393
22THERMISTOR
23COVER, THERMISTOR
24GRILLE, AIR FILTER BOTTOM
25FILTER, AIR
26CUP, SCREW
27THERMISTOR, FREEZER
28MAY W10321162
29MAY 489478
30Bracket, Fan Back
31HOUSING, FREEZER LIGHTING
32LENS, LIGHT
33SOCKET, LIGHT
34BULB, LIGHT
35DAMPER, ELECTRONIC CONTROL
36COVER, DAMPER HOUSING
37PAN, ICE
38ASSEMBLY, ICE MAKER WIRE
39COVER
40ARM, SHUT OFF
41ASSEMBLY, ICEMAKER
42MAY W10536361
